Modern audio equipment offers today’s listeners conveniences that may have seemed impossible several decades ago. A compact modern integrated amplifier or receiver can provide access to millions of songs through wireless or BlueTooth connectivity, digital-to-analog signal processing, app connection and control, headphone amplification, or enough power to drive an entire stereo system.
Despite how the audio gear landscape has evolved, vintage audio equipment continues to attract boht collectors and music lovers alike. Large analog controls, illuminated tuning dials, wood cabinets, physical switches, and substantial overengineering and construction create a unique experience that modern pieces of equipment struggle to replicate.
The Pioneer SX-980 is an excellent example of a high-end vintage piece that can still hold its own against its modern day counterparts. Introduced in 1978, the SX-980 is a powerful AM/FM stereo receiver built during one of the most celebrated periods in Japanese hi-fi manufacturing history. It combines a tuner, preamplifier, power amplifier, phono stage, physical controls, and extensive system connectivity all inside a phenomenal looking chassis made of wood.
The Golden Age of Stereo Receivers
During the 1970s, the stereo receiver was the center of many home audio systems. Instead of purchasing separate amplification and radio components, listeners could connect a turntable, tape deck, reel-to-reel, and other sources to one integrated unit powering the speakers.
Manufacturers competed with one another by offering increasingly powerful receivers with larger transformers, more elaborate tuner plates, improved specifications, and visually distinctive front paneling. This included incredible design for the meters, machined knobs, toggle switches, brushed-aluminum faceplates, and wood cabinets, which in turn became defining features of the era.
The Pioneer SX Series became one of the most recognizable receiver families from the late 70s into the 1980s. The smaller models in the series were regarded as substantial, but still relatively manageable and accessible options, offering serious power output without reaching the enormous size, weight, or cost of the SX-1980. The SX-1980 was considered the king of the monster receivers generating between 270 watts per channel, weighing nearly 80 lbs, and cost approximately $1,295, at the time.
Introducing the Pioneer SX-980

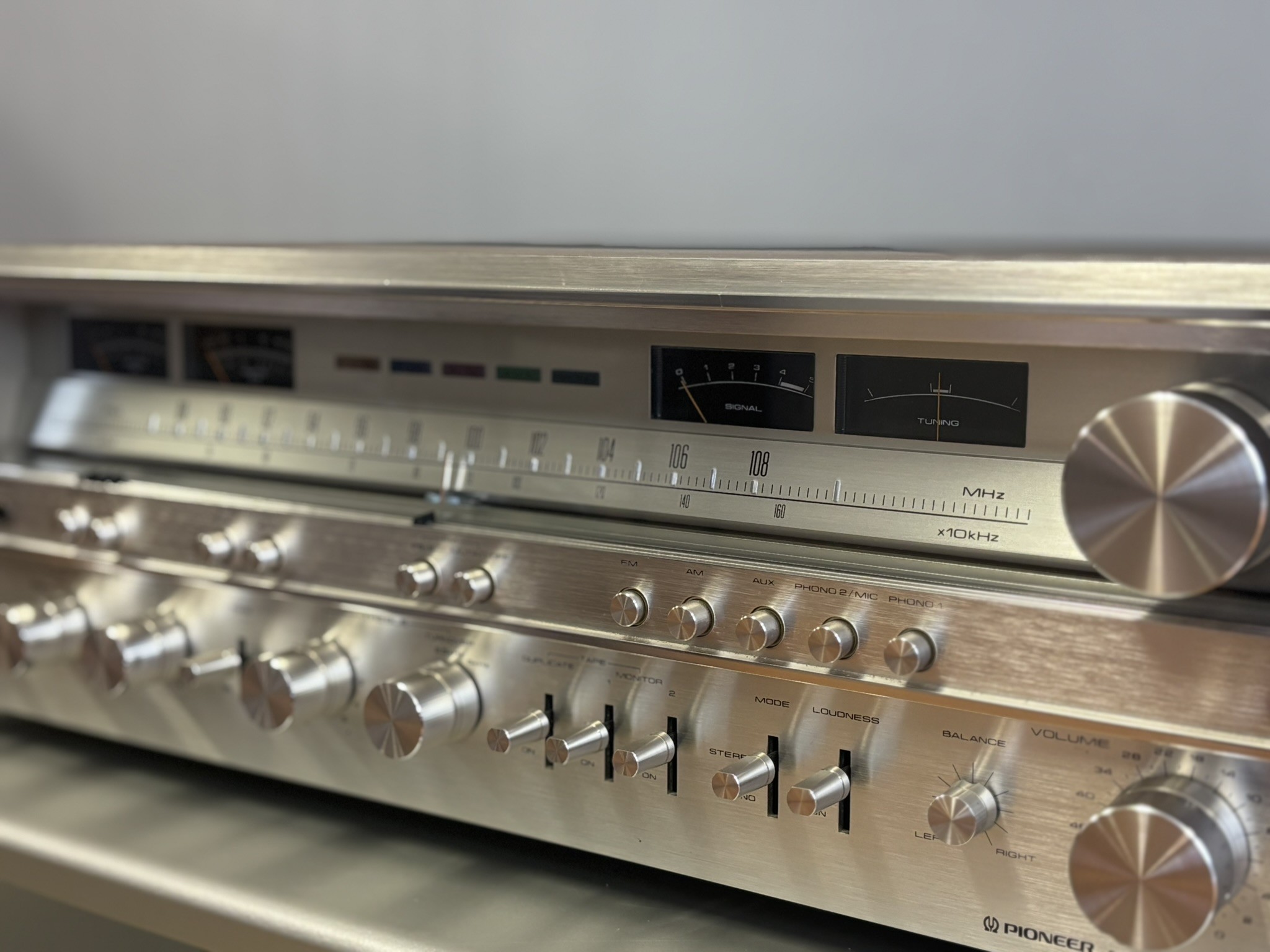

The SX-980 was manufactured from 1978 through 1980. It features the classic Pioneer aesthetic associated with that timeframe, including a silver aluminum faceplate, illuminated analog tuning dial, twin power meters, large tuning and volume controls, and a detailed wood-veneered cabinet.
Internally, the SX-980 uses a direct Class AB power-amplifier design and was engineered to serve as the control center for a complete stereo system including AM/FM radio, record playback, microphone use, auxiliary sources, tape-deck inputs, and separate preamplifier and power-amplifier connections.
That breadth of capability is one reason vintage receivers like the SX-980 still remain useful into present day. Although designed before digital streaming and home networking, it continues to provide the analog foundation needed for both vintage and modern sources.
Serious Power for a Vintage System
Pioneer rated the SX-980 at 80 watts per channel into 8 Ohms from 20Hz to 20kHz, with only 0.05% total harmonic distortion. And testing reveals that the unit is capable of achieving approximately 90 watts per channel at 8 ohms under typical listening conditions. Products tended toward over-engineered during this time frame.
80-90 watts per channel is substantial and continues to be compatible with many modern bookshelf and floorstanding speakers. When paired with efficient (90 dB sensitivity or higher) speakers operating at 8 ohms, the SX-980 should have more than enough output for most conventional living rooms, dedicated stereo spaces, and vintage speaker systems.
The SX-980’s substantial chassis and roughly 41-pound weight reflect the physical size of its transformer, heat-dissipation system, mechanical construction, and internal components. Vintage receivers often feel dramatically different from compact modern electronics because much of their engineering is visible on the outside vs modern electronics which minimize the visible features in favor of LCD screens and small buttons. However, it can be surprising how many electronics engineers from the 70s and 80s were able to cram into such a small volume.
Vintage means Analog Control
The front panel is one of the SX-980’s most prominent features and why it continues to hold modern appeal. Instead of hiding the receivers functions inside menus, Pioneer provided direct access to the major controls. This asesthetic element gives vintage audio a unique and tangible feel.
The SX-980 includes bass and treble adjustment with selectable crossover frequencies, high- and low-frequency filters, speaker selection, input switching, tuning controls, and dual analog power meters. Additionally, these receivers typically have 6 dB-per-octave high and low filters along with adjustable tone-control.
These controls allow the listener to adjust the playback in real time without using software or an external equalizer. The filters can also be useful with older recordings, imperfect radio broadcasts, tape noise, low-frequency rumble, or speakers that need mild tonal correction.
For vintage enthusiasts, this immediate and tactile physical control is a major part of vintage audio collection. Every function has a dedicated switch or knob, making the receiver’s capabilities more intuitive without an app or display menu.
Built for Records, Radio, and Tape
The SX-980 was designed when vinyl records, FM radio, and cassette or reel-to-reel tape were central listening audio formats instead of the digital playback that listeners have become accustomed to in modern times.
The input sensitivity specifications include a dedicated moving-magnet (MM) phono stage, microphone input, and conventional line-level inputs as well. The SX-980 receiver also supports tape recording and monitoring functionality, allowing multiple recording components to be connected in the system.
The built-in phono stage is especially relevant today because vinyl playback has seen a dramatic resurgence in popularity and remains a key reason people assemble vintage systems. A turntable with a compatible MM cartridge can be connected directly without requiring a separate phono preamplifier. Brains and brawn, receivers from this generation have it all!
The analog radio tuner provides another part of the traditional receiver experience. Slowly moving the large tuning control across the illuminated dial is very different from selecting a preset on a digital interface or scanning through digital channels. Whether that difference is better is a personal preference, but the SX980 has an undeniable tactile and visual presentation that feels different from digital equipment.
Compatible with Modern Equipment
Owning a vintage receiver or integrated amplifier does not require creating a completely vintage system. The SX-980 can also be used with modern digital sources like a network streamer, Bluetooth receiver, external DAC, or computer interface which can be connected to one of its line-level inputs.
In that arrangement, the modern component handles the streaming and digital conversion while the Pioneer controls volume, source selection, and speaker amplification. With this setup listeners get the best of both worlds.
The receiver also provides separate preamplifier outputs and power-amplifier inputs. Those connections allow the preamp and power-amplifier sections to be isoalted for testing or for integration with specific external components. This feature adds flexibility that is not always available on contemporary integrated amplifiers.
However, care must still be taken when adding modern devices. A vintage receiver should receive a standard analog line-level signal through the appropriate input and speaker-level outputs should never be connected directly to a line-level input.
How Might a Pioneer SX-980 Sound
It is tempting to describe every vintage receiver as warm, smooth, or powerful. In reality, the sound of an SX-980 (or other vintage receiver) depends heavily on its condition and the speakers it is paired with.
A properly restored unit may sound very different from one in original condition operating with aging capacitors, oxidized switches, incorrect bias settings, noisy controls, or previous repairs. The connected speakers, room, source components, and recording quality will also shape the final presentation.
The original specifications of the SX-930 indicate a broad frequency response and low rated distortion for its era and the published specifications list 80 watts per channel into 8 Ohms, 0.05% total harmonic distortion, and a frequency response extending well beyond the audible range under normal listening conditions. However, this doesn’t necessarily mean that everything will perform as expected for a compatible modern day option with the same specifications.
The numbers suggest that the SX-980 was designed as a serious high-fidelity component rather than merely an attractive piece of furniture. Nevertheless, specifications from the late 1970s do not guarantee that an individual receiver still performs to the same standards almost 50 years later. That distinction is critical when reviewing vintage equipment. It’s important to keep in mind that you are evaluating both the original specifications against the current condition of a component and on an individual basis.
What to Know Before Buying Vintage Equipment
A vintage receiver should be evaluated and reviewed more carefully than a new amplifier. Cosmetic condition is important, but internal health matters more. Begin by checking whether both channels operate consistently through all inputs. Listen for static, intermittent sound, distortion, channel imbalance, and/or hum.
Operate every switch and control. Dirty contacts can create noise or cause channels to disappear. Not every problem can be solved with contact cleaner and problems with contacts may need repair or replacement. Confirm that the tuner, meters, lamps, phono inputs, tape loops, speaker outputs, headphone connection, and preamp-to-power-amp channels function properly.
The wood cabinet and faceplate should also be inspected for water damage, deep scratches, missing lettering, bent controls, broken switches, or replacement parts. Cosmetic components can actually be more difficult to source than common electronic service parts.
Ask whether the receiver has been serviced and request documentation. “Restored” and “serviced” are not interchangeable terms. A basic cleaning is different from replacing aging components, rebuilding power-supply sections, checking transistor reliability, setting bias and DC offset, and verifying rated performance under load.
Even though many vintage service manuals contain circuit diagrams, parts information, adjustment procedures, disassembly instructions, and tuner and amplifier alignment information, major service should still be entrusted to someone experienced with vintage audio equipment.
Restoration Versus Original Condition
Collectors sometimes prefer equipment that remains completely original, particularly when it is cosmetically exceptional. From an operational perspective, however, originality is not always the same as reliability.
Electronic parts age even when a receiver is rarely used. Electrolytic capacitors can deteriorate, switches may oxidize, solder joints can weaken, lamps fail, and certain semiconductors may become noisier or more unstable as they age.
A thoughtful restoration attempts to preserve the receiver’s original character and sound profile while improving safety and reliability. That may involve replacing failed or age-sensitive components, cleaning controls, repairing damaged circuit boards, adjusting the amplifier settings, and confirming that safety systems function correctly.
Poor restoration work can be worse than no restoration at all. This includes the installation of incorrect parts, careless soldering, unnecessary modifications, or undocumented changes which may reduce reliability and make future service that much more difficult and expensive. Sometimes, the ideal purchase is often a cosmetically clean model that has been evaluated and serviced by a technician familiar with the model rather than a restored model from an enthusiastic novice.
Choosing Speakers for a Vintage Receiver
A vintage receiver like the SX-980 can be paired with both vintage and modern passive speakers, but impedance and efficiency, as well as current functional condition, should be considered carefully when selecting the speakers.
Vintage buyers should always follow the impedance guidance printed in the receiver’s manual and described in its operating instructions. It’s important to note that difficult speakers, very low impedance, damaged crossover networks, or excessive listening levels can place additional and unwanted stress on a vintage amplifier.
Focusing on efficient floorstanding or bookshelf speakers are often a natural match with vintage receivers. They allow the receiver to produce satisfying volume without operating near its limits. Addtionally, the final choice should also depend on more typical factors like room size, listening distance, preferred volume, bass expectations, and budget.
Why Vintage Products Still Matter
The Pioneer SX-980 appeals to several different groups of music lovers. Vintage collectors appreciate its position within Pioneer’s classic receiver lineup. Design enthusiasts are drawn to its illuminated dial, analog meters, wood cabinet, and balanced front-panel layout. Vinyl listeners value its integrated phono capability, while hobbyists enjoy its serviceable construction and extensive controls.
Most importantly, it can still function as the heart of a modern audio system for any listener. With suitable maintenance, the SX-980 can connect a turntable, tape deck, streamer, DAC, and multiple speaker configurations while providing substantial stereo power with reliable AM/FM reception.
Modern equipment is generally more compact, efficient, convenient, and feature-rich. However, vintage equipment offers something different with its tangible connection to the history of home audio and a physical interaction with the listening process.
Final Thoughts
The Pioneer SX-980 as an example captures much of what makes vintage audio equipment collecting compelling. It is large without being unmanageable, powerful without being excessive, visually distinctive without being ostentacious, and flexible enough to remain useful without certain features being obsolete.
The 80-watt-per-channel amplifier, analog tuner, MM phono stage, tape deck inputs, tone controls, speaker switching, and separate preamp and power-amplifier connections made it a complete stereo control center when it was introduced. Those same capabilities continue to make it compatible with modern equipment.
Purchasing a vintage receiver should not be approached in the same way as buying a modern receiver. Condition, maintenance history, restoration quality, parts availability, and access to a qualified technician are all part of the purchasing experience and ultimately, decision.
For the right listener, those requirements are not disadvantages. They are a part of what makes vintage audio a personal journey. The Pioneer SX-980 is more than a reminder of how stereo systems used to be or once looked because it is an excellent example of how thoughtful engineering, tactile design, and the enjoyment of music can remain relevant decades into the future!
