ATI Amplifier Technologies - AT3300 - Class AB Power Amplifier
BUILT-TO-ORDER: Please allow approximately 2 weeks for processing and shipping. For more information, please send us a message. Or, call 877-370-1972. Thank you.

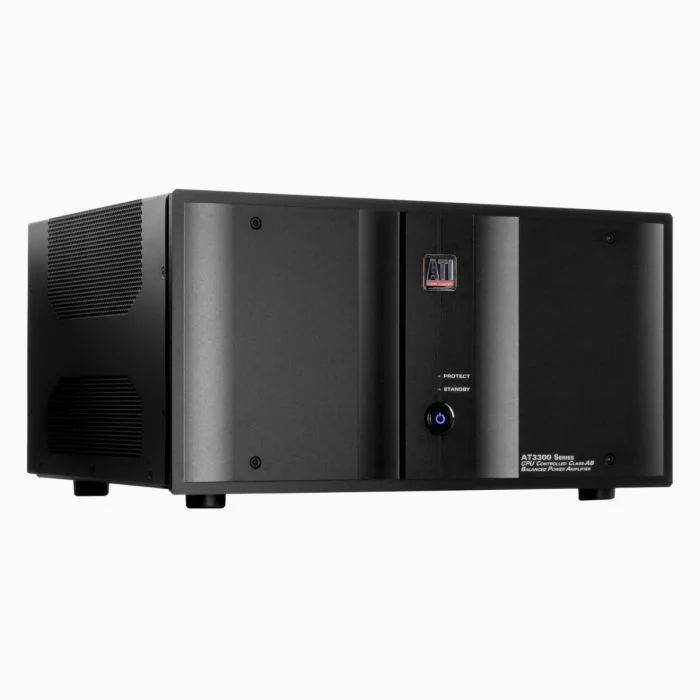

ATI Amplifier Technologies - AT3300 Series - Class AB Power Amplifier
Are you tired of audio amplifiers that compromise sound quality for power? Look no further than the ATI Amplifier Technologies AT3300 Class AB Amplifier. This pure balance series amplifier is the pinnacle of audio engineering, offering unparalleled power and clarity.
At the heart of the AT3300 lies its innovative Class AB amplifier design, which delivers the power and efficiency of a Class B amplifier while maintaining the sound quality of a Class A amplifier. This means you can enjoy the best of both worlds, without any compromises.
But the AT3300 doesn't just stop at its advanced design - it also boasts a range of features to optimize your listening experience. With a dual-mono power supply, balanced and unbalanced inputs, and a high-current output stage, this amplifier ensures that every detail of your audio is faithfully reproduced. Whether you're a music enthusiast or a professional audio engineer, the ATI Amplifier Technologies AT3300 Class AB Amplifier is the perfect choice for uncompromising sound quality.
Note: We can only ship to addresses within the USA. Visit ATI-AMP.com for a list of International Dealers.
FEATURES:
- Dual-mono power supply
- Balanced and unbalanced inputs
- High-current output stage
- 12-volt trigger
- Rack-mountable design
SPECIFICATIONS:
Full Bandwidth Power Output (8 Ohms): |
330W RMS This Rating not tested under the FTC Standard |
Full Bandwidth Power Output (4 Ohms): |
425W RMS This Rating not tested under the FTC Standard |
Number of Channels: | 2 - 8 |
Input Sensitivity (8 Ohms): | 2.01V |
Frequency Response: | 20Hz - 20kHz |
Phase Response (+5° to -15°): | 20Hz - 20kHz @ 1W |
SNR: | >125dB |
THD + Noise (20Hz - 20kHz): | <0.05% |
Intermodulation Distortion: | <0.03% |
Recommended Load Impedance: | 4 Ohms - 16 Ohms |
Power Bandwidth FTC (20Hz - 40kHz): | +0,-3 dB |
Damping Factor: | >400 |
Adjacent Channel Crosstalk (200Hz - 10kHz): | >-80dB |
Skipped Channel Crosstalk (200Hz - 10kHz): | >-90dB |
Bank to Bank Channel Crosstalk (200Hz - 10kHz): | >-100dB |
RCA Input Gain (±0.2dB): | 28.2dB |
XLR Input Gain (±0.2dB): | 28.2dB |
Slew Rate: | >50V/μS |
Input Impedance: | 20k Ohms |
Output DC Offset: | <±5mV |
Dimensions: | H 9.8" x W 17" x D 17.6" (H 248mm x W 432mm x D 448mm) |
Weight: | 101.2 lbs (45.9kg) |
