ViaBlue - EPC-2 - 90° DIN to XLR Phono Cable w/Ground (Pair)
SKU
VB-EPC-2-Phono-90-DIN-XLR
Please allow up to 1 - 2 weeks for processing and shipping. For more information please send us a message. Or, call 877-370-1972. Thank you.
No further discounts or coupons apply.
FREE delivery OVER $35 (USA ONLY)
30-day return

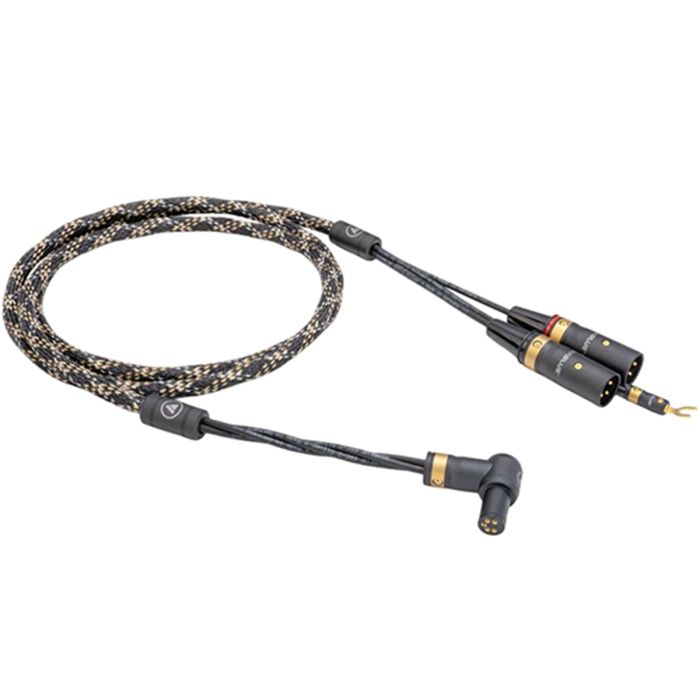

ViaBlue - EPC-2 - 90° DIN to XLR Phono Cable w/Ground (Pair)
The ViaBlue EPC-2 5-PIN 90 degree DIN to XLR w/ Ground Phono Cable is built for the delicate signal path between a turntable and phono preamplifier. Because phono signals are much lower in level than standard line-level audio, the EPC-2 focuses on shielding, clean conductor design, and secure grounding to help preserve musical detail while reducing unwanted noise.
Its silvered OFC conductors are paired with shielded construction to support a quiet, stable connection for moving magnet and moving coil cartridge systems. VIABLUE 5-PIN 90 degree DIN to XLR connectors provide a solid interface at each end, while the dedicated ground wire helps minimize hum between the turntable and phono stage.
Finished in VIABLUE’s Cobra braided sleeve, the EPC-2 has the durability and visual polish expected from a high-quality analog cable. Hand-assembled in Germany, it is a strong match for vinyl systems that need a clean, well-shielded R5-PIN DIN to XLR phono connection with proper grounding.
FEATURES:
- Designed for low-level phono signal transfer between turntable and phono stage
- Silvered OFC conductors support clean, detailed analog signal transmission
- Shielded cable construction helps reduce unwanted noise and interference
- 5-PIN DIN 90 degree to XLR connectors provide secure, high-quality terminations
- Dedicated ground wire helps reduce hum in turntable systems
- Braided sleeve adds durability and a premium finished appearance
- Flexible construction supports clean routing behind turntables and audio racks
- Hand-assembled in Germany for consistent build quality
- Version tonearm plug 90 degrees UP: contact screw on top
- Version tonearm plug 90 degrees DOWN: contact screw down
SPECIFICATIONS:
| Cable Type | Phono Cable |
| Outer Sleeve | Braided Sleeve |
| Color | Cobra or Black |
| Connection Type | 5-PIN DIN 90 degree to XLR with Ground Wire |
| Conductors | Silvered OFC Conductors |
| Conductor Size | 22 AWG (0.326 mm²) |
| Shielding | Shielded Construction with Spiral Shield and ALU-PET Foil Shield |
| Conductor Capacitance | 60 pF/m |
| Shield Capacitance | 130 pF/m |
| Outer Cable Diameter | 0.15" (3.7 mm) |
| Connectors | 2x VIABLUE XLR Connectors, 1x Ground Wire |
| Ground Connection | Dedicated Ground Wire with Spade Terminations |
