Transformative Engineering - HLE-M5II - Bi-di HDMI Extender - OPEN BOX
SKU
TE-HLE-M5II-OpenBox
In stock: 1
OPEN BOX: This is a tested, like-new item with all accessories, packaging, and full factory warranty. For more information please send us a message. Or, call 877-370-1972. Thank you.
Transformative Engineering - HLE-M5II - Bi-di HDMI Extender - OPEN BOX is available to buy in increments of 1
No further discounts or coupons apply.
FREE delivery OVER $35 (USA ONLY)
30-day return

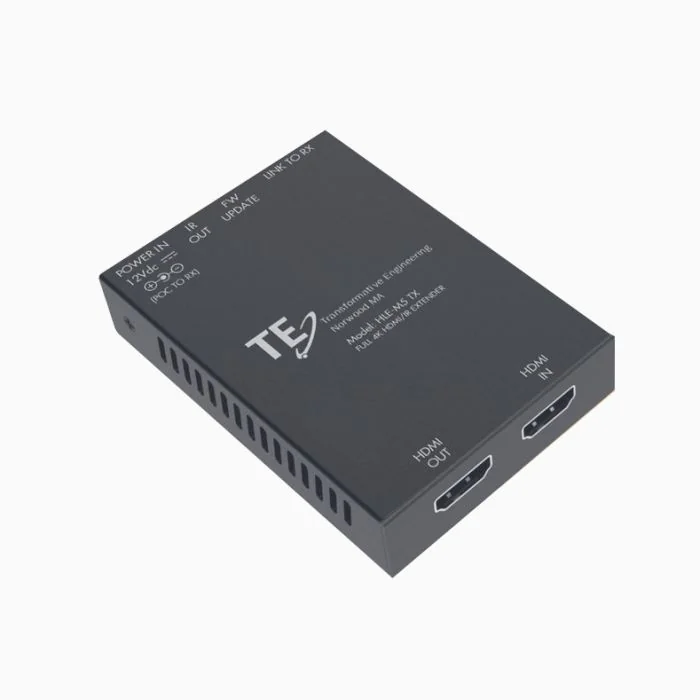

Transformative Engineering - HLE-M5II - HDMI Bi-Directional Extender - OPEN BOX
Open box. Full factory warranty.
For those requiring a budget-minded, simple HDMI Extender without all the full functions and features of the more complex models, we introduce the IR Bi-directional HLE-M5II. Utilizing a new circuit design of low-loss compression of Full Ultra-High Definition (4K), the HLE-M5II is capable of extending UHD signals, with HDR and Dolby Vision (30 Hz) up to 40 Meters, using CAT6a UTP wire. Also, these units will relay your IR functions from the Receiver (Display) end to the Transmitter (Source) side. We include the necessary Pick Up and Blaster IR Emitter, as well as an adapter, to allow for your own control IR if you choose not to utilize the supplied IR devices.
We provide an HDMI “repeater” output at the Transmitter for a local monitor - Very useful for setup, or diagnosis at your head-end. HDMI versions 1.0 thru 2.0, with HDCP v1.4 thru 2.2 are supported. All current Audio Formats are supported, as well. A single power supply (included) may be connected at either end for full operation.
Our wildly popular HLE-1 Series of Extenders has now evolved to a full 4K budget Extender with additional features and capability. At the same time, the HLE-M5II is even more economical.
Transformative Engineering continues to bend the technology curve upwards while saving you (and your clients) from higher costs. Stay tuned as we develop more “M5” Series products.
FEATURES:
- One Single UTP (Cat5e/CAT6) Cable required
- Powered via one (supplied) 24V Power Supply
- Diagnostic Indicator lights for monitoring performance and operation
- High-Quality Steel case for cooling, shielding, and safety
- Extends Full 4K HDMI and IR (Both Directions) up to 40m (125’) with CAT6 cable.
- Solid performance at 70 Meters at 1080p, 40m (130’) @ UHD4K
- HDMI Loop Out at TX unit for local output or splitter function with EDID management.
- Fully Automatic Cable length compensation. No dials or switches needed
- May be powered from either side. 24V power supply, SMA-1 IR Pass-Thru adapter included.
- Built to be rugged tough
- Three-year warranty
- Built to exact standards in Taiwan
- The company is based in Massachusetts
SPECIFICATIONS:
Input Signal
HDMI Version 1.0 thru 2.0 with HDR
IR Signal – Pass-Thru (Industry Compatible)
IR Powered Pickup –Tip (Signal), Base
(Ground) Sleeve (+12VDC) (see page 10)
HDCP Compliance
HDCP 2.2/HDCP 1.4
Video bandwidth
18 Gbps
Audio Formats Supported Video bandwidth
18 Gbps
RGB Color Space
RGB/YCbCr 4:4:4, 4:2:2, 4:2:0, YUV 4:4:4
Color Depth
8/10/12-bit (1080p60Hz, 4K30Hz, 4K60Hz
YCbCr 4:2:2/4:2:2/4:2:0 8-bit (4K60Hz 4:4:4
Video Formats
Supported:Up Thru 4K60Hz, 4:4:4
Audio Formats
Supported:All HDMI Supported Formats,
including DTS-HD,
Dolby-HD, DVD-A, Dolby
TrueHD, 8-CH LPCM, DTS HD
HRA, DTS-X
ESD Protection
8 kV Air-gap Discharge, 4kV Contact
Discharge
Output Signal
HDMI Version 1.0 thru 2.0
RJ45 - FOR LINK
IR Signal – Pass Thru (See page 10)
Maximum Distance (with CAT6a)
4K/ 60HZ/ 4:4:4 - 40 Meters (130 feet)
4K/ 30 Hz/ 4:2:0 - 50 Meters ( 160 feet)
1080p/ 60 Hz - 75 Meter (250 feet)
Power Supply X1 (supplied)
12 VDC, 12 Watts
Dimensions (Each)
9.0” W x 1.1” H x 3.75” D
Weight
1.0 Lbs (Each)
