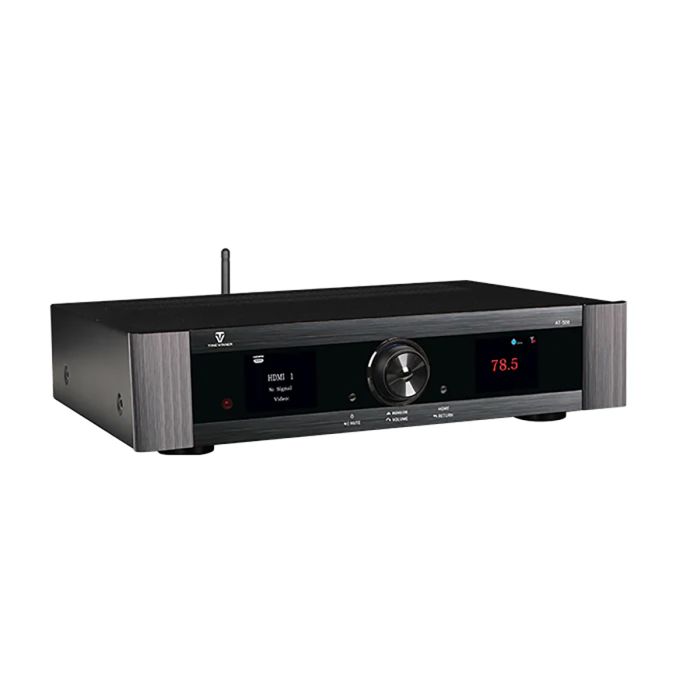

Step into the next generation of home theater with the AT-500, a premium 8K AV processor built for dedicated private cinemas. Engineered with Dolby Atmos and DTS:X, it creates rich, three-dimensional audio that surrounds you with lifelike detail.

Equipped with full 8K video capability, the AT-500 supports advanced formats like Dolby Vision, HDR10+, and 3D for unmatched clarity, contrast, and vibrant color.

Blending cutting-edge sound and video performance, the AT-500 serves as a complete entertainment hub—delivering both powerful cinema-grade immersion and refined, high-fidelity music playback.

FEATURES:

Premium DAC delivers high-resolution audio with clarity, low distortion, and wide dynamic range
Supports Dolby Atmos, Dolby TrueHD, DTS:X, DTS-HD Master Audio, and legacy formats
HDMI 2.1 with HDCP 2.3 supports 8K resolution, YUV 4:4:4, and 40Gbps bandwidth
Supports Dolby Vision, HLG, HDR10, and HDR10+ for superior visuals
Balanced output up to 7.1.6 / 9.1.4 and unbalanced output up to 7.3.6 / 9.3.4 with flexible subwoofer options
One-button auto EQ calibration with support for manual fine-tuning
Plays music from TF cards and USB drives with support for lossless and MP3 formats
Bluetooth audio receiver with app, IR, and Bluetooth remote control
Dual 2.8” front displays show real-time system status and settings
On-screen menu available in English and Chinese
Real-time music list sync on mobile devices and TV screens
Supports 2.0 to 7.3.6 / 9.3.4 speaker setups for installation flexibility
16 HDMI inputs, 2 outputs, plus digital, analog, and subwoofer connections
RS232, HDMI eARC, CEC, and AV matrix subgroup output for integration
Up to 1000ms lip-sync delay with 5–11 band parametric EQ per channel
Dual-core ADI DSP with Cirrus Logic CS42528 DAC for high-fidelity processing
2-Year Limited Manufacturer's Warranty

SPECIFICATIONS:

Digital-to-Analog Converter (DAC):	Cirrus Logic CS42528
Signal-to-Noise Ratio (S/N):	≥110dB (A-weighted, 1kHz, 1Vrms, analog in, pure mode)
Total Harmonic Distortion (THD):	≤0.004% (A-weighted, 1kHz, analog in, pure mode)
Frequency Response:	10Hz – 65kHz (+1/-3dB, analog in, pure mode)
Output Level:	4Vrms +1dB (THD=1%, analog in, analog pure mode)
Channel Separation:	≥90dB (analog in, analog pure mode)
Subwoofer Outputs:	1 × Balanced XLR 2 × Unbalanced RCA
Maximum Power Consumption:	1 × Balanced XLR 2 × Unbalanced RCA
Maximum Power Consumption:	30W
Net Weight:	9.48 lbs.
Gross Weight:	13.89 lbs.
Unit Dimensions:	16.97" × 11.97" × 3.15" (W × D × H)
Packaging Dimensions:	22.05" × 15.43" × 6.50" (W × D × H)

DOWNLOADS:

ToneWinner - AT-500 - Owner's Manual (PDF)
