ToneWinner - AD-7300 - 2170W 7-Channel A/V Home Theater Amplifier
SKU
TW-AD-7300
This product is currently unavailable until late October 2026. For more info, please send us a message. Or, call 877-370-1972. Thank you.
No further discounts or coupons apply.
FREE delivery OVER $35 (USA ONLY)
30-day return

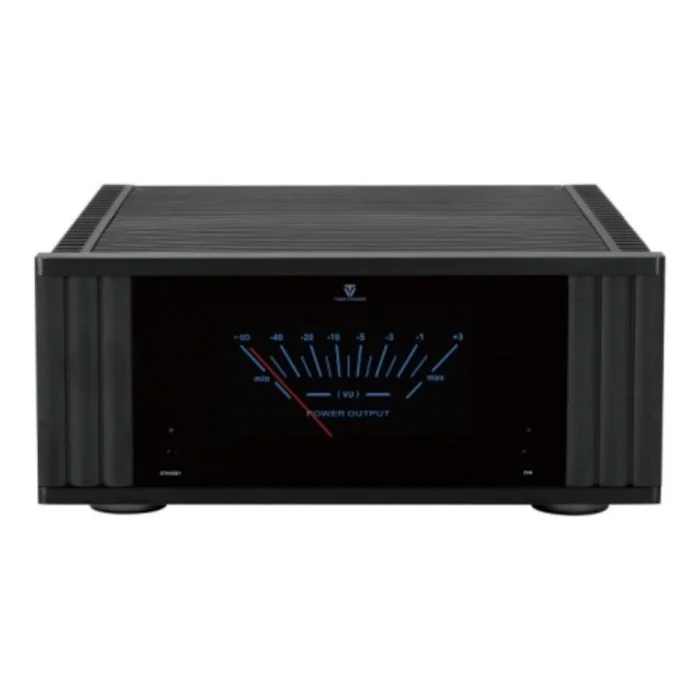

ToneWinner - AD-7300 - 2170W 7-Channel A/V Home Theater Amplifier
The ToneWinner AD-7300 2170W 7-Channel A/V Home Theater Amplifier is a high-performance solution designed to bring immersive, high-fidelity audio to home theater setups. Engineered for seamless integration with multi-channel systems, this amplifier delivers powerful, clean, and dynamic sound reproduction across all channels, making it an excellent choice for home cinema enthusiasts.
With a total power output of 2170W, the AD-7300 7-Channel Home Theater Amplifier provides 310W per channel, ensuring ample headroom for high-demand audio applications. The amplifier features selectable balanced and unbalanced inputs, utilizing a low-noise double differential amplifier circuit with a mirror constant current source load to enhance the signal-to-noise ratio. The circuit design incorporates high slew rates, temperature compensation, and a DC servo system to maintain stability. Built-in protection circuits safeguard against overvoltage, overheating, overload, overcurrent, and short circuits, ensuring long-term reliability and safety for both the amplifier and connected speakers.
For home theater enthusiasts looking for a robust and refined amplifier, the ToneWinner AD-7300 delivers exceptional power, advanced circuit design, and comprehensive protection features, making it an outstanding addition to any high-end audio system.
FEATURES:
- Designed for high-performance home theaters
- Supports both balanced and unbalanced inputs
- Low-noise differential amplifier circuit
- Independent modular power amplifier units
- Advanced protection against power issues
- Delivers stable and immersive audio quality
- Engineered for high sound pressure dynamics
- Ensures consistent performance across channels
- 2-Year Limited Manufacturer's Warranty
SPECIFICATIONS:
| Power Output (8 Ohms, RMS): | 310W/Channel This Rating not tested under the FTC Standard |
| Power Output (4 Ohms): | 515W/Channel RMS This Rating not tested under the FTC Standard |
| Frequency Range (±3dB): | 20Hz - 50KHz |
| SNR: | ≥100dB |
| THD: | ≤0.09% |
| Impedance: | 8 Ohms |
| Channels: | 7 |
| Gain (±1dB): | ≥29.5dB |
| Inputs: | 7 x Pre-Amp In (Mono RCA) |
| 7 x Pre-Amp In (Mono XLR) | |
| Outputs: | 7 x Speaker Out |
| Dimensions: | H 7.8" x W 17.3" x D 17.5" (H 197mm x W 440mm x D 445mm) |
| Weight: | 55.1 lbs (25kg) |
