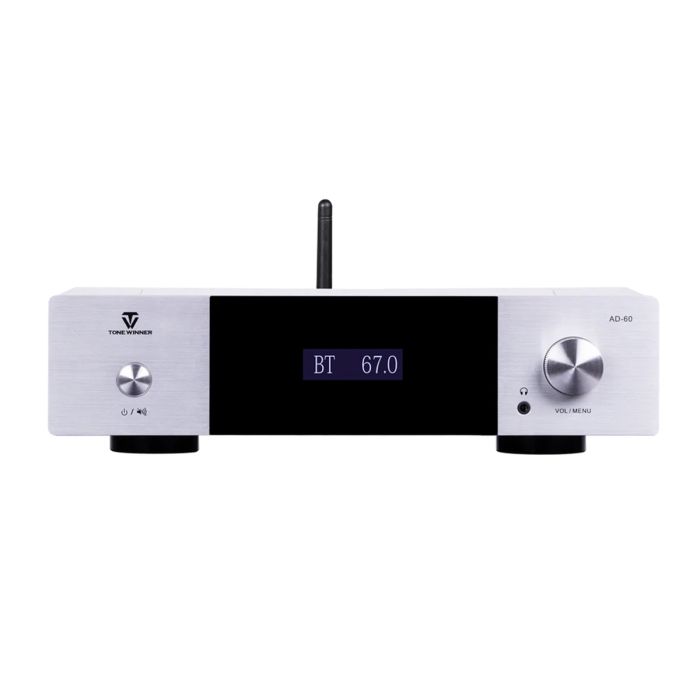

The ToneWinner AD-60 is a versatile Class AB integrated amplifier designed to deliver high-fidelity audio performance in a compact form factor. Combining pre-amplification, power amplification, digital playback, and headphone amplification, it caters to a wide range of audio enthusiasts seeking quality sound reproduction. Its sleek design and comprehensive feature set make it an excellent choice for both desktop and home audio systems.

Equipped with Bluetooth 5.0 technology, the AD-60 ensures stable and high-quality wireless audio streaming from compatible devices. It supports local playback through USB drives and TF cards, accommodating storage capacities up to 128GB, allowing users to enjoy their music collections directly. The amplifier offers multiple digital inputs, including optical, coaxial, and PC USB-Audio, providing flexibility in connecting various audio sources. A front-facing headphone jack enables private listening sessions, transforming the unit into a capable headphone amplifier. Additionally, the AD-60 supports smartphone app control, granting users convenient access to settings and playback options.

For those seeking a compact yet powerful integrated amplifier, the ToneWinner AD-60 presents a compelling option. Its combination of wireless connectivity, local playback support, and versatile input options ensures a comprehensive and enjoyable listening experience, making it a valuable addition to any audio setup.

FEATURES:

Supports Bluetooth 5.0 for wireless streaming
Compatible with USB sticks and TF cards
Optical, coaxial, and PC USB-Audio inputs
Integrated preamp, power amp, and DAC functions
Includes headphone amplification capability
Smartphone app control for convenience
2-Year Limited Manufacturer's Warranty

SPECIFICATIONS:

Power Output (8 Ohms):	50W/Channel This Rating not tested under the FTC Standard
Power Output (8 Ohms):	50W/Channel This Rating not tested under the FTC Standard
Power Output (4 Ohms):	80W/Channel This Rating not tested under the FTC Standard
Power Output (4 Ohms):	80W/Channel This Rating not tested under the FTC Standard
Frequency Range (±3dB):	20Hz - 100kHz
SNR:	≥100dB
THD:	≤0.025%
Impedance:	8 Ohms
Bluetooth:	5.0
Inputs:	1 x RCA
	1 x Optical (TOSLINK)
	1 x Coaxial (S/PDIF)
	1 x USB-A
	1 x USB-C
	1 x HDMI eARC
Outputs:	2 x Speaker Out
Outputs:	1 x Subwoofer (RCA)
Dimension:	H 3.3" x W 11.8" x D 13.2" (H 83mm x W 300mm x D 335mm)
Weight:	12.1 lbs (5.5kg)

DOWNLOADS:

ToneWinner - AD-60 - Technical Specifications (PDF)

ToneWinner - AD-60 - Owner's Manual (PDF)
