ToneWinner AD-3240PA - 3-Channel Power Amplifier
SKU
TW-AD-3240PA
BACKORDERED: This product is currently on backorder until end of August 2026. For more information, please send us a message. Or, call 877-370-1972. Thank you.
No further discounts or coupons apply.
FREE delivery OVER $35 (USA ONLY)
30-day return

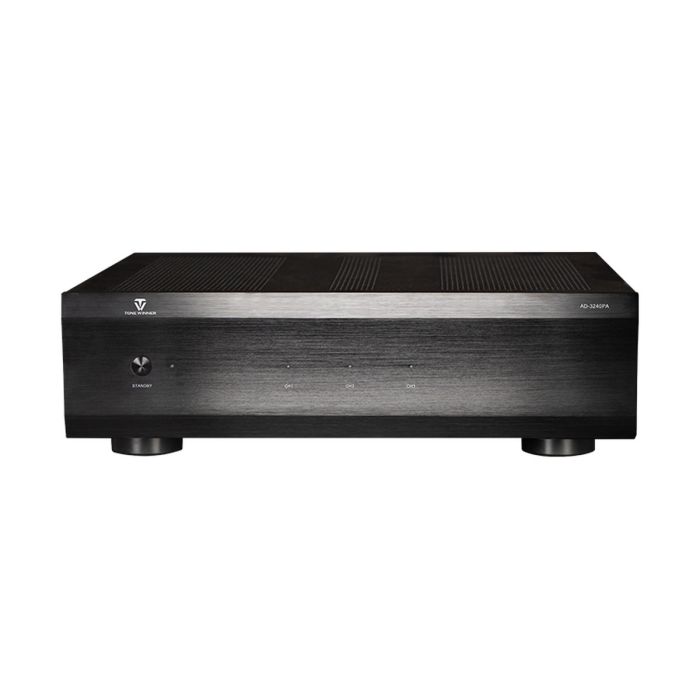

ToneWinner AD-3240PA - 3-Channel Power Amplifier
The ToneWinner AD-3240PA is a three-channel power amplifier designed to provide dedicated, high-output amplification for the front soundstage of a home theater system. Delivering up to 250 watts per channel into 8 Ohms and 400 watts into 4 Ohms, it supplies the power needed for dynamic movie soundtracks, detailed music playback, and demanding loudspeaker systems.
Audiophile-grade dual-differential amplification circuits and temperature-compensation circuitry help maintain a high signal-to-noise ratio and stable performance. The amplifier supports both balanced XLR and unbalanced RCA connections, allowing it to integrate with a wide variety of surround processors and preamplifiers. Three independent signal indicators provide clear visual confirmation of channel activity.
A brushed aluminum-alloy front panel and gold-plated speaker binding posts give the AD-3240PA a durable, refined construction. Intelligent air cooling and comprehensive protection circuitry guard against excessive voltage, temperature, current, load, and short-circuit conditions. Trigger input and output connections also allow the amplifier to power on and off with compatible home theater components.
FEATURES:
- Three-channel power amplifier for home theater and audio systems
- 250W per channel into 8 Ohms
- 400W per channel into 4 Ohms
- Audiophile-grade dual-differential amplification circuitry
- Balanced XLR and unbalanced RCA audio inputs
- Three independent front-panel signal indicators
- Brushed aluminum-alloy front panel
- Gold-plated speaker binding posts
- Intelligent internal air-cooling system
- Overvoltage, overtemperature, overload, overcurrent, and short-circuit protection
- 12V trigger input and output connections
- Compatible with 4- to 8-Ohm loudspeakers
- Dual-voltage design for 110–115V or 220–230V operation
SPECIFICATIONS:
| Model | AD-3240PA |
|---|---|
| Product Type | 3-Channel Power Amplifier |
| Number of Channels | 3 |
| Output Power | 250W per channel into 8 Ohms; 400W per channel into 4 Ohms (mono, 1kHz, 1% THD) |
| Rated Impedance | 8 Ohms; compatible with 4–8 Ohms |
| Frequency Response | 10Hz–30kHz (+1/-3dB) |
| Total Harmonic Distortion | ≤0.006% (A-weighted, 1kHz, normal operating condition) |
| Signal-to-Noise Ratio | ≥100dB (A-weighted) |
| Gain | ≥29dB ±1dB |
| Audio Inputs | Balanced XLR and Unbalanced RCA |
| Speaker Outputs | Gold-Plated Binding Posts |
| Trigger Connections | Trigger Input and Output |
| Cooling System | Intelligent Internal Air Cooling |
| Protection Circuits | Overvoltage, Overtemperature, Overload, Overcurrent, and Short-Circuit Protection |
| Power Requirements | 110–115V, 60Hz / 220–230V, 50Hz |
| Dimensions (W x D x H) | 16.9" x 13.8" x 4.3" (431mm x 352mm x 110mm) |
| Net Weight | 25.7 lbs. (11.7kg) |
| Shipping Dimensions (W x D x H) | 21.4" x 18.6" x 8.2" (544mm x 474mm x 210mm) |
| Shipping Weight | 29.9 lbs. (13.6kg) |
| Warranty | 2-year |
