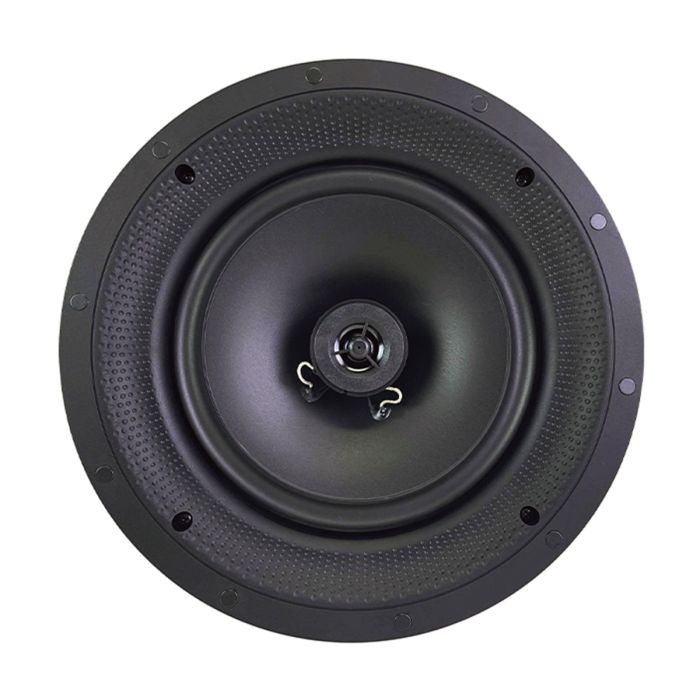

TDG - Factor 800 - Flangeless 8" In-Ceiling Speaker (Single)

TDG - Factor 800 - Flangeless 8" In-Ceiling Speaker (Single)
The TDG Audio FACTOR 800 is a flangeless 8" in-ceiling speaker designed for clean architectural installation and strong full-range performance. Its modern no-edge design allows the speaker to blend neatly into finished ceilings, making it a practical choice for distributed audio, media rooms, and discreet home theater layouts.
The FACTOR 800 uses an 8" polypropylene woofer and a 0.5" PEI tweeter in a 2-way configuration, with a rated frequency response of 41Hz-20kHz and 87dB SPL sensitivity. TDG Audio’s specially engineered baffle includes a concave dimple pattern intended to improve high-frequency accuracy, helping music, dialogue, and ambient effects sound clearer from an overhead location.
Installation-friendly details include a dual-coated magnetic grill, removable scrim cloth, large push terminals, and extra-wide threaded screws for quick dogleg fastening. With an 82mm mounting depth, 248mm cutout, and PCBC-8 pre-construction bracket compatibility, the FACTOR 800 is built for professional in-ceiling installations where clean appearance, reliable mounting, and refined sound all matter.
FEATURES:
- Modern no-edge 2-way in-ceiling speaker design
- 8" polypropylene woofer delivers full-range ceiling audio
- 0.5" PEI tweeter supports clear high-frequency detail
- Concave dimple baffle pattern improves high-frequency accuracy
- Flangeless design creates a clean architectural appearance
- Dual-coated grill uses zinc and powder coating
- Neodymium magnets hold the grill securely in place
- Extra-wide threaded screws support quick dogleg fastening
- Large push terminals simplify speaker wire connection
- Backed by TDG Audio’s lifetime warranty
SPECIFICATIONS:
| Product Type | Flangeless In-Ceiling Speaker |
| Model | FACTOR 800 |
| Speaker Design | 2-Way In-Ceiling |
| Woofer | 8" (203.2mm) Polypropylene Woofer |
| Tweeter | 0.5" (12.7mm) PEI Tweeter |
| Power Handling | 5W-80W |
| Sensitivity | 87dB SPL |
| Impedance | 8 ohms |
| Frequency Response | 41Hz-20kHz |
| Baffle Diameter | 10.6" (271mm) |
| Mounting Depth | 3.2" (82mm) |
| Cutout Dimensions | 9.7" (248mm) |
| Pre-Construction Bracket | PCBC-8 |
| Grill | Dual Coated Zinc and Powder-Coated Magnetic Grill |
| Mounting System | Dogleg Mounting with Extra-Wide Threaded Screws |
| Connections | Large Push Terminals |
| Scrim Cloth | Removable |
| Warranty | Lifetime Warranty |
