SVS - SB-4 - 7.2 Extreme Surround Bundle w/ Integra DRX 8.4 Receiver
Save with this bundle! For more information, please send us a message. Or, call 877-370-1972. Thank you.
SVS - SB-4 - 7.2 Extreme Surround Bundle w/ Integra DRX 8.4 Receiver
Included in this bundle:
- Ultra Evolution Pinnacle Speakers
- Ultra Evolution Center
- Ultra Elevation On-Wall Speakers
- SB17 Subwoofer
- Integra DRX 8.4 Receiver
Engineered for dedicated home theaters and large-scale media rooms, the 7.2 Extreme Surround Bundle delivers uncompromising sonic immersion, pinpoint control, and stunning scale. Designed for enthusiasts who want full-bodied surround performance with spatial realism and cinematic authority, this reference-grade system brings together Ultra Evolution Pinnacle towers, dual SB17 Ultra Revolution subwoofers, immersive surrounds, and an elite-class Integra DRX-8.4 AV receiver. It’s a tour de force setup for listeners who demand the full dynamic range of cinema and music alike.

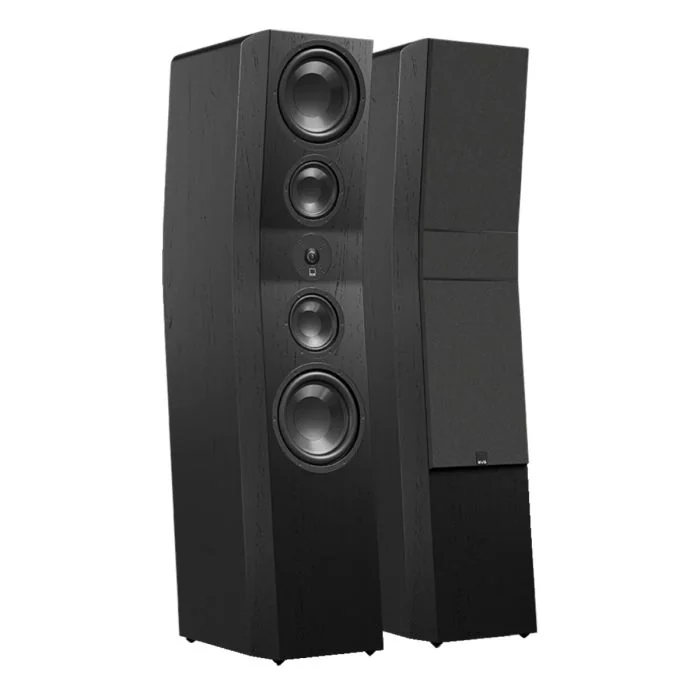

The Ultra Evolution Pinnacle speakers serve as the front anchors with vertically aligned five-driver arrays, precision-tuned crossovers, and diamond-coated aluminum tweeters—all engineered for expansive dispersion and surgical imaging. The Ultra Evolution Center ensures seamless dialogue clarity and tonal balance across the front stage, while Ultra Elevation modules provide height or surround effects for enveloping spatial layers. Dual SB17 Ultra Revolution subwoofers with 13.5" drivers and 1,500-watt DSP-controlled amplifiers energize the room with low-frequency impact that’s tight, clean, and responsive across the deepest octaves. At the heart of the system, the Integra DRX-8.4 11.4-channel receiver delivers flagship-caliber signal processing, DIRAC Live room correction, 8K video support, and high-current amplification, providing clean power and flexibility for advanced multi-speaker environments.
For audiophiles and cinema purists building a no-compromise system, the 7.2 Extreme Surround Bundle brings absolute control and overwhelming scale to every scene or performance. Whether rendering the delicate ambience of orchestral passages or the explosive rumble of cinematic action, it captures the smallest details and largest dynamics with equal finesse and power.
FEATURES:
- Ultra Evolution Pinnacle towers offer massive dynamic range
- SB17 Ultra subwoofer delivers chest-thumping low end
- Ultra Evolution Center ensures pristine vocal reproduction
- Dual Ultra Elevation speakers enable 3D surround sound
- Integra DRX-8.4 provides 9.4 channels
- Force-balanced drivers reduce cabinet vibration artifacts
- Subwoofers feature smartphone-controlled DSP tuning
- Receiver supports 8K video, IMAX Enhanced, and HDR
- Perfect for large dedicated home theater environments
- Extreme clarity, power, and immersion in one package
SPECIFICATIONS:
Ultra Evolution Pinnacle Speakers
Recommended Amplifier Power: | 20W – 300W |
Frequency Response (±-3dB): | 24Hz - 40kHz |
Woofer: | 4 x 8" (203.2mm) Long stroke, Composite Glass-Fiber |
Midrange: | 1 x 5.25" (133.35mm) Composite Glass-Fiber |
Tweeter: | 1 x 1" (25.4mm) Diamond Coated Aluminum |
Nominal Impedance: | 6 Ohms |
Sensitivity: | 88dB |
Crossover: | 140Hz | 1.8kHz |
Dimensions: | H 49.6" x W 11.8" x D 18.1" (H 1260mm x W 300mm x D 460.7mm) |
Weight: | 96.8 lbs (43.9kg) |
Ultra Evolution Center
Recommended Amplifier Power: | 20W – 225W |
Frequency Response (±3dB): | 40Hz - 40kHz |
Woofer: | 6.5" (165.1mm) Composite Glass-Fiber |
Midrange: | 4.5" (114.3mm) Composite Glass-Fiber |
Tweeter: | 1" (25.4mm) Diamond Coated Aluminum |
Crossover: | 450Hz | 2.2kHz |
Nominal Impedance: | 6 Ohms |
Sensitivity: | 87dB |
Dimensions: | H 7.7" x W 22" x D 11.4" (H 195mm x W 560mm x D 289.4mm) |
Weight: | 26.9 lbs (12.2kg) |
Ultra Elevation On-Wall Speakers
Recommended Amplifier Power: | 20W - 150W |
Frequency Response (±3dB): | 48Hz - 40kHz |
Woofer: | 5.25" (133.35mm) Composite Glass-Fiber |
Tweeter: | 1" (25.4mm) Diamond Coated Aluminum |
Nominal Impedance: | 6 Ohms |
Sensitivity: | 87dB |
Crossover: | 1.9kHz |
Dimensions: | H 11.1" x W 7.3" x D 8.8" (H 283mm x W 185mm x D 223.2mm) |
Weight: | 12.3 lbs (5.6kg) |
SB17 Subwoofer
Amplifier Power (RMS): | 2800W This Rating not tested under the FTC Standard |
Amplifier Power (Peak): | 6000W This Rating not tested under the FTC Standard |
Frequency Response (±3dB): | 15Hz - 320Hz |
Woofer: | 17" Front Firing Glass-Fiber |
Amplifier: | SVS STA-2800 |
Input Impedance (RCA): | 10k Ohms |
Input Impedance (XLR): | 14k Ohms |
App: | SVS Mobile App |
Inputs: | RCA LFE In |
RCA Line Level | |
XLR | |
Outputs: | XLR |
RCA Line Level | |
Dimensions: | H 20" x W 19.5" x D 21.2" (H 508mm x W 496mm x D 539mm) |
Weight: | 124 lbs (56.2kg) |
Integra DRX 8.4 Receiver
Power Output: | 260W/Ch @ 6 Ohms, 150W/Ch @ 8 Ohms This Rating not tested under the FTC Standard |
Frequency Response (±3db): | 10Hz – 100kHz |
Input Sensitivity (RCA): | 200mVrms |
Input Sensitivity (Phono MM): | 3.5mV |
Impedance (RCA): | 47k Ohms |
Impedance (Phono MM): | 47k Ohms |
THD+N: | 0.08% |
Phono Overload: | 70mV |
S-NR (Line): | 107dB |
S-NR (Phono): | 78dB |
Speaker Impedance: | 4 Ohms – 16 Ohms |
Headphone Frequency Response: | 10Hz - 100kHz |
Headphone Rated Output: | 75mW |
Headphone Impedance: | 8 Ohms - 600 Ohms |
WiFi: | 2.4/5GHz 802.11 a/b/g/n/ac |
Bluetooth: | v4.2 (Bi-Directional) |
Codecs: | MP3, WMA, LPCM, DSD, FLAC, WAV, ALAC, AIFF, SBC, AAC, aptX, aptX HD, Apple Lossless |
Supports: | Amazon Music HD, Spotify, TIDAL, TuneIn, Pandora, Deezer, Sonos , Alexa, Hey Google, Chromecast, AirPlay 2, Roon |
App: | Integra Remote App (Android, iOS) |
Inputs: | 7 x 8K HDMI |
4 x RCA | |
1 x Phono | |
1 x XLR | |
1 x Component Video | |
2 x Composite Video | |
1 x Digital Coaxial | |
3 x Optical TOSLINK | |
1 x 10/100BaseT Ethernet (RJ45) | |
1 x USB | |
Outputs: | 11 x Speaker Out |
1 x 8K HDMI (eARC) | |
2 x 8K HDMI | |
2 x RCA Subwoofer | |
2 x XLR Subwoofer | |
6 x RCA Surround Pre-Out | |
3 x XLR Surround Pre-Out | |
Dimensions: | H 7.8" x W 17.1" x D 18.5" (H 198mm x W 435mm x D 470mm) |
Weight: | 49.6 lbs (22.5kg) |
