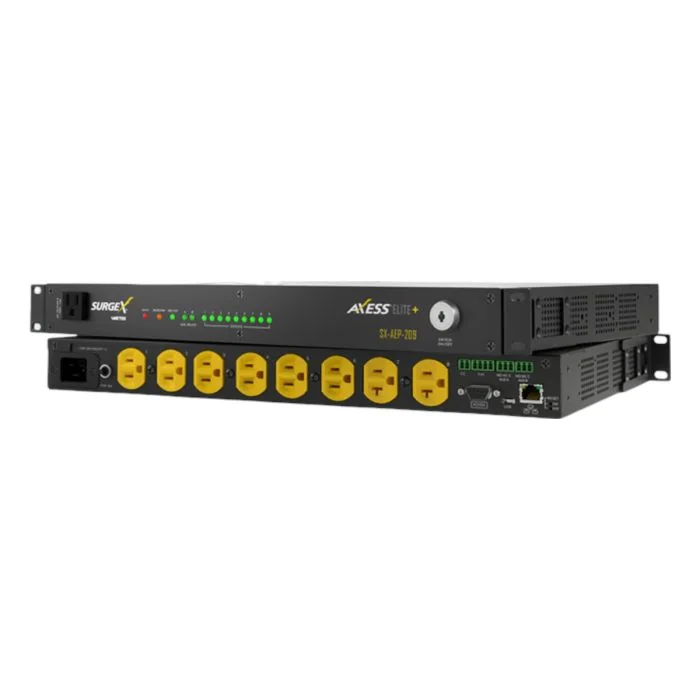

SurgeX - SX-AEP-209 - ELITE+ IP Connected Surge Eliminator
SPECIAL ORDER: Please allow 3-4 weeks for Processing and Shipping. For more information please send us a message. Or, call 877-370-1972. Thank you.
SurgeX - SX-AEP-209 - ELITE+ IP Connected Surge Eliminator
Engineered for professional AV installations and IT infrastructure requiring resilient power protection with advanced connectivity, the SurgeX SX-AEP-209 ELITE+ IP Connected Surge Eliminator delivers robust defense and remote management in one powerful unit. Designed for environments like control centers, live venues, enterprise networks, or high-end AV racks, this unit safeguards critical systems against surges and transients while offering granular, IP-based monitoring and automation. It's built to be the intelligent core of any power-sensitive deployment where reliability cannot be compromised.
The SX-AEP-209 filters out harmful electrical disturbances without degrading over time or relying on sacrificial components. Its integration with the Axess ELITE+ platform enables full IP access for real-time energy monitoring, outlet-level control, scheduling, and automated diagnostics. This means users can remotely reboot connected devices, set thresholds for voltage irregularities, or receive alerts before failures occur. EMI/RFI filtration and programmable sequencing ensure both pristine power and safe equipment startup or shutdown procedures.
Ideal for technicians and integrators who demand remote visibility and proactive power management, the SX-AEP-209 ELITE+ stands as a best-in-class solution for mission-critical applications. It provides precision control, silent protection, and long-term system resilience—all through a single, network-enabled device.
FEATURES:
- Advanced Series Mode removes surge without clamping
- Eight individually controlled and monitored outlets
- Integrated IP control with user-friendly interface
- No MOVs or sacrificial parts for lasting protection
- EMI/RFI filtering provides clean, noise-free power
- Event logging and auto-reboot capability built-in
- Sequencing and scheduling features via web GUI
- Designed for enterprise and mission-critical systems
SPECIFICATIONS:
AC Load Rating: | 16A @ 120V |
Outlets (Back): | 8 x NEMA 5-15R |
Outlets (Front): | 1 x NEMA 5-15R |
Measurement Accuracy (Voltage): | ±2% |
Measurement Accuracy (Current): | ±5% |
Measurement Accuracy (Power): | ±7% |
Measurement Accuracy (Energy): | ±7% |
Measurement Accuracy (Timestamp): | ±1% |
Inputs: | 1 x Contact Closure |
1 x Temperature and Humidity | |
1 x Serial Port (RS232) | |
1 x 10/100 Ethernet (RJ45) | |
Outputs: | 2 x Auxiliary Relay |
Certifications: | UL 62368-1, CAN/CSA C22.2 No 62368-1:19, WEEE, FCC 47 CFR PART 15, SUBPART B, ICES-003 ISSUE 7 |
Altitude: | 0 - 10000ft (0m - 3048m) |
Temperature: | 32°F to 113°F (0°C to 45°C) |
Dimensions: | H 1.7" x W 17.4" x D 11.8" (H 44mm x W 442mm x D 300mm) |
Weight: | 12.3 lbs (5.6kg) |
