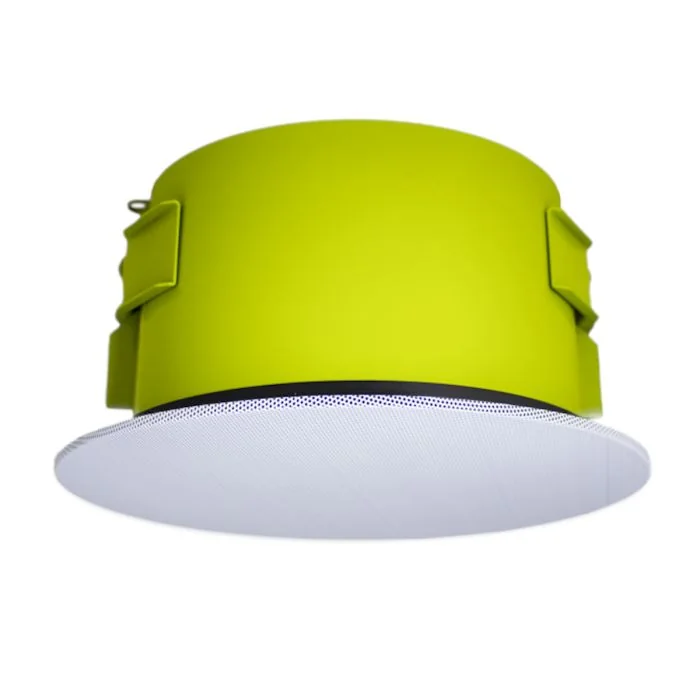

SoundTube - IPD4-CM52-BGM-II - 5.25" 2-Way In-Ceiling Speaker (Single)
Shipping:
SoundTube - IPD4-CM52-BGM-II - 5.25" 2-Way In-Ceiling Speaker (Single)
Elevate your audio installations to a new level of excellence with the SoundTube IPD4-CM52-BGM-II 5.25" In-Ceiling Speaker. Designed with contractors in mind, this speaker combines top-notch audio performance with ease of installation. Whether you're working on a commercial project, a restaurant, or a retail space, this speaker ensures that your clients will experience exceptional sound quality.
The IPD4-CM52-BGM-II features a 5.25" polypropylene woofer and a 1" silk dome tweeter, delivering a balanced and rich audio experience. With SoundTube's BroadBeam technology, sound is evenly distributed, ensuring that every corner of the room is filled with remarkable audio quality. This speaker is also Dante-enabled, making it compatible with modern audio networking systems for seamless integration. Contractors can appreciate the straightforward installation process, while clients will be captivated by the immersive sound.
The SoundTube IPD4-CM52-BGM-II 5.25" In-Ceiling Speaker is the contractor's go-to choice for premium audio solutions. Its blend of impressive audio performance, innovative technologies, and easy installation makes it the perfect addition to any commercial or public space. Whether you're an experienced contractor or just starting in the industry, this speaker simplifies the installation process while delivering an extraordinary acoustic experience. Choose the IPD4-CM52-BGM-II to ensure your projects are not only visually stunning but also sonically captivating, leaving a lasting impression on your clients and their customers.
Note: SoundTube IPD speakers are NOT compatible with PoE++. 30W PoE maximum (or 40W maximum with STNet Switch II)
FEATURES:
- Integrated amplifier and DSP for easy sound management
- 5.25-inch woofer and 1-inch tweeter for clear audio
- Ideal for commercial environments like retail and restaurants
- Quick and simple installation
- Designed for background music and paging systems
SPECIFICATIONS:
Frequency Response (±3dB): | 67Hz - 20kHz |
Frequency Response (±10dB): | 56Hz - 22kHz |
Max. Power SPL @ 1m: | 93dB |
Coverage Angle (±6dB @ 2kHz): | 180° |
Coverage Angle (±6dB @ 10kHz): | 112° |
Coverage Angle (Averaged 2kHz - 10kHz): | 141° |
Directivity Factor (Q): | 3.8dB (Avg. 100Hz - 10kHz) | 2.1dB (2kHz) |
Directivity Index (DI): | 5.1dB (Avg. 100Hz - 10kHz) | 3.3dB (2kHz) |
Low-Frequency Driver: | 5.25" (133.35mm) polypropylene cone w/ rubber surround |
High-Frequency Driver: | 0.75" (19.05mm) silk dome tweeter |
Low-Frequency Voice Coil: | 1" (25.4mm) |
Crossover Frequency: | 5.0kHz |
Dimensions: | H 9.6" x W 9.6" x D 5.75" (H 244mm x W 244mm x D 147mm) |
Visible Height: | 0.34" (8.64mm) |
Mounting Hole Diameter: | 10.5" (266.7mm) |
Min. | Max. Ceiling Thickness: | 0.035" | 2.5" (1mm | 64mm) |
Weight: | 7.9 lbs (3.6kg) |
Certifications: | CE, UL 2043, UL 60065, ETL-c/US |
