SoundTube - FP-6020-II - 2 x 1" Focus Point Speaker (Single)
SoundTube - FP-6020-II - 2 x 1" Focus Point Speaker (Single)

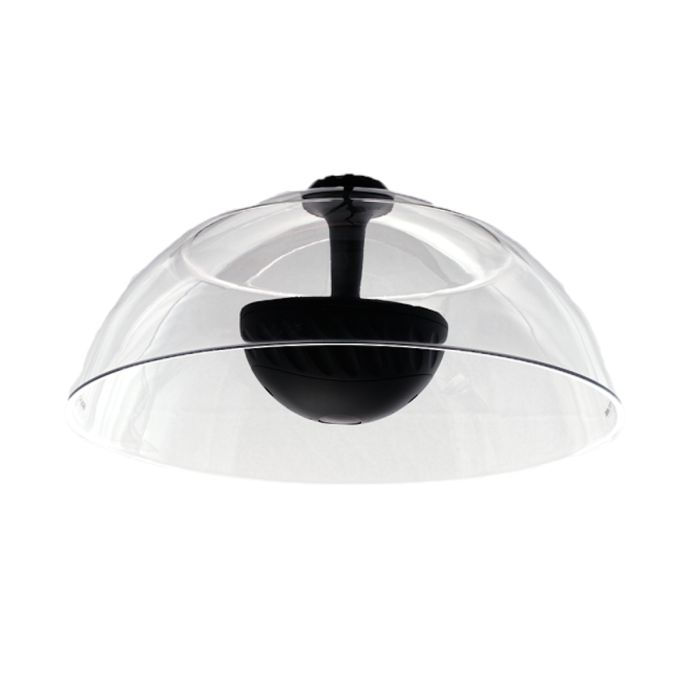

SoundTube FP6020-II Focus Point Speaker
Delivers targeted audio in a unique package. Features: Patented Dual-Parabolic™ dispersion control technology provides a targeted audio footprint with true stereo separation. Twin 1 inch (25 mm) concave aluminum high-excursion drivers in individually sealed compartments for stereo or mono music and messaging. Patented ZeroReflection™ enclosure technology for accurate sound reproduction. Narrow 30 coverage angle for sharp focus (2 kHz, independently verified). 20.25 in (514.3 mm) custom-molded PETG clear polymer dome for minimal visual impact. User-selectable 350 Hz high-pass filter. Single-point balanced mounting for easy and clean-looking installs. Ships with clear dome. Included accessories: hanging bracket, mounting bushing and a 15-foot hanging cable which includes four 16-gauge inputs and a CAT V cable. Optional modules include Motion Sensor (FP-Motion), LED light (FP-Light). Optional electronic accessories include 10W and 20W transformers with junction box for 25V, 70.7V, and 100V applications (AC-JB10-XFMR, AC-JB20-XFMR) and an external amplification unit with power supply (SA202-RDT) for use with any FP module.
All models can be wired in either 8-ohm stereo or 4 ohm mono with an optional 25V/70.7V/100V transformer available. Ideal for high-definition music and messaging with tight coverage, full-range stereo sound (130Hz - 22kHz, -10dB). True audio containment (45 averaged, 2 - 10kHz) also makes the FP6020-II ideal for focused audio applications including kiosks, P.O.P. displays, trade shows, digital signage, or any place where contained high-fidelity stereo or mono sound is required, but visual impact must be minimized.
Optional Accessories:
FP-Light
Module Only- Speaker Sold Separately. FP-Light ships with built-in white LED that can be controlled individually or globally via an external control system. (e.g., Lutron, AMX, Crestron). Must be ordered with an FP6020-II or FP6030-II.
FP-Motion
Module Only- Speaker Sold Separately. FP-Motion ships with built-in infra-red sensor with wide and narrow lens options plus stereo timer relay. Must be ordered with an FP6020-II or FP6030-II.
FEATURES:
- Patented Dual-Parabolic™ dispersion control technology provides a targeted audio footprint with true stereo separation
- Twin 25.4mm (1") concave aluminum high-excursion drivers in individually sealed
- compartments for stereo or mono music and messaging
- Patented ZeroReflection™ enclosure technology for accurate sound reproduction
- Narrow 30° coverage angle for sharp focus (2kHz, independently verified)
- 514.3mm (20.25") custom-molded PETG clear polymer dome for minimal visual impact
- User-selectable 350 Hz high pass filter
- Single-point balanced mounting for easy and clean-looking installs
- Ships with clear dome, custom colors available
- Included accessories: hanging bracket, mounting bushing and a 15-foot hanging cable which
- includes four 16-gauge inputs and a CAT 5 cable
- Optional electronic accessories include an external amplification unit with power supply (SA202-RDT) for use with any FP module
- Additional optional accessories include: wall bracket, and rigid mount adapter
- Ships as individual unit, bulk shipping available
SPECIFICATIONS:
Included
Hanging Hardware( including 15' CAT 5 signal and power cable)
Mounting Hardware
Nominal Impedance
8 ohm
Impedance (min)
5.4 ohm
Sensitivity dB @ 2.83V/m
75.0dB
Sensitivity dB @ 1W/m
75.0dB
Frequency Response (± 3dB)
170Hz – 22kHz (300Hz with high-pass filter)
Frequency Response (± 10dB)
130Hz – 22kHz (200Hz with high-pass filter)
Max. Program Power
30W
Max. Continuous Power RMS
15W
Max. Power SPL @ 1m
87.0dB
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz)
19 (Average 100Hz - 10kHz) 20.9 (2kHz)
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz)
11.9dB (Average 100Hz - 10kHz) 13.2dB (2kHz)
Tap Selector
Optional j-box transformer with 4 position rotary switch
70.7 Volt Transformer Taps
10W / 85.0dB
100 Volt Transformer Taps (dB)
10W / 85.0dB
25 Volt Transformer Taps (dB)
1.25w / 76.0dB
Transformer Options
25 / 70.7 / 100 Volt Option with a 8 Ohm direct
Transducer - Full-Range Driver
1" Aluminum, High Excursion
Network Type: High Pass
6dB per octave, 1st order
Angle
65°
Coverage Angle (-6dB @ 2kHz)
65°
Inputs
4.6m (15') hardwire lead
Height (SM = Height)
222.3 mm / 8.75 in
Diameter (SM = Width)
514.4 mm / 20.25 in
Weight
2.5 kg / 5.5 lbs
Shipping Weight
5 kg / 11 lbs
Packaging
1 per box
Regulatory - CE
Approved
Regulatory - RoHS
Approved
