SoundSmith - IROX Blue X - High-Output Phono Cartridge
There is a 3 - 5 week delay in shipping as cartridges are hand-made to order. Phono cartridges are not returnable. If found defective, by the manufacturer, they can only be exchanged. Please contact Sound Approach for more Information. Thank You!
Discount:
Shipping:

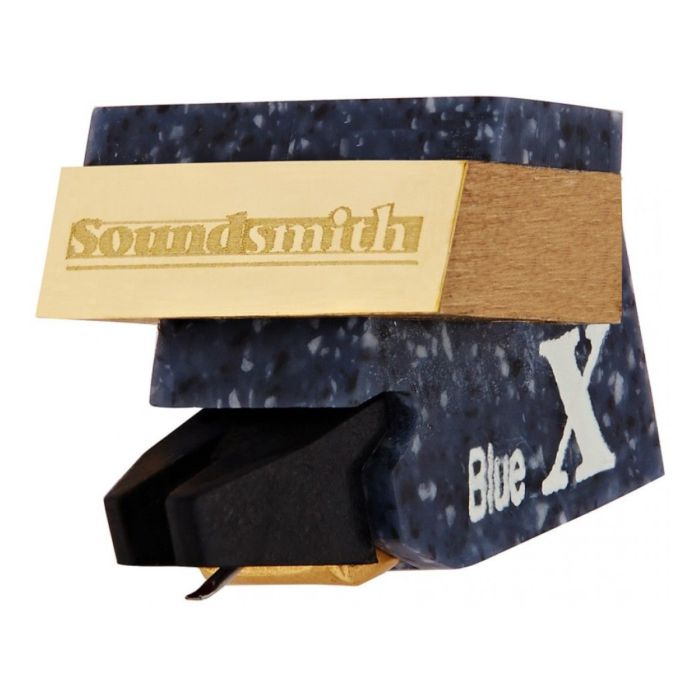

SoundSmith - IROX Blue X - High-Output Phono Cartridge
Soundsmith's unbreakable special use cartridge. Perfect for any harsh repetitive use.
The IROX Blue is distinguished from the IROX Ultimate in the mere fact that it has an elliptical stylus, not the Nude elliptical stylus. It's perfect for parties, DJ-ing, public institutions like libraries, or perhaps just clumsy audiophiles who fear damaging their precarious cartridges; great for any potentially damaging use. This cartridge is literally unbreakable with any kind of reasonable record playing use.
SPECIFICATIONS:
Type:
Fixed Coil / Moving Iron
Mount:
Standard 0.5”
Stylus:
Elliptical Titanium Bonded, 0.20 mm round
Radius of Curvature:
6 x 17µm
Cantilever:
Aluminum Alloy
Recommended Tracking Force:
2.0g - 2.5g
Effective Tip Mass:
0.55 mg
Compliance:
10µm/mN
Frequence Response:
20Hz - 20kHz ± 2.5dB
Channel Separation @ 1kHz:
>26dB
Channel Separation @ 50Hz - 15kHz:
>20dB
Channel Difference:
<1.6dB
Output Voltage @ 5cm/sec:
>2.12mV (HIGH)
DC Resistance (DCR):
680Ohms
Coil Inductance per channel:
190mH
Suggested Preamp Gain:
38dB - 44dB
Cartridge Weight:
10.25g
Recommended Load Resistance:
≥47k Ohms
Warranty:
Workmanship on this product is warranted for two full years
