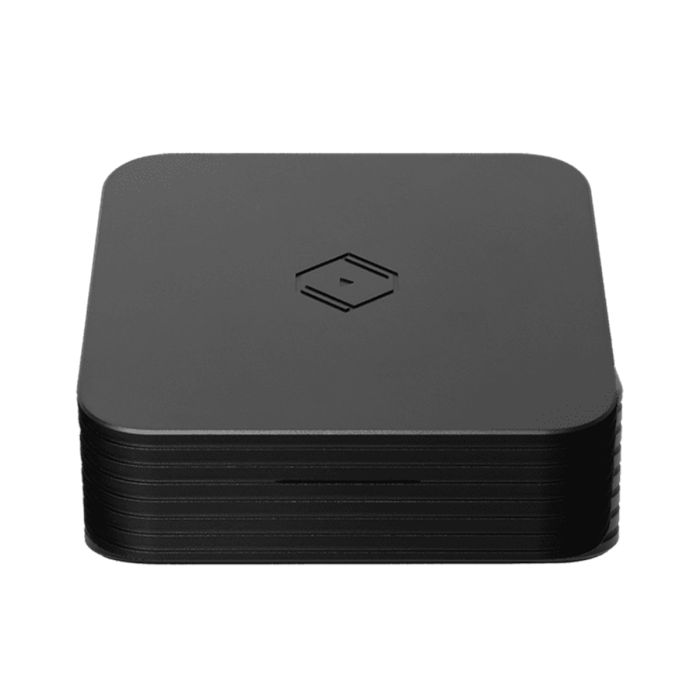

Silent Angel - Rhein Z1PLUS - 32G - 4T HiFi Music Server

Silent Angel - Rhein Z1PLUS - 32G - 4T HiFi Music Server
The Silent Angel Z1PLUS 32G 4T is a high-performance HiFi music server designed for digital audio systems that need more memory, larger internal storage, and stable playback support. Built around Silent Angel’s VitOS operating system, this version pairs the Z1 Plus platform with 32GB of RAM and a 4TB NVMe SSD for larger music collections and more responsive library management.
The Z1PLUS uses an Intel quad-core J6413 processor, dual Gigabit Ethernet ports, and Silent Angel’s second-generation USB Audio output with improved noise reduction. It supports PCM playback up to 768kHz / 32-bit, DSD playback up to DSD512, and Roon DSP transcoding up to DSD256. Support for Roon Server, Spotify Connect, AirPlay, DLNA Renderer, and HQPlayer NAA gives the Z1 Plus flexible playback options for both local libraries and network audio systems.
For audiophile system integration, the Z1 Plus includes a highly accurate TCXO clock, 25MHz external clock input, fanless thermal design, and a rigid 6061 aluminum alloy chassis. Graphene and copper heatsink construction helps move heat away from key components without fan noise, while the dual-network design separates network and player connections. The Z1PLUS 32G 4T is a strong digital foundation for users building a refined streaming system around an external DAC, word clock, and dedicated audio network.
FEATURES:
- High-performance HiFi music server with VitOS operating system
- Intel quad-core J6413 processor with 32GB RAM
- 4TB NVMe SSD storage for large music libraries
- Supports PCM playback up to 768kHz / 32-bit
- Supports DSD playback up to DSD512
- Roon DSP transcoding supports up to DSD256
- Dual Gigabit Ethernet ports separate network and player traffic
- USB Audio output optimized for external DAC connection
- 25MHz external clock input supports compatible clock upgrades
- 6061 aluminum alloy chassis with fanless cooling design
SPECIFICATIONS:
| Product Type | HiFi Music Server |
| CPU | Intel Quad-Core J6413 |
| RAM | 32GB DDR4 |
| Storage | 4TB NVMe SSD |
| Operating System | Silent Angel VitOS |
| Supported Audio Formats | PCM up to 768kHz / 32-bit, DSD playback up to DSD512 |
| Roon DSP Transcoding | Up to DSD256 |
| Ethernet Ports | 2 x Gigabit Ethernet |
| USB Audio Output | Second Generation USB Audio Output with Improved Noise Reduction |
| USB Expansion Ports | 2 x USB 3.1, 1 x USB 2.0 |
| Type-C Port | USB Type-C x 1 |
| Clock System | Highly Accurate TCXO Clock |
| External Clock Input | 25MHz x 1 |
| Clock Input Impedance | 50 ohms |
| Cooling Design | Fanless Graphene and Copper Heatsink System |
| Power Input | 12V DC / 3A |
| Operating Temperature | 32°F to 95°F (0°C to 35°C) |
| Storage Temperature | -4°F to 158°F (-20°C to 70°C) |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Storage Humidity | 5% to 95% RH, Non-Condensing |
| Dimensions (W x H x D) | 7.8" x 2.5" x 7.8" (200mm x 65mm x 200mm) |
| Weight | 7.9 lbs (3.6kg) |
| Warranty | One Year (3 years with registration) |
