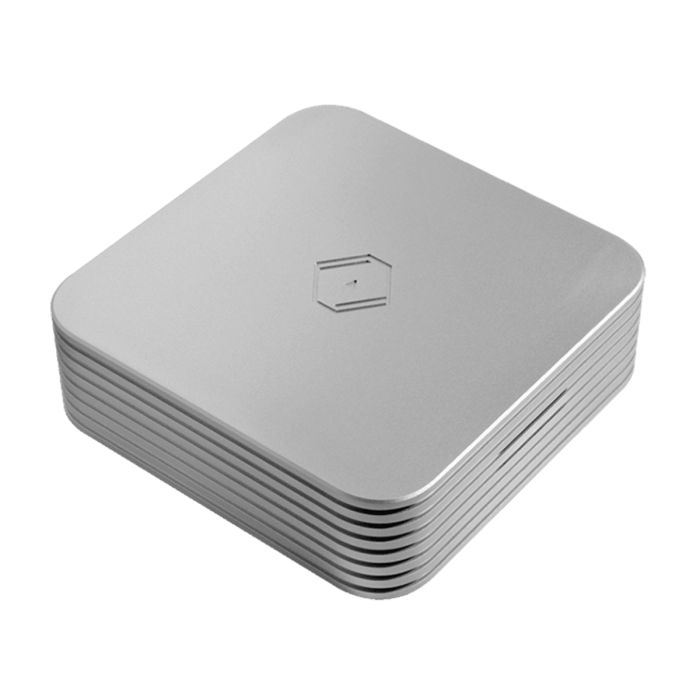

Silent Angel - Rhein Z1PLUS - 16G -250G HiFi Music Server
The Silent Angel Z1PLUS 16G 250G is a high-performance HiFi music server built for audiophiles who want dedicated digital playback hardware with lower noise and improved network isolation. Designed around Silent Angel’s VitOS operating system, the Z1 Plus combines advanced processing, dual-network architecture, and upgraded clocking technology in a compact chassis made for modern streaming systems.
Inside, the Z1PLUS uses an Intel quad-core J6413 processor with 16GB of DDR4 memory and a 250GB NVMe SSD for responsive music library management and stable playback. The server supports PCM playback up to 768kHz / 32-bit and DSD playback up to DSD512 through its optimized USB Audio output. Dual Gigabit Ethernet ports separate network and player traffic to help reduce interference, while support for Roon Server, Spotify Connect, AirPlay, DLNA Renderer, and HQPlayer NAA provides flexible playback integration.
The Z1 Plus also focuses heavily on reducing internal electrical noise through EMI filtering, advanced USB Audio noise reduction, and a fanless cooling system that uses graphene material and copper heatsinks to dissipate heat into the aluminum chassis. A 25MHz external clock input allows compatibility with Silent Angel Genesis word clocks for users seeking additional timing refinement, making the Z1PLUS a capable digital foundation for serious two-channel and headphone audio systems.
FEATURES:
- High-performance HiFi music server with VitOS operating system
- 250GB NVMe SSD storage for music library management
- Supports PCM playback up to 768kHz / 32-bit
- Supports DSD playback up to DSD512
- Dual Gigabit Ethernet ports separate network and player traffic
- USB Audio output optimized for external DAC connection
- 25MHz external word clock input supports timing upgrades
- Advanced EMI noise filtering and USB Audio noise reduction
- 6061 aluminum alloy chassis with fanless cooling design
SPECIFICATIONS:
| Product Type | HiFi Music Server |
| CPU | Intel Quad-Core J6413 |
| RAM | 16GB DDR4 |
| Storage | 250GB NVMe SSD |
| Supported Audio Formats | PCM up to 768kHz / 32-bit, DSD up to DSD512 |
| Streaming Support | Roon Server, Spotify Connect, AirPlay, DLNA Renderer, HQPlayer NAA |
| Ethernet Ports | 2 x Gigabit Ethernet |
| USB Audio Output | USB 3.1 (USB 2.0 compatible) |
| USB Expansion Ports | 2 x USB 3.1, 1 x USB 2.0 |
| Type-C Port | USB Type-C |
| Clock Input | 25MHz BNC External Clock Input |
| Clock Input Impedance | 50 ohms |
| Cooling Design | Fanless Graphene and Copper Heatsink System |
| Chassis Material | 6061 Aluminum Alloy |
| Power Input | 12V DC / 3A |
| Operating Temperature | 32°F to 95°F (0°C to 35°C) |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Dimensions ( W x H x D) | 7.87" x 2.56" x 7.87" (200mm x 65mm x 200mm) |
| Weight | 7.9 lbs (3.6kg) |
| Warranty | One Year (3 years with registration) |
