Silent Angel - Bonn N8 Pro - Audiophile-Grade Network Switch
SKU
SA-N8-Pro
Silent Angel - Bonn N8 Pro - Audiophile-Grade Network Switch is available to buy in increments of 1
No further discounts or coupons apply.
FREE delivery OVER $35 (USA ONLY)
30-day return

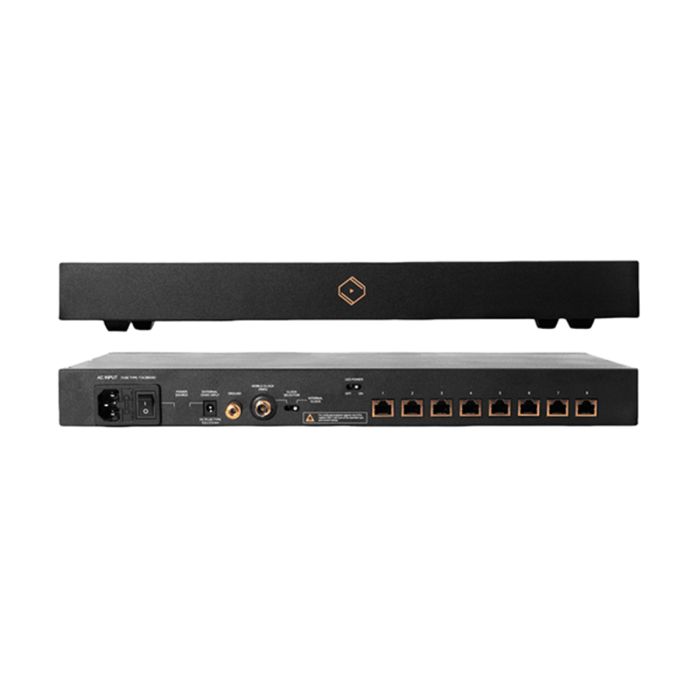

Silent Angel - Bonn N8 Pro - Audiophile-Grade Network Switch
Silent Angel Bonn N8 Pro is an audiophile-grade network switch designed for high-resolution streaming systems that depend on stable, low-noise network performance. It creates a dedicated HiFi network zone for audio components, helping separate music playback devices from general household network traffic. With eight gold-plated Gigabit Ethernet ports and a chassis designed for rack installation, the Bonn N8 Pro is built for serious network audio systems where streamers, servers, and NAS devices need a cleaner connection path.
The Bonn N8 Pro uses a Silent Angel TCXO clock module to help lower latency and jitter effects during network transmission. Silent Angel also includes an internal power module designed for noise-sensitive audio equipment, along with AC power input and an optional 12V DC input for users who want to connect an external linear power supply. The separated LAN port layout, gold-plated RJ45 connectors, and grounding terminal are all intended to reduce interference and support cleaner signal delivery across a streaming network.
For practical system integration, the Bonn N8 Pro includes an LED switch that lets users turn the rear LAN port indicators on or off during listening. It can be installed in a 19" rack with the included mounting brackets, and the quick product guide recommends proper ventilation clearance near the chassis. With Gigabit Ethernet support, external power upgrade capability, grounding support, and a purpose-built audio network design, the Silent Angel Bonn N8 Pro is a strong choice for streamers, music servers, DACs, and high-resolution playback systems.
FEATURES:
- Audiophile-grade 8-port Gigabit Ethernet network switch
- Spaced port layout helps reduce signal interference
- TCXO clock helps reduce network latency and jitter effects
- Internal switching power module designed for audio systems
- 12V DC input supports external linear power supply upgrades
- Gold-plated grounding terminal supports noise reduction
- LED switch turns LAN port indicators on or off
- Rack-mountable chassis with included mounting hardware
- Designed for high-resolution music streaming networks
SPECIFICATIONS:
| Product Type | Audiophile Network Switch |
| Model | Bonn N8 Pro |
| Available Models | N8 Pro without external Word Clock input; N8 Pro-CLK with 10MHz external Word Clock input no longer available |
| Ethernet Ports | 8 Pure Gold-Plated 1GbE RJ45 Ports |
| Ethernet Support | 1000Mbps and 100Mbps |
| External Clock Input | 10MHz BNC Word Clock Input on N8 Pro-CLK Model Only |
| AC Power Input | IEC AC, 100-240V, 50/60Hz |
| DC Power Input | 12V / 1A Max; 5.5mm x 2.5mm DC Plug |
| Power Consumption | 10W Max |
| Grounding | Gold-Plated Grounding Port |
| LED Control | LAN Port Indicator On/Off Switch |
| LED Indicators | Front Power LED; 8 Rear Port Status LEDs |
| Port Status Indicator | Green for 1000Mbps; Amber for 100Mbps |
| Operating Temperature | 32°F-86°F (0°C-30°C) |
| Storage Temperature | -4°F-158°F (-20°C-70°C) |
| Operating Humidity | 10%-90% RH, Non-Condensing |
| Storage Humidity | 5%-95% RH, Non-Condensing |
| Rack Installation | 19" Rack-Mountable with Included Mounting Brackets |
| Package Contents | N8 Pro, Power Cord, Ethernet Cable, Rubber Feet, Mounting Brackets, Mounting Screws, Quick Start Guide, Warranty Card |
| Dimensions (W x H x D) | 17.3" x 2.0" x 6.8" (441.20mm x 52.07mm x 175.01mm) |
| Weight | 5.7 lbs (2.6 kg) |
| Warranty | One Year (3 years with registration) |
