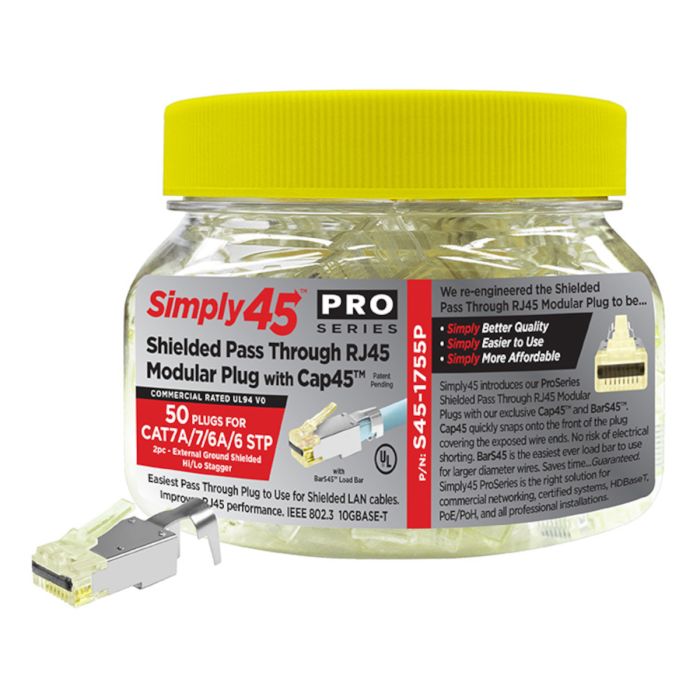

SCP - S45-1755P - Pass-Through with Cap45 - 50 piece (Jar)

SCP - S45-1755P - Pass-Through with Cap45 - 50 piece (Jar)
The SCP S45-1755P Pass-Through with Cap45 kit is designed to bring speed, consistency, and a clean finish to network cable terminations, making it a practical choice for professional installers and integrators. By combining pass-through connectors with protective caps in a convenient 50-piece jar, it supports efficient workflow while maintaining a polished, installation-ready appearance. The result is a termination solution that reduces guesswork and helps deliver repeatable, high-quality results in structured cabling environments.
At its core, this system uses pass-through RJ45 connectors that allow conductors to be fed through the front of the connector before termination, giving installers clear visual confirmation of proper wire order and placement. This approach reduces wiring errors and improves consistency, especially in high-volume installations. The included Cap45 strain relief boots add an extra layer of protection, helping secure the cable while minimizing stress at the termination point. Together, these components support stable signal transfer and long-term reliability, while also improving cable management and maintaining a clean, professional finish. Packaged in a durable jar, the set keeps components organized and easily accessible during installation work.
For installers seeking a more streamlined and dependable termination process, the S45-1755P Pass-Through with Cap45 kit offers a well-balanced solution that prioritizes both efficiency and finish quality. It simplifies one of the most detail-sensitive parts of network installation while supporting consistent performance over time. With its combination of ease-of-use and professional-grade results, it fits naturally into projects where reliability and presentation both matter.
FEATURES:
- Pass-through RJ45 connectors allow visual wire alignment before crimping
- Cap45 strain relief boots protect and secure terminations
- Simplifies cable prep and reduces wiring errors
- Supports consistent, professional termination results
- Improves cable management and finished appearance
- 50-piece jar keeps components organized and accessible
- Ideal for high-volume network cable installations
SPECIFICATIONS:
| Performance: | Meets or Exceeds ANSI/TIA 568-D.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7 |
| Wire Conductor(s) OD: | 23AWG: 1.15mm-1.35mm (0.045"-0.053") |
| Max LAN Cable OD: | 8mm (0.315") |
| Supports PoE/PoH: | Yes |
| Cable Fire Resistance Ratings: | Commercial Rated, CMP, CMR, CM, CMX, LSZH up to B2ca EuroClass |
| Flame Autoextinguish: | UL94 V0, IEC 60695-11-10 |
| Contact Material: | Phosphor Bronze - .012" thick |
| Contact Plating: | Min 50 Micro-Inch Pure Gold - 24 Carat Hard Gold Plate in contact area over 100 Micro-Inch Min Nickel Plating. Exceeds ANSI/TIA-1096-A specifications (formerly FCC Part 68) |
| Plug Material: | Polycarbonate |
| Shielded Material: | Hard Brass |
| Shielded Plating: | 80 Micro-Inch minimum Nickel Plating |
| Plug Tolerances and Dimensions: | Meets ANSI/TIA-1096-A specifications (formerly FCC Part 68) |
| Conductor Type(s): | Solid and Stranded |
| Operating Temperature: | -40° C to +70° C |
| Insertion/Extraction Life: | 2000 Minimum Cycles |
| Contact Resistance: | 20 Milli-ohms maximum |
| Current/Voltage: | 30 VAC/42 VDC at 1.5 Amps |
| Compliance: | UL Listed, RoHS, FCC, NEC |
