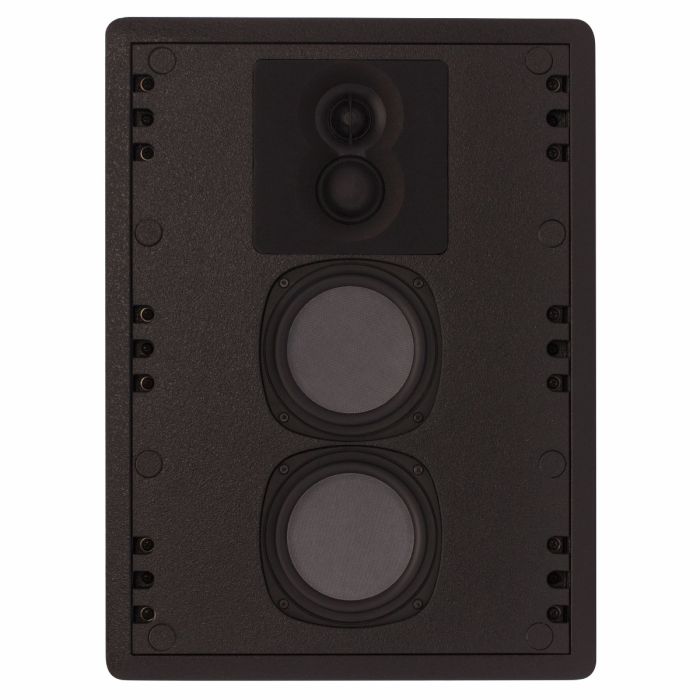

Phase Technology - CI120 - 3-Way In-Wall Speaker (Single)

Phase Technology - CI120 - 3-Way In-Wall Speaker (Single)
Versatile, high-performance in-wall speaker that can be used to compliment an upper-end home system. The CI120 uses the same woofers and midrange/tweeter assemblies as the Premier Collection series. The tweeter and midrange assembly absorb the horizontal sound waves through Unicell Acoustic treatment to minimize interaction with the mounting wall – resulting in amazingly precise imaging and clarity. Additionally, the CI120 employs Phase Tech’s patented Positive Clamping System, ensuring accurate control of low-end performance and a clear reproduction of the sound into the listening space. 3.75″ mounting depth allows this speaker to be mounted in shared walls.
SPECIFICATIONS:
Nominal Impedance
4 Ω
Sensitivity dB @ 2.83V/1M
88 dB
Frequency Response (1)
42 Hz - 22 kHz
Max. Continuous Power RMS
20 – 150 W
Recommended Power
20-150 Watts
Crossover Type
2-Way Absolute Phase™
Grill - Material
White Powder-Coated Glavanized Magnetic Micro Flange Grille (paintable)
Tweeter
1″ Soft Dome with Unicell™ Acoustic Treatment
Midrange
1.5″ Soft Dome with Unicell™ Acoustic Treatment
Woofer
5.25" RPF® Flat-Piston Fiberglass & Kevlar Composite Cone w/ NBR Surround
Cutout Height (Surface Mount Height)
18.12"
Cutout Width/Diameter
13.25"
Cutout Depth
3.75"
Weight
9.07 kg / 20 lb
Shipping Weight
12.70 kg / 28 lb
