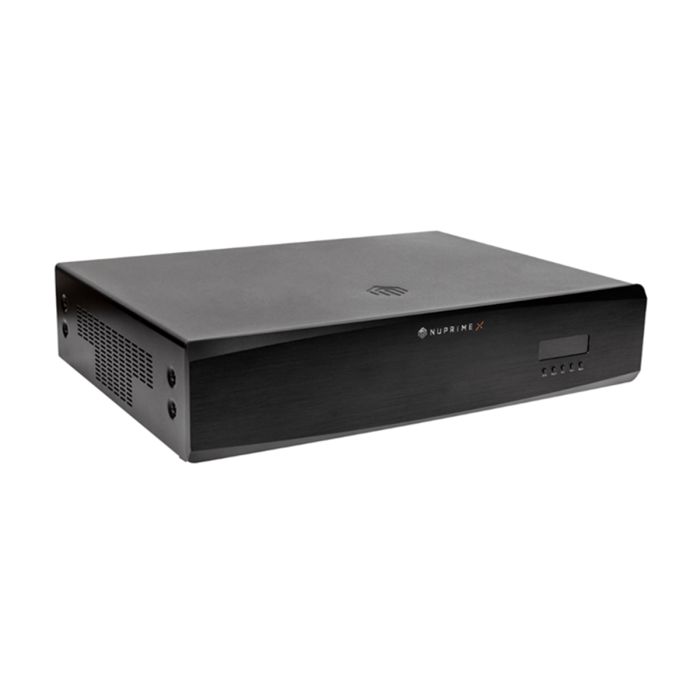

Nuprime-X - H16-AVP - HDMI Digital AV Home Theater Processor

Nuprime-X - H16-AVP - HDMI Digital AV Home Theater Processor
The Nuprime-X H16-AVP is a digital AV home theater processor designed for high-performance immersive audio systems. It decodes HDMI audio and provides AES3 digital audio outputs and XLR analog outputs, making it a strong fit for advanced home theater installations that use professional-style multichannel audio connectivity.
With support for Dolby Atmos up to 7.1.4, Dolby TrueHD, DTS:X, DTS-HD Master Audio, MPEG-H, and HDMI eARC, the H16-AVP is built for modern movie, music, and streaming playback. HDMI 2.0 connectivity includes 4 inputs and 1 output with HDCP 2.2, plus 3D, 4K HD video, Dolby Vision, HDR10, and HLG pass-through for high-quality video integration.
The H16-AVP also includes automatic room acoustic calibration for room EQ, channel loudness, and speaker distance compensation, with manual adjustment available for fine tuning. App control for iOS and Android, handheld remote support, 12V trigger output, and optional AoIP expansion make it a flexible processor for scalable Nuprime-X Fusion-X systems.
FEATURES:
- Digital AV home theater processor for immersive audio systems
- Decodes HDMI audio to AES3 digital and XLR analog outputs
- Supports Dolby Atmos up to 7.1.4 and Dolby TrueHD formats
- Supports DTS:X, DTS-HD Master Audio, and compatible HD audio formats
- HDMI 2.0 with 4 inputs and 1 output with HDCP 2.2 support
- Supports 3D and 4K HD video pass-through
- Dolby Vision, HDR10, and HLG support for HDR video systems
- Integrated automatic room acoustic calibration with manual adjustment
- iOS and Android app control with handheld remote support
- Optional AoIP plugin card for expanded system integration
SPECIFICATIONS:
| Product Type | Digital AV Home Theater Processor |
| Output Audio Format | Fixed to 24-bit / 48kHz |
| Input Audio Format | PCM up to 24-bit / 192kHz, Dolby TrueHD up to 24-bit / 192kHz, DTS-HD Master Audio up to 24-bit / 192kHz, Dolby Digital Plus and Dolby Atmos up to 24-bit / 192kHz |
| Immersive Audio Support | Dolby Atmos up to 7.1.4, DTS:X, MPEG-H |
| HDMI Inputs | 4 x HDMI |
| HDMI Output | 1 x HDMI eARC |
| HDMI Version | HDMI 2.0 with HDCP 2.2 |
| Video Support | 3D and 4K HD Video Transmission |
| HDR Support | Dolby Vision, HDR10, HLG |
| Digital Audio Outputs | 16 Channels AES3 on 2 x DB25 Ports |
| Analog Audio Outputs | 16 Channels XLR Analog on 2 x DB25 Ports |
| Balanced Outputs | 12 Channels XLR Balanced Outputs, 4Vrms |
| AoIP Support | Optional AoIP Plugin Card |
| Trigger Output | 12V Trigger Out |
| Room Calibration | Automatic Room Acoustic Calibration with Room EQ, Channel Loudness, and Speaker Distance Compensation |
| Control Options | iOS App, Android App, Handheld Remote |
| Power Supply | External AC Adapter to DC 12V / 2.5A |
| Dimensions (W x H x D) | 9.2" x 2.1" x 11.0" (235mm x 55mm x 281mm) |
| Weight | 6.6 lbs (3 kg) |
| Package Dimensions (W x H x D) | 15.35" x 3.15" x 14.17" (390mm x 80mm x 360mm) |
| Package Weight | 10.0 lbs (4.5 kg) |
