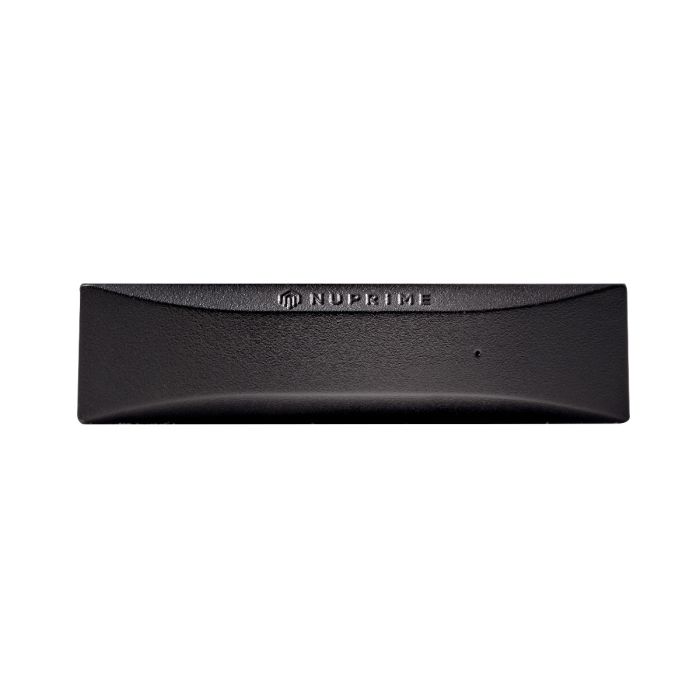

NuPrime - ARC Mini - High Performance Digital Audio Converter
SKU
NP-ARC-MINI
For more information on purchasing, please send us a message. Or, call 877-370-1972. Thank you.
NuPrime - ARC Mini - High Performance Digital Audio Converter is available to buy in increments of 1
No further discounts or coupons apply.
FREE delivery OVER $35 (USA ONLY)
30-day return
NuPrime - ARC Mini - High Performance Digital Audio Converter
The NuPrime ARC Mini is a compact HDMI ARC audio converter designed to connect a modern television or media player to a high-performance digital audio system. Rather than simply extracting the ARC signal and passing it directly to an output, the ARC Mini internally converts HDMI ARC to I²S and uses a master clock to improve timing accuracy and reduce jitter. This architecture is intended to provide a cleaner, more stable digital signal for an external DAC, integrated amplifier, or other compatible component.
A single HDMI ARC input accepts stereo PCM audio from a compatible television or source device, while three digital output options provide flexible system integration. Users can connect through conventional coaxial S/PDIF, optical Toslink, or NuPrime’s Digital Port when pairing the ARC Mini with compatible NuPrime equipment. Stereo PCM playback is supported at resolutions up to 24-bit/192kHz, making the ARC Mini suitable for high-resolution two-channel audio systems.
Measuring only 3.43 inches wide and weighing approximately 0.18 pounds, the ARC Mini can be positioned discreetly behind a television, beside a DAC, or within a crowded equipment rack. Power is supplied by a 5V USB-C connection, minimizing the need for a large external power supply. Its straightforward digital-only design makes it a practical way to add HDMI ARC connectivity to an audio system that otherwise relies on coaxial, optical, or NuPrime digital inputs.
FEATURES:
- High-performance HDMI ARC audio converter for TVs and media players
- Converts HDMI ARC internally to I²S for precision digital processing
- Master clock architecture helps reduce jitter and improve timing accuracy
- Outputs clean digital audio to compatible DACs and audio components
- Coaxial S/PDIF digital audio output
- Optical Toslink digital audio output
- NuPrime Digital Port output for compatible NuPrime components
- Supports stereo PCM audio up to 24-bit/192kHz
- Provides a stable digital signal path for high-fidelity audio systems
- Ideal for integrating modern TVs with external DACs and stereo systems
- Compact chassis fits easily behind TVs or within audio racks
- USB-C powered for convenient installation
- Requires a 5V DC power source
- Lightweight 0.08kg design
- Available in black finish
SPECIFICATIONS:
| Product Type | HDMI ARC Digital Audio Converter |
|---|---|
| Model | ARC Mini |
| Digital Input | 1 x HDMI ARC (Audio Return Channel) |
| Coaxial Output | 1 x S/PDIF Coaxial |
| Optical Output | 1 x Toslink Optical |
| NuPrime Digital Output | 1 x NuPrime Digital Port |
| Internal Conversion | HDMI ARC to I²S with Master Clock |
| Supported Audio Format | Stereo PCM |
| Maximum Audio Resolution | 24-Bit/192kHz |
| Power Supply | 5V DC via USB-C |
| Dimensions (W x H x D) | 3.4" x 0.8" x 2.3" (87mm x 22mm x 59mm) |
| Weight | 0.18 lbs. (0.08kg) |
| Color | Black |
