Music Hall - PA2.2 - Phono / A2D / Headphone Preamplifier
SKU
MH-PA2.2
SPECIAL ORDER: Please allow approximately 1 week for processing and shipping. For more information, please send us a message. Or, call 877-370-1972. Thank you.
Music Hall - PA2.2 - Phono / A2D / Headphone Preamplifier is available to buy in increments of 1
FREE delivery OVER $35 (USA ONLY)
30-day return

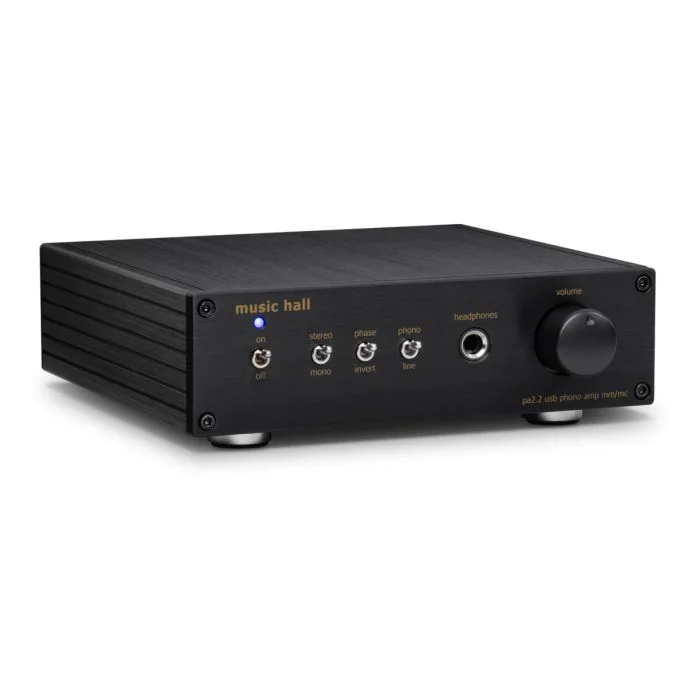

Music Hall - PA2.2 - Phono / A2D / Headphone Preamplifier
Introducing the Music Hall PA2.2 Phono, A2D, & Headphone Preamplifier, a versatile and high-performance audio component designed to enhance your listening experience. Whether you're spinning vinyl records, digitizing your collection, or enjoying music through headphones, the PA2.2 delivers exceptional sound quality and functionality.
With its built-in phono preamplifier, the PA2.2 ensures accurate and detailed playback of your favorite vinyl records. It boasts a precise RIAA equalization curve and low-noise operation, preserving the nuances of analog recordings and providing a lifelike listening experience. Additionally, the A/D converter allows you to digitize your vinyl collection with ease, converting analog audio signals into high-quality digital files for archival or playback on digital devices.
Equipped with a powerful headphone amplifier, the PA2.2 offers an immersive listening experience for headphone enthusiasts. Whether you prefer open-back or closed-back headphones, the PA2.2 drives headphones with authority, delivering dynamic sound with exceptional clarity and detail. Its compact design and intuitive controls make it an ideal companion for any audio setup, whether you're enjoying vinyl records or digital music files. Experience the versatility and performance of the Music Hall PA2.2 Phono, A2D, & Headphone Preamplifier, and take your listening experience to the next level.
FEATURES:
- Versatile preamplifier for vinyl, digital, and headphone audio
- Built-in analog-to-digital converter (ADC) for digitizing vinyl records
- Ensures pristine sound reproduction and accurate signal amplification
- Sleek and compact design complements any audio setup
- Audiophile-grade components for immersive listening experience
- 1-Year Manufacturer's Limited Warranty
SPECIFICATIONS:
| MM input impedance: | 47k Ohms | 220pF |
| MC input impedance: | 100 Ohms + 1pF |
| Analog line-level input impedance: | 47k Ohms |
| MM gain @ 1kHz: | 39dB |
| MC gain @ 1kHz: | 59dB (20dB gain) | 65dB (26dB gain) |
| MM input sensitivity @ 316mV output: | 3.3mV |
| MC input sensitivity @ 316mV output: | 0.4mV (20dB gain) | 0.2mV (26dB gain) |
| MM SNR unweighted: | 70dB |
| MC SNR unweighted: | 75dB (20dB gain) | 70dB (26dB gain) |
| Analog SNR: | 120dB |
| MM THD+N (10mV in): | <0.01% |
| MC THD+N (1mV in & 20dB gain): | <0.05% |
| MC THD+N (1mV in & 26dB gain): | <0.05% |
| Analog THD+N: | <0.01% |
| RIAA curve accuracy: | ±0.3dB |
| MM Crosstalk: | 65dB |
| MC Crosstalk: | 65dB (20dB gain) | 60dB (26dB gain) |
| Line-level input crosstalk: | 63dB |
| Line-level output impedance: | 270 Ohms |
| Headphone stage output impedance: | 2 Ohms |
| Headphone stage maximum output level: | 6.8V |
| Headphone stage THD+N: | <0.02% |
| Inputs: | 3 x RCA, 1 x MM, 1 x MC, 1 x Line |
| Outputs: | 2 x RCA, 1 x variable, 1x fixed 1 x headphone |
| A/D Converter: | Wolfson WM 8786, Tenor TE7022L 24-bit Delta Sigma |
| Sampling Rates: | 8kHz, 16kHz, 32kHz, 44.1kHz, 48kHz, 96kHz |
| USB Output: | USB 2.0 |
| USB output bitrate: | max 24-bit | linear PCM |
| USB output sampling frequency: | max 96kHz |
| Dimensions: | H 2" x W 6.3" x D 6.7" (H 51mm x W 161mm x D 171mm) |
| Weight: | 21 lbs (9.5kg) |
