The Magnetar ULTIMA Universal Media Transport brings your movie and music collections together in a dedicated digital source for high-performance audio and home theater systems. The ULTIMA supports UHD Blu-ray, Blu-ray, DVD, CD, SACD, and DVD-Audio, along with USB and network media playback. ULTIMA accommodates both physical discs and file-based media. Dolby Vision and HDR10+ support extend its versatility for compatible displays and home theater systems.

At the heart of ULTIMA is a battery-assisted DC power architecture incorporating dedicated BYD lithium-based power stages. Designed to reduce electrical noise affecting critical processing and signal pathways, this system works alongside precision clocking, optimized grounding, and isolated circuitry. A unified 10 MHz master reference synchronizes system clocks, while the crystal oscillator module provides 0.01–0.05 ppm stability and phase noise below -150 dB to support accurate digital signal timing.

Built for connection to external DACs and AV processors, ULTIMA provides separate main and audio-only HDMI outputs, plus coaxial and AES digital audio outputs with DoP support via AES. Its reinforced chassis helps minimize vibration and resonance, while isolated internal compartments help protect sensitive circuits from interference.

FEATURES:

Universal playback supports UHD Blu-ray, Blu-ray, DVD, CD, SACD, and DVD-Audio.
Dolby Vision and HDR10+ support for compatible home theater systems.
USB and network media playback supports physical and file-based collections.
Dedicated digital transport design for use with external DACs and AV processors.
Battery-assisted DC power architecture incorporates dedicated BYD lithium-based power stages.
Synchronized clock architecture uses a unified 10 MHz master reference.
Precision crystal oscillator delivers 0.01–0.05 ppm stability and phase noise below -150 dB.
Separate main and audio-only HDMI outputs provide flexible system integration.
AES and coaxial digital outputs accommodate external audio components, with DoP supported via AES.
Reinforced chassis and isolated internal compartments help control vibration and electrical interference.

SPECIFICATIONS:

Manufacturer	Magnetar
Model	ULTIMA
Product Type	Universal digital media transport
Supported Disc Formats	UHD Blu-ray, Blu-ray, DVD, CD, SACD, DVD-Audio
HDR Format Support	Dolby Vision, HDR10+
Additional Media Support	USB and network media playback; DSD/DoP support
HDMI Outputs	1 main HDMI output; 1 audio-only HDMI output
Additional Digital Audio Outputs	1 coaxial output; 1 AES output
DoP Output	Supported via AES
USB Connection	Rear USB 3.0 port
Network Connection	100 Mbps Ethernet LAN
Control Connection	RS-232C
Clock Architecture	Synchronized system clocks derived from a unified 10 MHz master reference
Crystal Oscillator Stability	0.01–0.05 ppm
Crystal Oscillator Phase Noise	Below -150 dB
Clock Connection	Rear connector labeled 10M CLOCK
Power Architecture	Battery-assisted DC power with dedicated BYD lithium-based power stages
External Power Unit AC Rating	100–240 V AC, 50/60 Hz, 40 W, as labeled on the rear panel
Chassis Construction	Reinforced chassis with isolated internal compartments and vibration management

Only registered users can write questions. Please Sign in or Create an account

Write Your Own Review

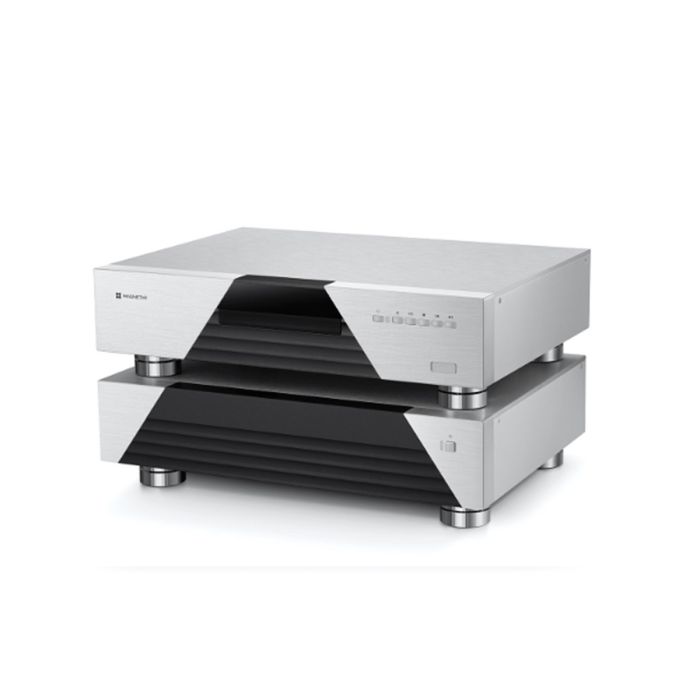

Magnetar - ULTIMA Reference Universal Media Transport
