Kuzma - Stabi Reference 2 Turntable with New Digital PS

Kuzma - Stabi Reference 2 Turntable with New Digital PS
Kuzma - Stabi Reference 2 Turntable with New Digital PS Kuzma - Stabi Reference 2 Turntable with New Digital PS Kuzma - Stabi Reference 2 Turntable with New Digital PS

Kuzma - Stabi Reference 2 Turntable with New Digital PS

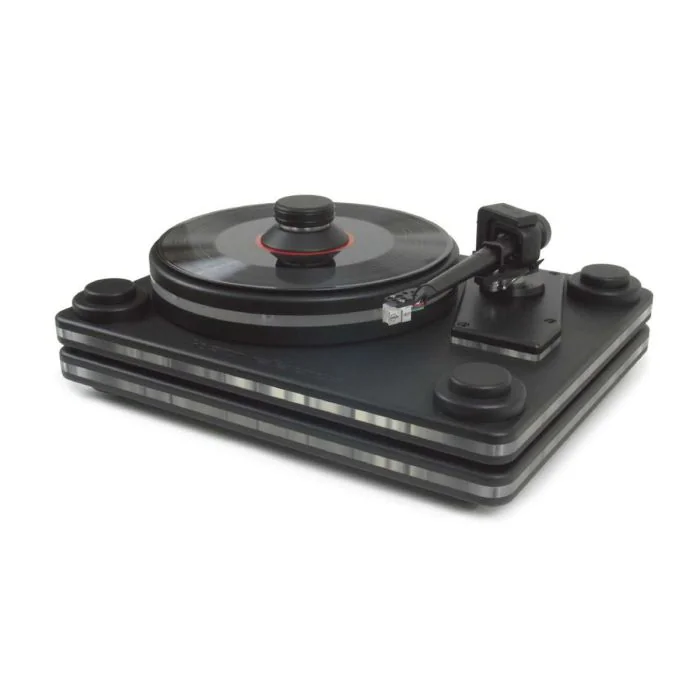

This sleek yet ultra-refined manual turntable is constructed from two plates.

(Shown with Kuzma Airline Tonearm)

Each plate is made from a sandwich construction of two 10 mm aluminum plates, separated by an acrylic plate clamped together with pre-stressed, nonmagnetic, stainless steel screws.

The turntable chassis (top plate) is suspended by large springs submerged in silicone oil, with a low resonance of 2.2 Hz, which dampen movement of the springs themselves. The main base (bottom plate) is supported by three aluminum and stainless steel spikes.

The top plate is easily levelled by four knobs, one at each corner. When this plate is lifted (for transport) the silicone suspension reservoirs are automatically sealed.


Two symmetrically-opposed motors power the sub-platter, which has an inverted bearing with a ruby ball. Both ball and sliding ring have their own oil bath for lubrication and damping of any vibration within the bearing. The platter is also of a clamped sandwich construction, in order to combine the strength of aluminium (rigidity) and the damping properties of acrylic, which produces an exceptionally stable and nonresonant platter. The mat and special clamp are made in much the same way as the platter, and further serve to control all vibration. The arm board also employs the sandwich construction design. The new electronic power supply PS REF2 generates controlled feed from a computer generated signal to both motors, in such a way that the vibration of the motors is minimised and speed adjustment precise and simple.

Note: Tonearm sold separately.

Note: This item is only available to be shipped within the United States.

Note: Not all Kuzma products are in-stock items. Accordingly, delivery may take 2-4 weeks. Please call for availability.

FEATURES:

  • Mass: 40 kg
  • External dimensions: 500 x 400 x 200 mm
  • Weight of platter: 8 kg
  • Resonance of subchassis: 2.2 Hz (damped)
  • Speeds: 33, 45 rpm
  • Mat: textile & rubber
  • Motor: AC 24 poles, 2 pcs
  • Mains supply (non selectable): 110 V - 240 V; 50/60 Hz

SPECIFICATIONS:


Manufacturer:  Kuzma
Model Number:  Stabi Reference 2
Operation:  Manual
Drive System:  Belt
Motor:  AC 24 poles, 2 pcs
Speeds:  33 1/3, 45 RPM
Speed Deviation:  N/A
Speed Select:  N/A
Pitch Control:  N/A
Power Supply:  110 V 50 Hz, PSREF2
Power Consumption:  N/A
Power Cord:  N/A
Wow & Flutter:   N/A
Rumble:   N/A
Motor Mount:  N/A
Cue Control:   N/A
Platter Size:   N/A
Platter Weight:   17 lbs (8 kg)

TONEARM

Length:  Not included
Bearing:  N/A
Bearing Yoke:  N/A
Tube Material:  N/A
Effective Mass:  N/A
Distance from Record Center:  N/A
Overhang:  N/A
Mounting Hole Diameter:  N/A
Arm Board Thickness:  N/A
Adjustable Arm Height:  N/A
Tonearm Cable:  N/A
Ground Wire:  N/A
External Connectors:  N/A
Interconnects:  N/A
Cable Capacitance:  N/A
Anti-Skating:  N/A

CARTRIDGE

Headshell:  Not Included
Headshell Offset Angle:  N/A
Cartridge Weight:  N/A
Cartridge Type:  N/A
Tracking Force:  N/A
Frequency Response:  N/A
Capacitance:  N/A

GENERAL

Dimensions:

 19.69" (W) x 15.75" (D) x 7.87" (H)

 500 (W) x 400 (D) x 200 (H) mm

Shipping Dimensions:  N/A
Weight:  88 lbs (40 kg)
Shipping Weight:  N/A
Dustcover:  N/A
Finish:  Black
Clamp:  Included
Accessories:  N/A
