Ice Cable - 22-2FPLR - 500' Fire Alarm/Audio Cable (Spool)
SKU
ICE-22-2FPLR/Red/500
FREE delivery OVER $35 (USA ONLY)
30-day return
Ice Cable - 22-2FPLR - 500' Fire Alarm/Audio Cable (Spool)
If you are looking for a reliable and durable cable for your commercial or residential audio applications, Ice Cable 22-2 Fire Alarm/Audio Cable might be the right fit for you. With this cable, you can ensure excellent audio quality and minimize signal interference. Its construction and design make it an excellent option for commercial sound systems, intercom systems, and security systems.

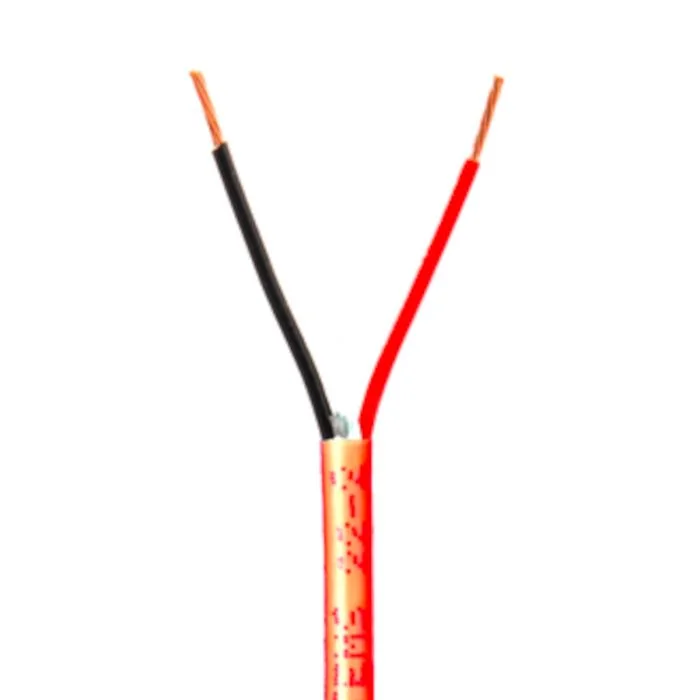

Ice Cable 22-2 Fire Alarm/Audio Cable is a fire-resistant plenum-rated cable that is suitable for use in commercial buildings. It features two stranded copper conductors with a red FPLR-rated PVC jacket. The jacket provides excellent protection against fire, making it suitable for use in plenum spaces. It also features a low capacitance, which minimizes signal loss and ensures excellent audio quality.
In addition to its excellent construction, Ice Cable 22-2 Fire Alarm/Audio Cable comes in a convenient spool of 500' (152.4m), making it easy to install and work with. It is suitable for use in a wide range of applications, including speaker wire, intercom systems, and security systems. Its compact design and easy installation process make it an ideal choice for contractors looking to save time and reduce costs while still delivering high-quality results to their clients.
FEATURES:
- 22 AWG solid bare copper conductors for reliable signal integrity
- PVC insulation and outer jacket for durability and flame resistance
- UL Listed CL3 / FPLR / FT4 rated for in-wall fire alarm applications
- High temperature rating of -4 °F to 167 °F (-20 °C to +75 °C)
- Dielectric strength rated at 500 V AC for 1 minute
- Excellent insulation resistance ≥ 100 MΩ·km @ 20 °C
- Low conductor resistance ≤ 22.7 ohms/km for efficient signal transmission
- Includes rip-cord for easy jacket removal during installation
- Supplied in a 500 ft (152.4 m) pull box for convenient field use
- Complies with UL 444, NFPA 262, and CSA FT4 safety standards
SPECIFICATIONS:
| Model: | 22-2 FPLR (Red) |
| Conductors: | 2 cores |
| Gauge: | 22 AWG |
| Conductor Construction: | Solid bare copper (1/0.643 mm dia.) |
| Insulation Material: | PVC (Polyvinyl Chloride) |
| Insulation Nominal Thickness: | 0.20 mm (0.008″) |
| Insulation Diameter: | 1.15 mm (0.045″ approx.) |
| Rip-cord: | 1000D nylon thread under jacket |
| Jacket Material: | PVC (Polyvinyl Chloride) |
| Jacket Nominal Thickness: | 0.40 mm (0.016″) |
| Overall Cable Diameter: | 3.60 mm (0.142″ approx.) |
| Jacket Color: | Red |
| Rated Voltage: | 300 V RMS |
| Rated Temperature: | -20 °C to +75 °C (-4 °F to 167 °F) |
| Max Conductor Resistance (20 °C): | ≤ 22.7 ohms/km |
| Dielectric Strength: | AC 500 V / 1 minute |
| Insulation Resistance: | ≥ 100 MΩ·km at 20 °C |
| Compliance / Listing: | c(UL) CL3, UL FT4, FPLR rated – UL 444, NFPA 262, CSA FT4 |
| Application: | Power-limited circuit cable for fixed wiring in buildings (Class 3 & Class 2 circuits) |
| Packaging / Length: | Box 500 ft (152.4 m) spool (red jacket) |
