Future Automation - RF-KIT - RF Remote & Receiver
SKU
FA-RF-KIT
Future Automation - RF-KIT - RF Remote & Receiver is available to buy in increments of 1
No further discounts or coupons apply.
FREE delivery OVER $35 (USA ONLY)
30-day return

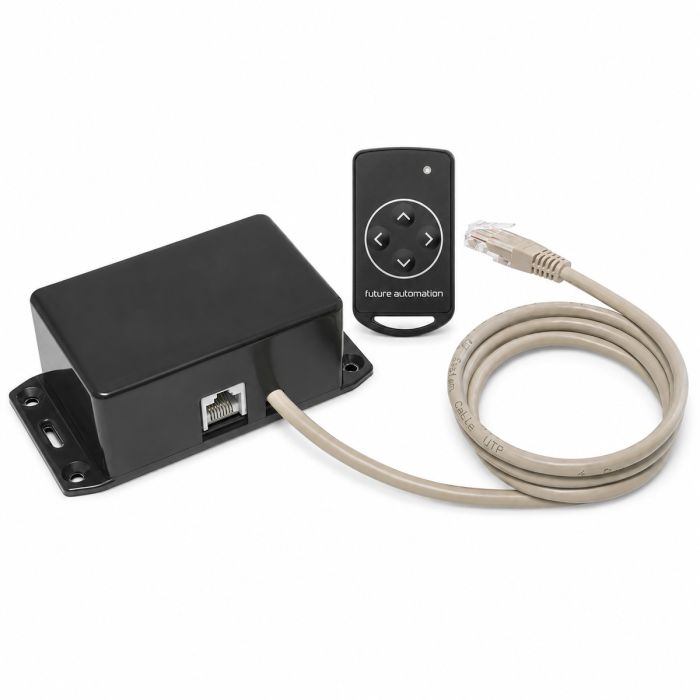

Future Automation - RF-KIT - RF Remote & Receiver Kit
The Future Automation RF-KIT is a radio-frequency remote and receiver kit designed to add wireless control to compatible Future Automation mechanisms. Unlike infrared control, RF operation does not require a direct line of sight between the handheld controller and receiver, making the RF-KIT particularly useful for hidden installations such as television lifts concealed inside cabinets, furniture, or architectural structures.
The compact RF receiver connects to the Contact Closure port on the mechanism's control board and relays commands from the handheld remote directly to the mechanism. An integrated extension port allows additional contact closure inputs to remain connected, preserving compatibility with other control systems. The RF controller works in synchronization with the mechanism's contact closure commands, providing standard IN, OUT, and STOP functions along with additional CC4 and CC5 commands when supported by the specific mechanism.
Designed for straightforward system integration, the RF-KIT includes a pairing function for learning a controller and an LED indicator that confirms button activation. Its compact receiver measures approximately 4 5/16" x 2 3/16" x 1 9/16" (110 x 56 x 39mm), allowing it to be installed discreetly near the mechanism control system. Future Automation lists the RF-KIT for indoor and outdoor applications as well as marine and non-marine installations, making it a flexible control accessory for a wide range of automated AV systems.
FEATURES:
- RF remote control and receiver kit for compatible Future Automation mechanisms
- Radio-frequency operation does not require line of sight to the receiver
- Ideal for concealed mechanisms such as TV lifts installed inside cabinetry
- Receiver connects directly to the mechanism control board Contact Closure port
- Pass-through extension port retains additional contact closure functionality
- RF receiver relays remote commands directly to the mechanism control box
- Remote buttons operate in synchronization with the mechanism contact closure commands
- Supports IN, OUT, STOP, and additional programmable contact closure commands
- LED indicator on the RF controller confirms button activation
- Pairing function allows a replacement or additional controller to be learned
- Learned controller programming can be cleared directly from the receiver
- Compact receiver enclosure supports discreet installation near the mechanism control system
- Suitable for indoor and outdoor installations
- Suitable for marine and non-marine applications
SPECIFICATIONS:
| Product Code | RF-KIT |
| Product Type | RF Remote & Receiver Kit |
| Control Type | Radio Frequency (RF) |
| Line of Sight Required | No |
| Receiver Connection | Mechanism Control Board Contact Closure Port |
| Contact Closure Pass-Through | Yes, via Extension Port |
| RF Commands | CC1 IN, CC2 OUT, CC3 STOP, CC4, CC5 |
| CC4 / CC5 Configuration | Selectable via Connection Jumper; Command Function Depends on Compatible Mechanism |
| Controller Indicator | Red LED |
| Controller Pairing | Yes |
| Receiver Overall Dimensions (W x D x H) | 4 5/16" x 2 3/16" x 1 9/16" (110mm x 56mm x 39mm) |
| Receiver Enclosure Width | 3 3/8" (85mm) |
| Mounting Hole Spacing | 3 7/8" x 1 1/2" (99mm x 39mm) |
| Mounting Hole Diameter | 3/16" (4mm) |
| Application | Compatible Future Automation Mechanisms with Contact Closure Control |
| Indoor / Outdoor Suitable | Yes |
| Marine Suitable | Yes |
