Future Automation - PS-M - Indoor Marine Pull & Swivel TV Wall Mount
SKU
FA-PS-M
SPECIAL ORDER: Please allow approximately 3 weeks for processing and shipping. For more information, please send us a message. Or, call 877-370-1972. Thank you.
Future Automation - PS-M - Indoor Marine Pull & Swivel TV Wall Mount is available to buy in increments of 1
No further discounts or coupons apply.
FREE delivery OVER $35 (USA ONLY)
30-day return
Future Automation - PS-M - Indoor Marine Pull & Swivel TV Wall Mount

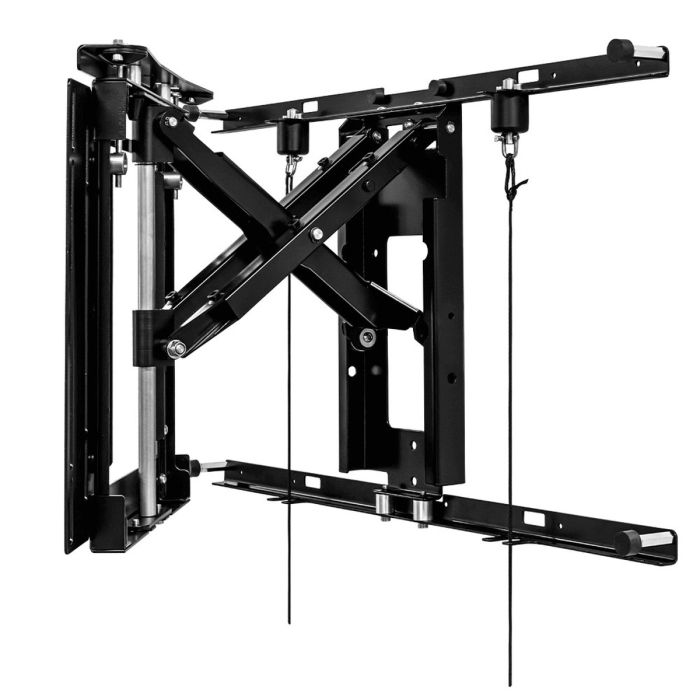

The Future Automation PS-M is a marine-suitable manual TV wall mount designed to provide convenient access to the rear of a display for servicing and maintenance. Its articulated scissor-arm mechanism allows the screen to pull forward and swivel, giving installers easy access to display connections, cables, and rear-mounted AV equipment without removing the television from the wall.
Spring-loaded catches secure the display against the wall when the mount is closed. Pull cords release the catches when access is required, while the integrated marine locking system helps prevent unwanted screen movement in indoor marine environments. Adjustable corner buffers improve stability, and dedicated routing points guide the release cords toward the outer edges of the display.
Available in PS32-M, PS40-M, PS55-M, PS65-M, and PS80-M configurations, the series supports screens ranging from 32" to 110". Depending on the model, the PS-M provides up to 23 7/16" of extension, bidirectional rotation up to 50°, and a maximum weight capacity of 265 lbs. Its slim closed depth, integrated cable-management points, adjustable friction, and screen-level adjustment make it a versatile solution for professionally installed marine entertainment systems.
FEATURES:
- Designed for indoor marine entertainment and AV installations
- Pull-and-swivel design provides convenient rear display access
- Marine locking system holds the display securely against the wall
- Spring-loaded catches release using installer-accessible pull cords
- Articulated scissor arms provide smooth and controlled manual movement
- Bidirectional screen rotation of up to 50°, depending on model
- Extends up to 23 7/16" from the wall, depending on model
- Supports displays from 32" to 110", depending on configuration
- Maximum weight capacity of up to 265 lbs with the PS80-M
- Adjustable buffers stabilize the corners of the display
- Integrated cable tie points help manage power and signal cables
- Adjustable friction allows installers to refine pull resistance
- Screen-level adjustment helps achieve accurate final alignment
- Supports multiple standard VESA mounting patterns
- Satin black RAL 9005 finish with custom finishes available
- Optional adapters are available for select displays and mounting requirements
SPECIFICATIONS:
| Product Code | PS32-M | PS40-M | PS55-M | PS65-M | PS80-M |
| Bolt Pattern: | H: 400, 300, 200, 100 W: 400, 300, 200, 100 |
H: 400, 300, 200, 100 W: 400, 300, 200, 100 |
H: 400, 300, 200, 100 W: 400, 300, 200, 100 |
H: 400, 300, 200, 100 W: 400, 300, 200, 100 |
H: 700, 600, 500, 400, 300, 200, 100 W: 800, 700, 600, 500, 400, 300, 200, 100 |
| Finish: | RAL 9005 Black Satin; Custom Available | RAL 9005 Black Satin; Custom Available | RAL 9005 Black Satin; Custom Available | RAL 9005 Black Satin; Custom Available | RAL 9005 Black Satin; Custom Available |
| Marine Suitable: | Indoor Only | Indoor Only | Indoor Only | Indoor Only | Indoor Only |
| Maximum Extension From Wall: | 11.8" (300mm) | 15.7" (400mm) | 19.7" (500mm) | 23.4" (595mm) | 22.4" (569mm) |
| Maximum Rotation: | Up to 50° Bidirectional | Up to 45° Bidirectional | Up to 50° Bidirectional | Up to 50° Bidirectional | Up to 40° Bidirectional |
| Maximum Screen Dimensions: | Limited by weight and desired rotation angle | Limited by weight and desired rotation angle | Limited by weight and desired rotation angle | Limited by weight and desired rotation angle | Limited by weight and desired rotation angle |
| Maximum Weight Capacity: | 132 lbs (60kg) | 132 lbs (60kg) | 132 lbs (60kg) | 132 lbs (60kg) | 265 lbs (120kg) |
| Minimum Depth From Wall: | 2.2" (56mm) | 2.2" (56mm) | 2.2" (56mm) | 2.2" (56mm) | 3.6" (91mm) |
| Movement Type: | Manual | Manual | Manual | Manual | Manual |
| Outdoor Suitable: | No | No | No | No | No |
| Product Dimensions: | 17.2" x 27.6" x 2.2" (437mm x 700mm x 56mm) | 21.9" x 27.6" x 2.2" (557mm x 700mm x 56mm) | 26.6" x 27.6" x 2.2" (677mm x 700mm x 56mm) | 31.4" x 27.6" x 2.2" (797mm x 700mm x 56mm) | 31.3" x 35.4" x 3.6" (795mm x 900mm x 91mm) |
| Product Weight: | 20.7 lbs (9.4kg) | 25.4 lbs (11.5kg) | 29.8 lbs (13.5kg) | 33.5 lbs (15.2kg) | 53 lbs (24kg) |
| Recommended Screen Sizes: | 32"–43" | 40"–75" | 55"–75" | 65"–75" | 65"–110" |
DOWNLOADS:
Future Automation - PS-M - Instructions Manual (PDF)
Future Automation - PS32 - M - Technical Specifications (PDF)
Future Automation - PS40 - M - Technical Specifications (PDF)
Future Automation - PS55 - M - Technical Specifications (PDF)
Future Automation - PS65 - M - Technical Specifications (PDF)
Future Automation - PS80 - M - Technical Specifications (PDF)
