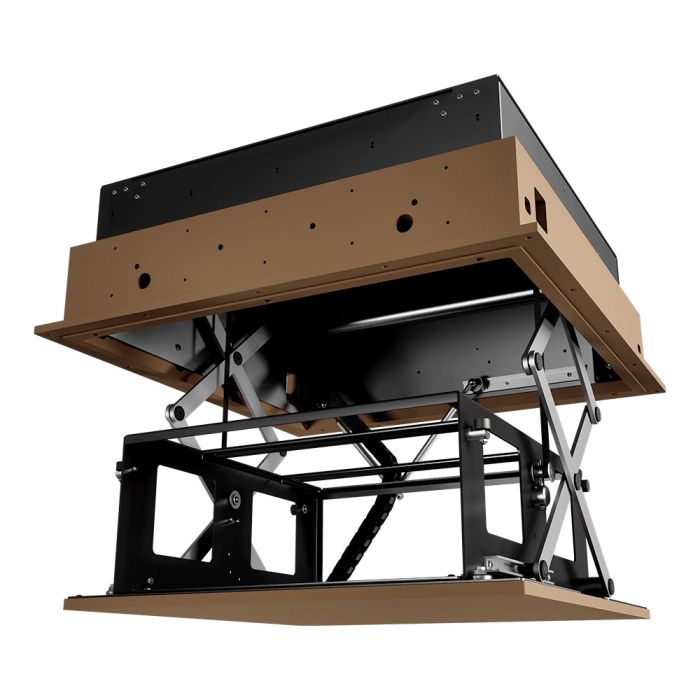

Future Automation - PDR-RES - In-Ceiling Residential Projector Drop
SKU
FA-PDR-RES
CUSTOM BUILT: This product may take approximately 6-8 weeks for processing and shipping. For specific availability information please send us a message. Or, call 877-370-1972. Thank you.
Future Automation - PDR-RES - In-Ceiling Residential Projector Drop is available to buy in increments of 1
No further discounts or coupons apply.
FREE delivery OVER $35 (USA ONLY)
30-day return
Future Automation - PDR-RES - In-Ceiling Residential Projector Drop
The PDR-RES Projector Drop is Future Automation's latest-generation projector lift mechanism, designed specifically for residential home cinema installations. Its universal projector mounting system and adjustable drop distance provide the flexibility needed for a wide range of projector models, ceiling heights, and room layouts. Motorized operation allows the projector to remain completely concealed when not in use, then lower smoothly into the correct viewing position when your theater system is activated.
Designed with residential integration in mind, the PDR-RES features a pre-installed MDF framework with a Plaster In Edge for a clean, nearly seamless ceiling finish. This design eliminates the visible on-ceiling flange found with many traditional projector lifts, leaving only a narrow 3mm (1/8") shadow gap around the lid when closed. The framework can be installed during the first-fix stage, allowing the ceiling to be finished before the mechanism itself is fitted.
Spring-loaded locks allow the projector mechanism to click securely into the pre-installed framework at a later stage, helping simplify installation and future servicing. Carefully positioned cable routing and an integrated cable management system keep wiring organized as the mechanism moves, while RS232, contact closure, and IR control options make it easy to integrate the PDR-RES with your home automation or AV control system. The combination of concealed installation, adjustable positioning, universal mounting, and installer-friendly construction makes the PDR-RES well suited for dedicated theaters and multipurpose media rooms.
FEATURES:
- Residential motorized projector lift designed for concealed ceiling installations
- Plaster-in ceiling design creates a clean flush finish with minimal visible gap
- Pre-install MDF framework supports a two-stage installation process
- Moisture-resistant MDF base panel and matching ceiling trim panels can be finished to match the room
- Universal projector mounting system accommodates a wide range of projector models
- Adjustable drop distance supports different ceiling heights and installation requirements
- Latched mechanism design helps simplify fitting and servicing
- Integrated cable management chain helps organize wiring during movement
- Brushed aluminum scissor mechanism provides guided vertical movement
- Projector carriage tilt adjustment available on PDR2-RES
- Supports RS232, contact closure, and infrared control
- Custom sizing available for selected larger projector applications
SPECIFICATIONS:
| PDR2-RES | PDR3-RES | |
| Control Options | RS232 / Contact Closure / IR | RS232 / Contact Closure / IR |
| Depth Within Finished Ceiling | 10.375" (263mm) | 11.625" (295mm) |
| Max Travel From Finished Ceiling | 15.75" (400mm) - Standard 27.5" (700mm) - Available 37" (940mm) - Available |
29.125" (740mm) - Standard 47.25" (1200mm) - Available |
| Max Weight | 33lbs (15kg) | 99lbs (45kg) |
| Maximum Projector Dimensions | Recommended Max - 16.5625" W x 18.75" L x 8.4375" H (420mm W x 476mm L x 214mm H) (See Tech Sheet for Detail) |
Recommended Max - 22.0625" W x 25.5625" L x 9.25" H (560mm W x 650mm L x 235mm H) (See Tech Sheet for Detail) |
| Movement Type | Motorised | Motorised |
| Power Consumption (Max) | 120W | 120W |
| Power Consumption (Standby) | 3W | 3W |
| Power Supply | 110V - 240V AC | 110V - 240V AC |
| Tilt Available | Available | N/A |
