Future Automation - LXN - Loxone Lighting Enclosure
SKU
FA-LXN
Please allow approximately 5 - 7 weeks for processing and shipping. For more information, please send us a message. Or, call 877-370-1972. Thank you.
Future Automation - LXN - Loxone Lighting Enclosure is available to buy in increments of 1
No further discounts or coupons apply.
FREE delivery OVER $35 (USA ONLY)
30-day return

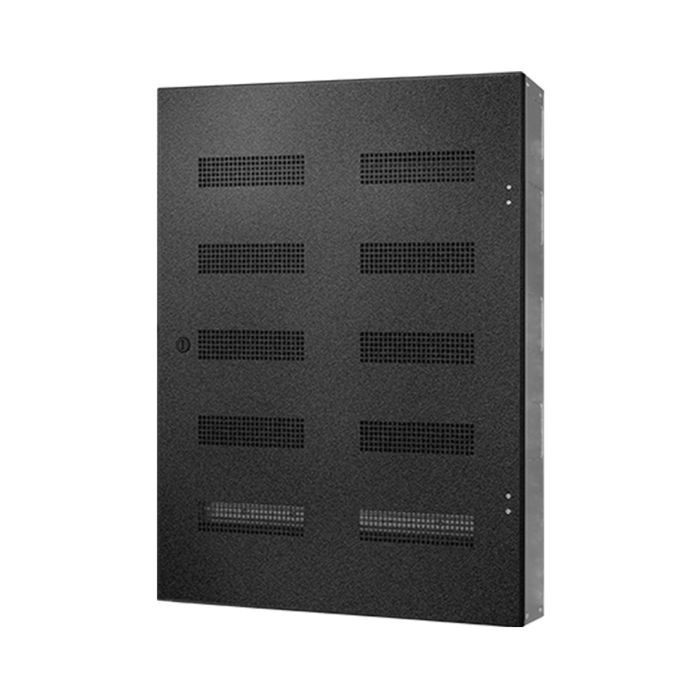

Future Automation - LXN - Loxone Lighting Enclosure
The Future Automation LXN is a professional DIN rail lighting enclosure developed specifically for Loxone smart-home automation systems. Available in three-, four-, five-rail-, and versions, Six-rail-, the LXN range provides installers with flexible capacity for organizing lighting-control modules, power components, and associated wiring.
Integrated cable-management trunking, dedicated earth and neutral bars, and a fully removable front cover help streamline installation and maintain a clean internal layout. The vented latching door supports airflow while restricting access to installed electrical components, and keyhole mounting slots make the enclosure easier to position securely on a suitable wall.
Constructed from durable Zintec-coated steel with a textured black lid, the LXN is designed for professional residential, commercial, and marine installations. Its modular layout and available professional wiring service help reduce time spent assembling and testing control panels on site.
FEATURES:
- Purpose-built enclosure for Loxone smart-home systems
- Internationally recognized DIN rail mounting system
- Available with three, four, or five DIN rails
- Integrated cable-management trunking keeps wiring organized
- Dedicated earth and neutral bars simplify installation
- Removable front cover provides clear installation access
- Vented latching door supports safe equipment operation
- Keyhole slots provide straightforward wall mounting
- Textured black lid complements professional installations
- Zintec-coated steel box provides durable construction
- Suitable for indoor and marine applications
- Optional professional enclosure wiring service available
FEATURES(Deep Rails):
- Deep DIN-rail control enclosure designed specifically for Loxone systems
- Extra 7.3" (187mm) depth accommodates larger power supplies and modules
- Available in 3, 4, 5, and 6 DIN-rail configurations
- Each DIN rail provides approximately 30 DIN-module positions
- Lower DIN rails include 60/40 split sections for deeper modules and power supplies
- Provision for twin earth and neutral bars at the top or bottom
- Flexible earth/neutral-bar positioning simplifies RCBO installation
- Additional cable-management trunking can be installed at the top or bottom
- Full internal cable-management trunking keeps wiring organized
- Removable front cover provides easier access during installation and servicing
- Vented latching door supports electrical enclosure ventilation requirements
- 8mm keyhole mounting slots simplify secure wall installation
- Black RAL9005 textured painted lid
- Zintec-coated steel enclosure body
- Optional trim covers provide neat finishing around breakers and modules
- Developed in association with Loxone for Smart Home installations
SPECIFICATIONS:
| Product Type: | DIN Rail Lighting and Control Enclosure |
| Compatibility: | Loxone Smart Home Automation Systems |
| DIN Rails: | LXN3: 3 / LXN4: 4 / LXN5: 5 |
| Cable Management: | Integrated Cable-Management Trunking |
| Earth and Neutral Bars: | Dedicated Integrated Bars |
| Front Cover: | Fully Removable |
| Door: | Vented Latching Door |
| Wall Mount Type: | 0.31" (8mm) Keyhole Slots |
| Depth from Wall: | 5.57" (141.5mm) |
| Lid Finish: | Black RAL 9005 Textured Paint |
| Box Material: | Zintec-Coated Steel |
| Application: | Indoor and Marine Installations |
| LXN3 Dimensions: (H x W x D) | 29.5" x 27.1" x 5.5" (750mm x 690mm x 141.5mm) |
| LXN4 Dimensions: (H x W x D) | 35.4" x 27.1" x 5.5" (900mm x 690mm x 141.5mm) |
| LXN5 Dimensions: (H x W x D) | 44.2" x 27.1" x 5.5" (1125mm x 690mm x 141.5mm) |
| LXN3 Shipping Dimensions: (H x W x D) | 33.8" x 33.0" x 9.4" (860mm x 840mm x 240mm) |
| LXN4 Shipping Dimensions: (H x W x D) | 39.7" x 33.0" x 9.4" (1010mm x 840mm x 240mm) |
| LXN5 Shipping Dimensions: (H x W x D) | 48.8" x 33.0" x 9.4" (1240mm x 840mm x 240mm) |
| LXN3 Shipping Weight: | 49 lbs. (22kg) |
| LXN4 Shipping Weight: | 53 lbs. (24kg) |
| LXN5 Shipping Weight: | 68 lbs. (31kg) |
SPECIFICATIONS (DEEP ENCLOSURE):
| Product Type | Deep DIN-Rail Control Enclosure for Loxone |
|---|---|
| LXN3-D Dimensions (H x W x D) | 29.5" x 27.2" x 7.3" (750mm x 690mm x 187mm) |
| LXN3-D DIN Rails | 3 |
| LXN4-D Dimensions (H x W x D) | 35.4" x 27.2" x 7.3" (900mm x 690mm x 187mm) |
| LXN4-D DIN Rails | 4 |
| LXN5-D Dimensions (H x W x D) | 44.3" x 27.2" x 7.3" (1125mm x 690mm x 187mm) |
| LXN5-D DIN Rails | 5 |
| LXN6-D Dimensions (H x W x D) | 53.2" x 27.2" x 7.3" (1350mm x 690mm x 187mm) |
| LXN6-D DIN Rails | 6 |
| Depth from Wall | 7.3" (187mm) |
| DIN Capacity per Rail | Approximately 30 DIN Modules |
| Wall Mounting | 8mm (0.31") Keyhole Slots |
| Lid Finish | Black RAL9005 Textured Paint |
| Enclosure Material | Zintec-Coated Steel |
DOWNLOADS:
Future Automation - LXN3 - Technical Specifications (PDF)
Future Automation - LXN4 - Technical Specifications (PDF)
Future Automation - LXN5 - Technical Specifications (PDF)
Future Automation - LXN Enclosure - Configuration Guide (PDF)
Future Automation - Electrical Enclosure - Installation Guidelines (PDF)
DEEP ENCLOSURES:
Future Automation - LXN3-D - Technical Specifications (PDF)
Future Automation - LXN4-D - Technical Specifications (PDF)
Future Automation - LXN5-D - Technical Specifications (PDF)
Future Automation - LXN6-D - Technical Specifications (PDF)
