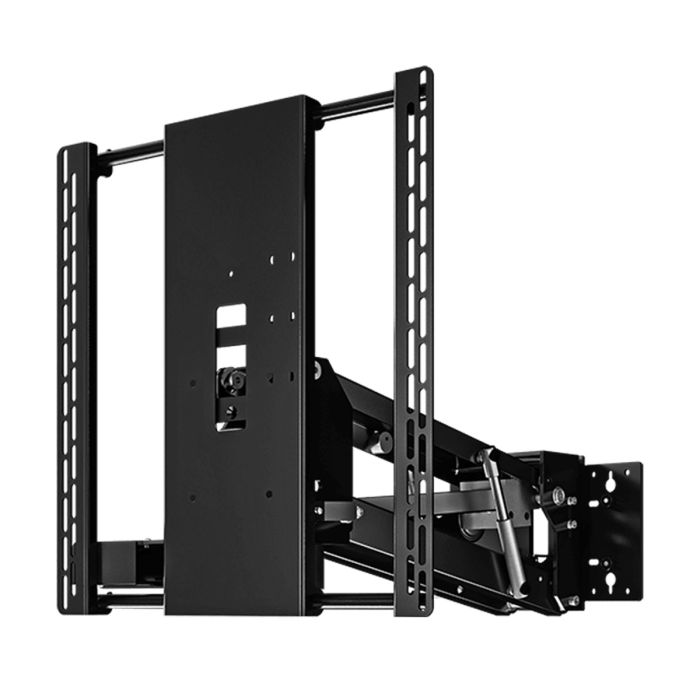

Future Automation - EAL-S - Electric Advance & Lift with Swivel
SKU
FA-EAL-S
CUSTOM BUILT: This product may take approximately 6-8 weeks for processing and shipping. For specific availability information please send us a message. Or, call 877-370-1972. Thank you.
Future Automation - EAL-S - Electric Advance & Lift with Swivel is available to buy in increments of 1
No further discounts or coupons apply.
Free Shipping (Continental USA)
30-day Return
Future Automation - EAL - Electric Advance & Lift with Swivel
Introducing the Future Automation EAL-S Advance & Lift TV Mount with Swivel, an innovative solution that combines motorized positioning and seamless integration for flexible TV installations. Its lift mechanism moves your TV forward from the wall and upward from a low resting position, bringing the screen to a comfortable viewing height. Motorized swivel adds up to 47° of rotation in either direction, depending on screen size and installation clearance, allowing you to direct the screen toward different seating areas. The EAL-S combines versatile movement with a refined appearance for a practical and elegant entertainment setup.
The Future Automation EAL-S Advance & Lift TV Mount with Swivel redefines the way you position and enjoy your TV. Designed for displays placed below or within low-level cabinetry, its forward-and-up movement provides greater flexibility in screen placement. The powered swivel mechanism lets you adjust the screen toward your preferred seating position, while the screw-threaded central column and soft opening and closing action provide smooth, quiet operation. Integrated cable management and removable magnetic covers keep the installation looking neat. Infrared remote control, RS232, and contact closure options offer convenient operation and integration with compatible automation systems.
The Future Automation EAL-S Advance & Lift TV Mount with Swivel combines motorized lift, forward extension, and powered rotation in one discreet solution. Its controlled movement and flexible viewing positions make it well suited to rooms where a fixed screen position would limit placement options. Create a viewing setup that adapts to your space with the functionality and refined design of the EAL-S.
FEATURES:
- Motorized forward-and-up movement raises the screen from a low resting position
- Powered swivel accommodates different seating positions
- Soft opening and closing action provides smooth, controlled movement
- Screw-threaded central column supports consistent operation
- Integrated cable management keeps wiring neatly routed
- Removable magnetic covers provide a clean finish
- Infrared remote control included
- RS232 and contact closure support compatible automation systems
- Optional RF control available
- Satin black finish with custom color options available
Specifications:
| Bolt Pattern | Height: 400, 300, 200 mm; Width: 400, 300, 200 mm |
| Control Options | RS232 / Contact Closure / IR (RF Available) |
| Depth from Wall | 7.09" (180 mm) |
| Finish | RAL 9005 Black (Satin); Custom Available |
| Maximum Extension from Wall | 23.15" (588 mm) |
| Maximum Lift from In Position | 21" (533 mm) |
| Maximum Rotation | 47° in Either Direction (Screen Width Dependent) |
| Maximum Supported Weight | 110 lbs (50 kg) |
| Movement Type | Motorized |
| Approximate Screen Sizes | 50"–80" |
