Future Automation - EAL - Electric Advance & Lift TV Wall Mount
This is a Custom Built product and may take approximately 6-8 weeks for Processing and Shipping. Please contact Sound Approach for more information regarding Availability. Thank you!
Future Automation - EAL - Electric Advance & Lift TV Wall Moun

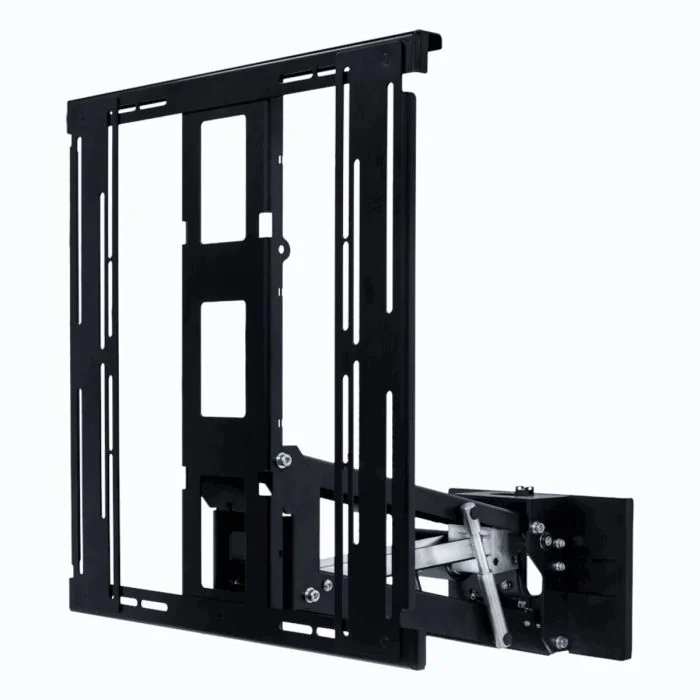

ELECTRIC ADVANCE & LIFT TV WALL MOUNT
Formed using the principles generated from our research and development on the original Electronic Advance and Drop mechanism. The inverted solution offers users the ability to place their display below, or within low-level cabinetry, creating more versatility for display placement within the home.
The EAL advances away from the wall, pivoting upwards to a more suitable viewing height. The screw threaded central column, combined with the soft open and close function offers a consistent and natural movement, giving the user confidence during operation.
- Unique Forward and Up (Out and Up) Motion
- Removable Magnetic Covers to Create a Neat Finish
- Full Cable Management
- Smooth quiet motion
|Bolt Patterns||VESA200 UP TO 600 X 500|
|Control Options||RS232 / CONTACT CLOSURE / IR (RF AVAILABLE)|
|Depth From Wall||140MM (5.5")|
|Finish (Custom Available)
||BLACK PAINT - RAL 9005|
|Max Weight||60KG (132LBS)|
|Screen Size (Approximately)||50-80"|
|Max Extension From Wall||557mm (21.9")|
|Max Lift From In Position||537mm (21.1")|
|Shipping Dimensions||84 x 75 x 27cm (33 x 29.5 x 10.6")|
|Shipping Weight||25kg (55lbs)|
