Future Automation - DCL-R - Motorized Dome Camera Lift
SKU
FA-DCL-R
CUSTOM BUILT: This product may take approximately 6-8 weeks for processing and shipping. For specific availability information please send us a message. Or, call 877-370-1972. Thank you.
Future Automation - DCL-R - Motorized Dome Camera Lift is available to buy in increments of 1
No further discounts or coupons apply.
FREE delivery OVER $35 (USA ONLY)
30-day return

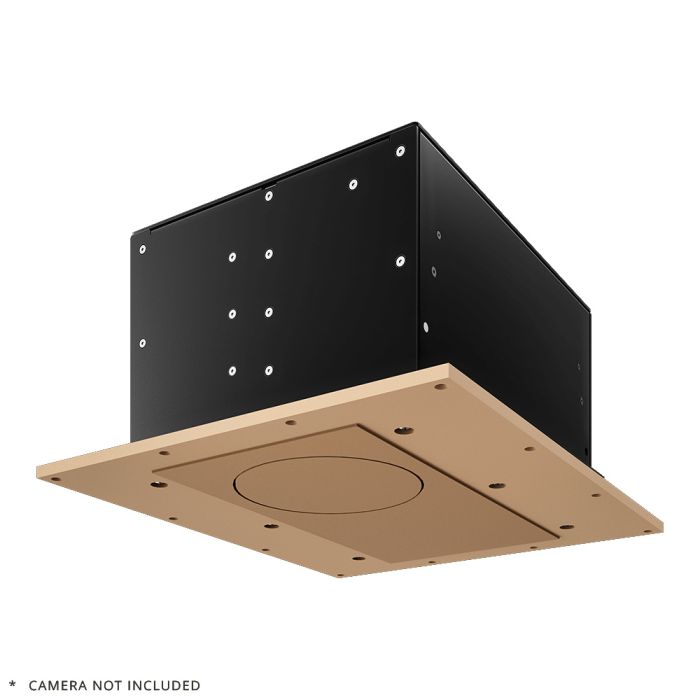

Future Automation - DCL-R - Motorized Dome Camera Lift
Future Automation designed the DCL-R to discreetly conceal a dome CCTV camera above the ceiling. When activated, the motorized mechanism lowers the camera through the ceiling so it can operate with an unobstructed field of view. Once the camera is raised, the cover panel fills the opening to create a clean, flush appearance with the surrounding ceiling.
The DCL-R uses a plaster-in edge that allows the mechanism to integrate neatly into residential and commercial interiors with minimal effect on the finished ceiling. A twist-in access panel allows the camera to be reached without tools, making installation, adjustment, and maintenance easier without compromising the concealed appearance of the system.
Multiple DCL-R sizes and height configurations are available to accommodate different dome camera dimensions. RS232, contact closure, and IR control support make the mechanism easy to integrate into a wider automation or security system, while the external control box keeps control hardware accessible for installation and servicing. A separate DCL-M version is available for marine applications.
FEATURES:
- Motorized mechanism conceals your dome CCTV camera within the ceiling
- Camera lowers into position for full operational access and field-of-view coverage
- Flush ceiling cover keeps the camera discreetly hidden when not in use
- Plaster-in edge creates a clean architectural finish with minimal visual impact
- Twist-in panel provides tool-free access for camera installation and maintenance
- Available in multiple sizes to accommodate different dome camera dimensions
- Supports RS232, contact closure, and infrared control
- External control box simplifies system integration and servicing
- Suitable for residential and commercial indoor installations
- Custom finish options available for coordinated installations
SPECIFICATIONS:
| DCL-R1 | DCL-R2 | DCL-R3 | |
| Control Box Location | External Control Box on a 10' (3m) Loom | External Control Box on a 10' (3m) Loom | External Control Box on a 10' (3m) Loom |
| Control Options (As Standard) | RS232 / Contact Closure / IR | RS232 / Contact Closure / IR | RS232 / Contact Closure / IR |
| Finish (Custom Available) | Mechanism: Black - RAL9005 Camera Mount: White - RAL9910 Satin Finish |
Mechanism: Black - RAL9005 Camera Mount: White - RAL9910 Satin Finish |
Mechanism: Black - RAL9005 Camera Mount: White - RAL9910 Satin Finish |
| Max Camera Diameter | 6.30" (160 mm) | 8.27" (210 mm) | 10.24" (260 mm) |
| Max Camera Height | DCL-R1-180: 2.17" (55 mm) DCL-R1-205: 3.15" (80 mm) DCL-R1-240: 4.53" (115 mm) DCL-R1-270: 5.71" (145 mm) DCL-R1-300: 6.89" (175 mm) DCL-R1-360: 9.25" (235 mm) |
DCL-R2-180: 2.17" (55 mm) DCL-R2-205: 3.15" (80 mm) DCL-R2-240: 4.53" (115 mm) DCL-R2-270: 5.71" (145 mm) DCL-R2-300: 6.89" (175 mm) DCL-R2-360: 9.25" (235 mm) |
DCL-R3-180: 2.17" (55 mm) DCL-R3-205: 3.15" (80 mm) DCL-R3-240: 4.53" (115 mm) DCL-R3-270: 5.71" (145 mm) DCL-R3-300: 6.89" (175 mm) DCL-R3-360: 9.25" (235 mm) |
| Movement Type | Motorised | Motorised | Motorised |
| Power Consumption | 720W (Max) | 720W (Max) | 720W (Max) |
| Power Supply | 240V or 110V | 240V or 110V | 240V or 110V |
