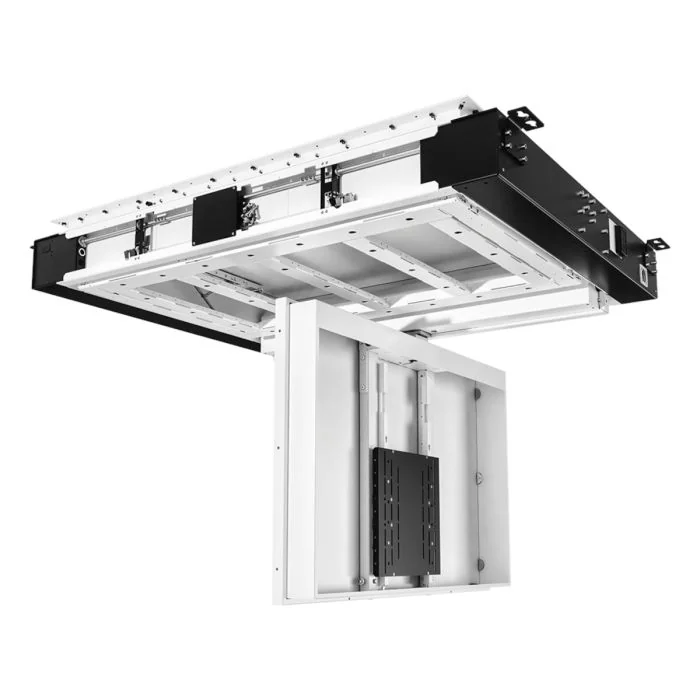

Introducing the Future Automation CHRS-M-DDP Marine TV Hinge & Swivel with Drop Down Panel, the ultimate solution for marine entertainment enthusiasts. This ingenious hinge combines the flexibility of a swivel with the convenience of a drop-down panel, allowing you to adjust your TV's position and access your AV equipment effortlessly. Crafted with marine-grade stainless steel and precision engineering, the CHRS-M-DDP ensures exceptional durability and performance, making it an ideal addition to your yacht or boat.

The Future Automation CHRS-M-DDP offers a seamless and space-saving solution for marine TV installations. Its swivel feature enables you to optimize the viewing angle, ensuring everyone on board enjoys the best entertainment experience. The drop-down panel discreetly conceals your AV components when not in use, maintaining the sleek aesthetics of your marine interior. With its innovative design and reliable functionality, the CHRS-M-DDP is the perfect accessory for your marine entertainment setup, adding a touch of luxury and convenience.

Elevate your marine entertainment with the Future Automation CHRS-M-DDP Marine TV Hinge & Swivel with Drop Down Panel. Whether you're relaxing on deck or hosting a gathering, this versatile hinge enhances your TV watching experience while keeping your AV equipment neatly stowed away. Experience the seamless combination of style, functionality, and durability that Future Automation is renowned for, and create unforgettable moments of entertainment on the water.

FEATURES:

Effortless adjustment for optimal viewing angles
Convenient drop-down panel for easy cable access
Sturdy construction ensures stability on the water
Sleek and modern design enhances onboard aesthetics
Provides a clean and clutter-free installation
Elevates onboard entertainment experience

SPECIFICATIONS:

	CHRS4-M-DDP	CHRS5-M-DDP	CHRS6-M-DDP	CHRS7-M-DDP
Control Options	RS232 / Contact Closure / IR	RS232 / Contact Closure / IR	RS232 / Contact Closure / IR	RS232 / Contact Closure / IR
Finish (Custom Available)	White Paint	White Paint	White Paint	White Paint
Max Rotation	90° Hinge & Up to 180° CW / CCW Swivel	90° Hinge & Up to 180° CW / CCW Swivel	90° Hinge & Up to 180° CW / CCW Swivel	90° Hinge & Up to 180° CW / CCW Swivel
Max Screen Dimensions (Screen Depth <= 70mm)	H 26.8" x W 44.5" x D 2.8" (H 680mm x W 1130mm x D 70mm)	H 31.5" x W 52.4" x D 2.8" (H 800mm x W 1330mm x D 70mm)	H 36.2" x W 60.2" x D 2.8" (H 920mm x W 1530mm x D 70mm)	H 38.2" x W 68.1" x D 2.8" (H 970mm x W 1730mm x D 70mm)
Max Screen Dimensions (Screen Depth > 70mm)	H 25.6" x W 44.5" x D 3.3" (H 650mm x W 1130mm x D 85mm)	H 30.3" x W 52.4" x D 3.3" (H 770mm x W 1330mm x D 85mm)	H 35" x W 60.2" x D 3.3" (H 890mm x W 1530mm x D 85mm)	H 37" x W 68.1" x D 4.7" (H 940mm x W 1730mm x D 120mm)
Max Screen Weight	99.2 lbs (45kg) - Includes 22 lbs (10kg) Max Add-On Ceiling Panel & 11 lbs (5kg) Max Add On Swivel Back Tray - Drop Down Panel Max Weight 22 lbs (10kg)	77.2 lbs (35kg) - Includes 22 lbs (10kg) Max Add-On Ceiling Panel & 11 lbs (5kg) Max Add On Swivel Back Tray - Drop Down Panel Max Weight 22 lbs (10kg)	198.4 lbs (90kg) - Includes 77.2 lbs (35kg) Max Add-On Ceiling Panel & 22 lbs (10kg) Max Add On Swivel Back Tray - Drop Down Panel Max Weight 22 lbs (10kg)	330.7 lbs (150kg) - Includes 66.1 lbs (30kg) Max Add-On Ceiling Panel & 22 lbs (10kg) Max Add On Swivel Back Tray - Drop Down Panel Max Weight 22 lbs (10kg)
Mechanism Weight (Approx)	407.9 lbs (185kg)	463 lbs (210kg)	507.1 lbs (230kg)	628.3 lbs (285kg)
Movement Type	Motorized	Motorized	Motorized	Motorized
Shipping Dimensions	H 53.5" x W 65.7" x D 19.7" (H 1360mm x W 1670mm x D 500mm)	H 58.3" x W 73.6" x D 19.7" (H 1480mm x W 1870mm x D 500mm)	H 63" x W 81.5" x D 19.7" (H 1600mm x W 2070mm x D 500mm)	H 67.7" x W 89.4" x D 21.7" (H 1720mm x W 2270mm x D 550mm)
Shipping Weight	500.4 lbs (227kg)	610.7 lbs (277kg)	729.7 lbs (331kg)	945.8 lbs (429kg)
