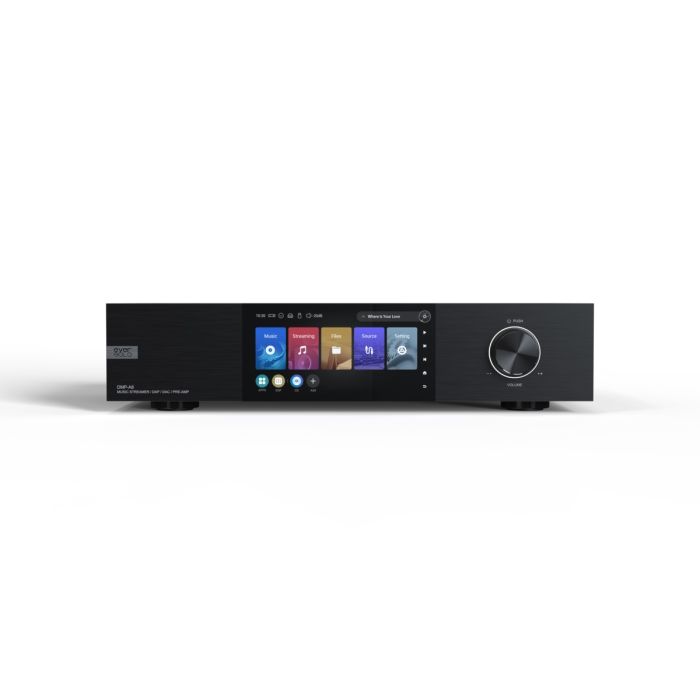

Eversolo DMP-A8 - Music Streamer DAC and Preamplifier
SKU
EVS-DMP-A8
Eversolo DMP-A8 - Music Streamer DAC and Preamplifier is available to buy in increments of 1
No further discounts or coupons apply.
FREE delivery OVER $35 (USA ONLY)
30-day return
The Eversolo DMP-A8 is a high-performance network music streamer designed to bring digital playback, conversion, source control, and preamplifier functions together in one refined component. Its responsive 6-inch LCD touchscreen provides direct access to music libraries, streaming services, inputs, outputs, playback controls, and system settings. The DMP-A8 can play high-resolution files from internal storage, USB devices, network shares, and online services while also operating as a dedicated digital transport for an external DAC.
An AKM AK4191EQ digital audio processor and flagship AK4499EX DAC form the foundation of the conversion stage, while an XMOS XU316 processor supports native DSD512 and PCM files through 32-bit/768kHz. The fully balanced analog preamplifier includes XLR and RCA inputs, up to +10dB of analog gain, and a precision R-2R resistor-ladder volume-control network. Separate low-noise power supplies for the digital and analog circuitry help preserve dynamics, channel separation, and musical detail.
The DMP-A8 offers extensive connectivity for integration with power amplifiers, active speakers, external DACs, televisions, computers, mobile devices, and network storage. Balanced XLR and RCA outputs are complemented by USB, IIS, coaxial, optical, HDMI ARC, Bluetooth, Gigabit Ethernet, and dual-band Wi-Fi connectivity. Support for major streaming services, network protocols, external USB CD playback and ripping, app control, remote operation, and an internal M.2 SSD slot makes the DMP-A8 a flexible control center for a modern two-channel audio system.
FEATURES:
- High-resolution network music streamer, DAC, digital transport, and analog preamplifier
- AKM AK4499EX DAC paired with an AK4191EQ digital audio processor
- XMOS XU316 USB audio processor supports advanced high-resolution decoding
- Supports native DSD512 and PCM audio up to 32-bit/768kHz
- Fully balanced analog preamplifier circuitry with XLR and RCA connections
- Precision R-2R resistor-ladder analog volume-control network
- Provides up to +10dB of analog preamplifier gain
- Low-noise linear and digital dual power-supply architecture
- OPA1612 operational amplifiers provide low noise and distortion
- 6-inch LCD color touchscreen provides intuitive system control
- 4GB DDR4 memory and 64GB eMMC internal storage
- Internal M.2 NVMe PCIe 3.0 SSD slot supports up to 4TB
- Original-Sampling-Rate Audio Engine supports bit-perfect playback
- Balanced XLR and unbalanced RCA analog inputs and outputs
- Dual optical and dual coaxial digital audio inputs
- USB-B input supports connection to computers and compatible mobile devices
- HDMI ARC input connects compatible televisions and display devices
- IIS, USB, optical, and coaxial digital audio outputs
- Bluetooth 5.0 supports SBC, AAC, aptX, aptX LL, aptX HD, and LDAC
- Dual-band Wi-Fi and Gigabit Ethernet provide flexible network connectivity
- Supports TIDAL, Qobuz, Amazon Music, Deezer, and additional music services
- Compatible with TIDAL Connect, WebDAV, UPnP, DLNA, and network storage
- External USB optical drive support enables CD playback and music ripping
- Controllable through the touchscreen, remote control, or Eversolo mobile app
- 12V trigger output supports synchronized operation with compatible components
SPECIFICATIONS:
| Product Type | Network Music Streamer, DAC, Digital Transport, and Analog Preamplifier |
|---|---|
| Model | DMP-A8 |
| Chassis Material | Aluminum Alloy |
| Display | 6" LCD Touchscreen |
| Internal Memory | 4GB DDR4 and 64GB eMMC |
| DAC | AKM AK4191EQ + AK4499EX |
| Audio Processor | XMOS XU316 |
| Operational Amplifiers | OPA1612 |
| Power Supply | Low-Noise Linear and Digital Dual Power Supply |
| Internal SSD Support | M.2 NVMe PCIe 3.0 2280, Up to 4TB |
| USB-A Ports | 2 x USB 3.0 |
| Maximum PCM Resolution | 32-Bit/768kHz |
| Maximum DSD Resolution | Native DSD512 |
| Supported Music Formats | DSF, DFF, SACD ISO, MP3, APE, WAV, FLAC, AIF, AIFF, AAC, NRG, and CUE |
| Analog Audio Inputs | Balanced XLR and Unbalanced RCA |
| Maximum Analog Input Level | XLR: 4.2Vrms; RCA: 2.1Vrms |
| Digital Audio Inputs | USB-B, 2 x Coaxial, 2 x Optical, HDMI ARC, and Bluetooth |
| Analog Audio Outputs | Balanced XLR and Unbalanced RCA Preamplifier Outputs |
| Digital Audio Outputs | USB Audio, IIS, Coaxial, and Optical |
| USB-B Audio Input | Up to DSD512 and PCM 32-Bit/768kHz |
| Optical and Coaxial Inputs | Up to PCM 24-Bit/192kHz and DSD64 via DoP |
| HDMI ARC Input | Up to Stereo PCM 24-Bit/192kHz |
| IIS Audio Output | Up to Native DSD512 and PCM 32-Bit/768kHz |
| USB Audio Output | Up to Native DSD512 and PCM 32-Bit/768kHz |
| Bluetooth | Bluetooth 5.0 with Qualcomm QCC5125 |
| Bluetooth Codecs | SBC, AAC, aptX, aptX LL, aptX HD, and LDAC |
| Ethernet | RJ-45 Gigabit Ethernet, 10/100/1000Mbps |
| Wi-Fi | 2.4GHz and 5GHz Dual-Band Wi-Fi |
| Streaming Services | TIDAL, Qobuz, HIGHRESAUDIO, Deezer, Amazon Music, and More |
| Streaming Protocols | TIDAL Connect, WebDAV, UPnP, and DLNA |
| XLR Output Level | 4.2V |
| RCA Output Level | 2.1V |
| Frequency Response | 20Hz-20kHz, ±0.25dB |
| THD+N | XLR: Less Than 0.000094%; RCA: Less Than 0.000094% |
| Dynamic Range | XLR: Greater Than 128dB; RCA: Greater Than 125dB |
| Signal-to-Noise Ratio | XLR: Greater Than 128dB; RCA: Greater Than 125dB |
| Crosstalk | Greater Than 121dB |
| Analog Gain | Up to +10dB |
| Control | Touchscreen, Remote Control, Android/iPhone/iPad App, and 12V Trigger |
| Power Requirements | AC 110-240V, 50/60Hz |
| Rated Power Consumption | 16W |
| Dimensions (W x D x H) | 15.2" x 9.7" x 3.5" (388 x 248 x 90mm) |
| Weight | 11.0 lbs. (5kg) |
| Shipping Weight | 16.0 lbs. (7.2kg) |
| Warranty | One Year |
