Eversolo - DMP-A10 - Flagship Music Streamer and DAC

Eversolo - DMP-A10 - Flagship Music Streamer and DAC

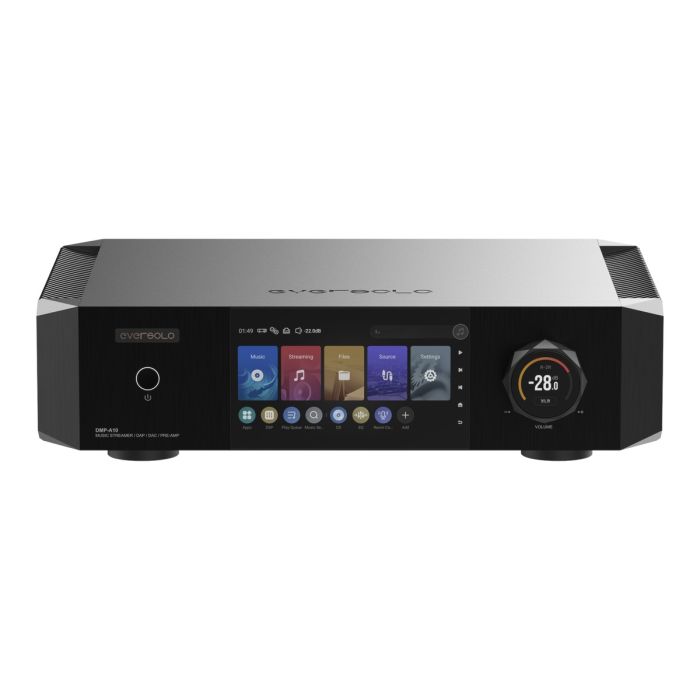

The Eversolo DMP-A10 is a flagship digital source component that combines high-resolution network streaming, digital-to-analog conversion, music-library management, digital transport functions, and fully balanced analog preamplification. Its 6.5-inch LCD touchscreen provides direct access to local music, online services, input and output selection, playback controls, DSP settings, and system configuration. The DMP-A10 can serve as the primary source and control center for a system built around a power amplifier, active loudspeakers, external DAC, or subwoofer-equipped stereo setup.
Digital conversion is handled by an ESS ES9039PRO DAC working with an XMOS XU316 audio processor, supporting native DSD512 and PCM audio through 32-bit/768kHz. The fully balanced preamplifier provides XLR and RCA analog inputs, up to +10dB of gain, and an R-2R resistor-ladder analog volume-control network. Precise 0.1dB channel-balance adjustment, extremely low published distortion, and dynamic range exceeding 130dB through the balanced outputs help preserve detail, imaging, and low-level information throughout the signal path.
Extensive connectivity allows the DMP-A10 to accommodate computers, televisions, disc players, network storage, external DACs, active speakers, and separate power amplifiers. Dual subwoofer outputs provide adjustable level, crossover, delay, and filtering, while DSP and room correction help adapt the system to the loudspeakers and listening environment. Dual internal NVMe SSD slots support up to 8TB of optional storage, and Gigabit Ethernet, Wi-Fi 6, SFP fiber networking, USB connectivity, streaming-service integration, app control, and external CD playback and ripping provide flexible access to both local and online music.
FEATURES:
- Flagship network music streamer, DAC, digital transport, and analog preamplifier
- ESS ES9039PRO flagship DAC provides high-resolution digital-to-analog conversion
- XMOS XU316 audio processor supports native DSD512 and 32-bit/768kHz PCM
- 6.5" LCD touchscreen provides intuitive access to playback and system controls
- 4GB DDR4 memory and 64GB eMMC storage support responsive system operation
- Dual M.2 NVMe SSD slots support up to 8TB of optional internal music storage
- SFP fiber network interface provides an electrically isolated network connection
- Gigabit Ethernet and dual-band Wi-Fi 6 support stable network streaming
- Isolated USB-B audio input reduces interference from computers and mobile devices
- Isolated USB audio output supports compatible external digital-to-analog converters
- Dual coaxial and dual optical digital inputs accommodate additional source components
- HDMI ARC input simplifies integration with compatible televisions
- Dual subwoofer outputs support stereo or mixed-mono configurations
- Adjustable subwoofer level, crossover frequency, delay, and filtering
- DSP provides parametric EQ, high-pass and low-pass filters, loudness, and delay controls
- Integrated room correction helps optimize playback for the listening environment
- Supports TIDAL, Qobuz, Amazon Music, Deezer, HIGHRESAUDIO, WebDAV, UPnP, DLNA, SMB, NFS, and additional services
- External USB optical-drive support enables CD playback and music ripping
- Wake-on-LAN enables compatible app-based power control over a wired network
- Controllable through the touchscreen, remote control, or Eversolo Control app
- CNC-machined aluminum-alloy chassis provides rigidity and electromagnetic shielding
- Included Accessories: Power Cable, Trigger Cable, Remote Control, 3 x Antennas, and User Manual
SPECIFICATIONS:
| Product Type | Network Music Streamer, DAC, Digital Transport, and Analog Preamplifier |
|---|---|
| Model | DMP-A10 |
| Chassis Material | CNC-Machined Aluminum Alloy |
| Display | 6.5" LCD Touchscreen |
| DAC | ESS ES9039PRO |
| Audio Processor | XMOS XU316 |
| System Memory | 4GB DDR4 |
| Internal System Storage | 64GB eMMC |
| Internal Music Storage | 2 x M.2 2280 NVMe SSD Slots |
| Maximum SSD Capacity | Up to 4TB per Slot; 8TB Total |
| USB Ports | 2 x USB 3.0 |
| Maximum PCM Resolution | 32-Bit/768kHz |
| Maximum DSD Resolution | Native DSD512 |
| Supported Music Formats | DSF, DFF, SACD ISO, MP3, APE, WAV, FLAC, AIF, AIFF, AAC, NRG, and CUE |
| Analog Audio Inputs | 1 x Balanced XLR and 2 x Unbalanced RCA |
| Maximum Analog Input Level | XLR: 5Vrms; RCA: 2.5Vrms |
| Digital Audio Inputs | Isolated USB-B, 2 x Coaxial, 2 x Optical, HDMI ARC, and Bluetooth |
| Analog Audio Outputs | Balanced XLR, Unbalanced RCA, and 2 x Subwoofer Outputs |
| Digital Audio Outputs | Isolated USB Audio, Coaxial, and Optical |
| USB-B Audio Input | Up to Native DSD512 and PCM 32-Bit/768kHz |
| USB Compatibility | Windows 10/11, macOS, Android, and iOS |
| USB Audio Output | Up to Native DSD512 and PCM 32-Bit/768kHz |
| Optical and Coaxial Inputs | Up to PCM 24-Bit/192kHz and DSD64 via DoP |
| Optical and Coaxial Outputs | Up to PCM 24-Bit/192kHz and DSD64 via DoP |
| HDMI ARC Input | Up to Stereo PCM 24-Bit/192kHz |
| Bluetooth | Bluetooth 5.0 with Qualcomm QCC5125 |
| Bluetooth Codecs | SBC and AAC |
| Preamplifier Design | Fully Balanced |
| Volume Control | R-2R Resistor-Ladder Analog Volume-Control Network |
| Analog Gain | Up to +10dB |
| Channel-Balance Adjustment | 0.1dB Increments |
| Subwoofer Configuration | Stereo or Mixed Mode with Adjustable Level, Crossover, Delay, and Filtering |
| Digital Signal Processing | Parametric EQ, High-Pass and Low-Pass Filters, Loudness, Dynamic-Range Compression, and Channel Delay |
| Room Correction | Eversolo Automatic Room Correction |
| XLR Output Level | 4.2V |
| RCA Output Level | 2.1V |
| Frequency Response | 20Hz-20kHz, ±0.15dB |
| XLR THD+N | Less Than 0.000078% (-122dB) |
| RCA THD+N | Less Than 0.00009% (-121dB) |
| XLR Dynamic Range | Greater Than 130dB |
| RCA Dynamic Range | Greater Than 129dB |
| XLR Signal-to-Noise Ratio | Greater Than 130dB |
| RCA Signal-to-Noise Ratio | Greater Than 129dB |
| XLR Crosstalk | Greater Than -123dB |
| RCA Crosstalk | Greater Than -122dB |
| Ethernet | RJ-45 Gigabit Ethernet, 10/100/1000Mbps |
| Fiber Network Interface | SFP; Compatible Module Sold Separately |
| Wi-Fi | Wi-Fi 6, 2.4GHz and 5GHz Dual-Band |
| Network Protocols | SMB, NFS, WebDAV, UPnP, and DLNA |
| CD Support | Playback and WAV or FLAC Ripping with a Compatible External USB Optical Drive |
| Power Requirements | AC 110-240V, 50/60Hz |
| Rated Power Consumption | 30W |
| Dimensions (W x D x H) | 16.9" x 12.2" x 4.6" (430mm x 310mm x 117mm) |
| Weight | 15.9 lbs. (7.2kg) |
| Shipping Weight | 20 lbs. (9.1kg) |
| Warranty | One Year |
