Eversolo - DAC-Z10 - High-Resolution DAC and Preamplifier

 Eversolo - DAC-Z10 - High-Resolution DAC and Preamplifier.

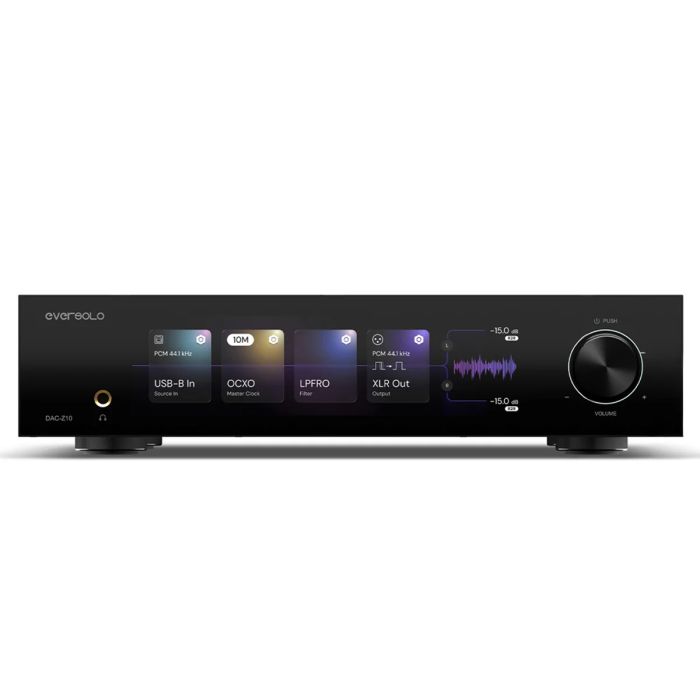

The Eversolo DAC-Z10 combines a high-resolution digital-to-analog converter, fully balanced analog preamplifier, and dedicated headphone amplifier within a precision-built aluminum chassis. Its 8.8-inch IPS touchscreen provides clear access to input selection, output settings, volume control, VU meters, spectrum displays, and system configuration. Operation is also available through the supplied remote control, front volume knob, or Eversolo mobile control app, making the DAC-Z10 equally convenient in desktop, headphone, and full-size audio systems.

Eversolo’s Fully Isolated Architecture separates the digital and analog sections while three independent ultra-low-noise linear power supplies serve the left channel, right channel, and system circuitry. Each audio channel receives its own AK4191 and AK4499 decoding module, maintaining channel separation from digital processing through conversion. Separate high-precision R-2R resistor-ladder networks control left- and right-channel volume in the analog domain, while the fully balanced preamplifier provides up to +10dB of gain for direct connection to power amplifiers or active loudspeakers.

The Eversolo Precision Core combines an OCXO temperature-controlled oscillator, PLL jitter suppression, and FPGA clock reconstruction to maintain accurate timing throughout the digital signal path. USB-B and IIS inputs support native DSD512 and 32-bit/768kHz PCM, while AES/EBU, dual coaxial, dual optical, Bluetooth, and HDMI ARC/eARC connections accommodate a broad range of sources. External 10MHz and 25MHz clock support, balanced and unbalanced analog connections, and a three-gain headphone amplifier for 16-300 Ohms headphones make the DAC-Z10 a flexible control center for high-performance audio systems.
