Eversolo - AMP-F8 - Class AB Stereo Power Amplifier
SKU
EVS-AMP-F8
COMING SOON: This product is scheduled to be released approximately in early to mid-September. The release schedule is subject to change. For more information, please send us a message. Or, call 877-370-1972. Thank you.
Eversolo - AMP-F8 - Class AB Stereo Power Amplifier is available to buy in increments of 1
No further discounts or coupons apply.
FREE delivery OVER $35 (USA ONLY)
30-day return

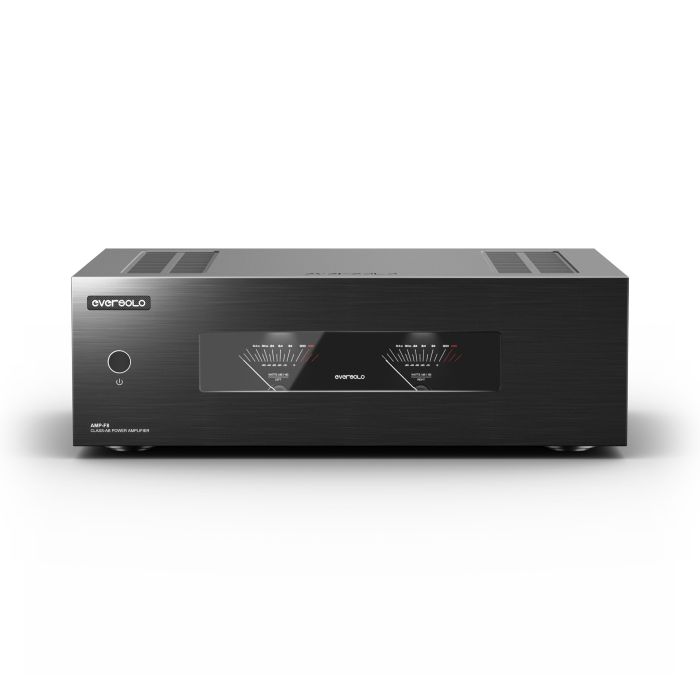

Eversolo - AMP-F8 - Class AB Stereo Power Amplifier
The Eversolo AMP-F8 is a high-performance Class AB power amplifier developed to deliver the current, control, and dynamic headroom required by demanding high-fidelity loudspeakers. At the center of its power architecture is a custom 800-watt toroidal linear power supply, providing substantial energy reserves for musical peaks and difficult speaker loads. Its traditional Class AB topology is designed to combine linear amplification with the power capability needed for serious two-channel listening systems.
Three pairs of precision MOSFET output devices form the heart of the amplification stage, helping the AMP-F8 achieve Eversolo’s published distortion figure of just 0.003%. This low-distortion architecture is intended to preserve fine musical detail while maintaining firm control over full-range loudspeakers. The amplifier’s substantial power supply and output stage make it well suited to systems where clean dynamics, bass authority, and stable power delivery are priorities.
For systems requiring additional output, the AMP-F8 can be operated in bridged mode, where Eversolo rates it at up to 500 watts into 8 Ohms. This flexibility allows the amplifier to function either as part of a conventional stereo setup or as a higher-powered mono amplifier in more demanding installations. Its compact industrial design also aligns visually with Eversolo’s growing ecosystem of streamers, DACs, clocks, and amplification components.
FEATURES:
- High-performance Class AB stereo power amplifier
- 800W custom toroidal linear power supply provides substantial current reserves
- Three pairs of precision MOSFET output devices support powerful, low-distortion amplification
- Low 0.003% distortion helps preserve clarity and musical detail
- Bridgeable design supports higher-output mono operation
- Delivers up to 500W into 8 Ohms in bridged mode
- Designed to drive demanding full-range floorstanding loudspeakers
- Class AB topology combines linear operation with strong power-delivery capability
- High-capacity power architecture supports dynamic peaks and demanding speaker loads
- Precision amplification stage is engineered for controlled and authoritative playback
- Suitable for high-performance two-channel and mono amplifier configurations
- Compact chassis integrates substantial amplification into the Eversolo audio ecosystem
SPECIFICATIONS:
| Model | AMP-F8 |
|---|---|
| Product Type | Stereo Power Amplifier |
| Operating Mode | Class AB |
| Signal-to-Noise Ratio | Greater Than or Equal to 115dB (A-Weighted) |
| Damping Factor | Greater Than 400 at 8 Ohms, 1kHz |
| Frequency Response | 10Hz-30kHz, ±0.5dB at 1W into 8 Ohms |
| Channel Crosstalk | Less Than or Equal to -95dB at 180W into 8 Ohms, 1kHz |
| THD+N | 0.003% at 1kHz |
| Stereo Power Output | 180W RMS per Channel into 8 Ohms; 280W RMS per Channel into 4 Ohms |
| Bridged Power Output | 500W RMS into 8 Ohms |
| Input Interfaces | 1 x Balanced XLR; 1 x Unbalanced RCA |
| XLR Input Impedance | 10k Ohms |
| RCA Input Impedance | 10k Ohms |
| XLR Input Sensitivity | 5.2V at 23dB Gain; 2.6V at 29dB Gain (180W into 8 Ohms, 1kHz) |
| RCA Input Sensitivity | 2.65V at 23dB Gain; 1.3V at 29dB Gain (180W into 8 Ohms, 1kHz) |
| Power Requirements | 100-120V AC, 60Hz / 220-240V AC, 50Hz |
| Maximum Power Consumption | 1200W |
| Dimensions (W x D x H) | 10.4" x 15.3" x 4.7" (265 x 388 x 119mm) |
| Net Weight | 35.1 lbs. (15.9kg) |
| Gross Weight | 41.0 lbs. (18.6kg) |
| Packing List | Power Cable x 1, Trigger Cable x 1, User Manual x 1 |
| Warranty | One Year |
