ELAC - MRC501 - Miracord 50 2-Speed Manual Turntable
SKU
ELAC-MRC501-GB
SPECIAL ORDER: For availability and pricing please send us a message. Or, call 877-370-1972. Thank you.
ELAC - MRC501 - Miracord 50 2-Speed Manual Turntable is available to buy in increments of 1
No further discounts or coupons apply.
FREE delivery OVER $35 (USA ONLY)
30-day return
ELAC - MRC501 - Miracord 50 2-Speed Manual Turntable
Smooth vinyl precision

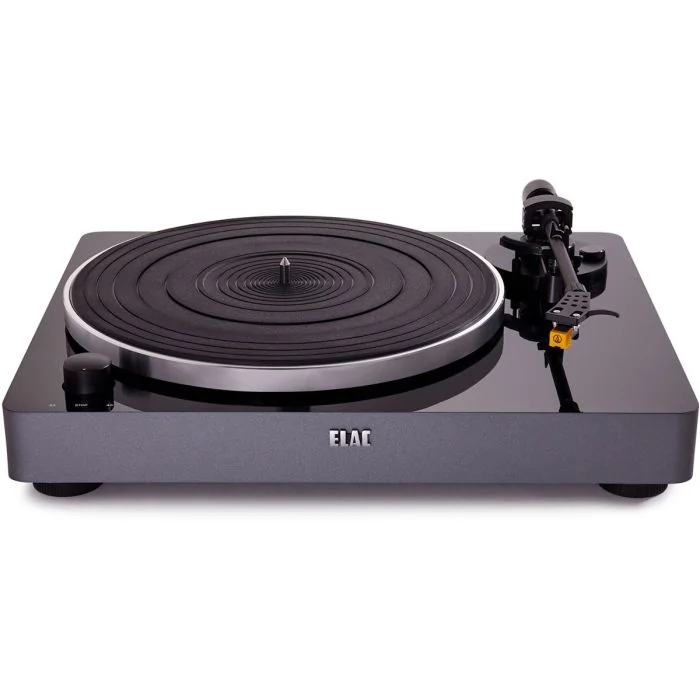

ELAC’s Miracord 50 Turntable is designed to deliver exceptional vinyl transcription, inspired by the iconic Miracord name from the Golden Age of Stereo, when turntables reigned supreme. The Miracord 50 is carefully engineered with a belt-drive motor and die-cast aluminum platter. A precision static balanced, straight-tube tonearm with removable headshell features a factory-mounted MM phono cartridge. Designed with convenience in mind, the Miracord 50 is equipped with a built-in defeatable phono preamplifier, allowing you to add this turntable to virtually any music system.
The resurgence of vinyl has created a groundswell of enthusiasm among audiophiles and music enthusiasts who have never before enjoyed the thrill of spinning an LP! The Miracord 50 is the perfect choice for those building a new LP collection, or for rediscovering the magic of an existing record library.
Superior isolation is achieved with a chassis designed to minimize the sonic effects of vibration and feedback. A low-noise DC servo motor drives a die-cast, high-inertia aluminum platter with special record mat via a rubber belt, resulting in stable speed and minimal wow and flutter.
The tonearm is a static-balance, straight-tube design with precision bearings, built-in anti-skate adjustment and removable bayonet-style headshell. A premounted moving-magnet cartridge takes all the guesswork out of setup and assures proper vertical tracking angle, tracking weight and azimuth adjustment right out of the box.
Unlike most turntables, the Miracord 50 comes complete with a built-in defeatable phono preamp for correct RIAA equalization. That means you can add LP playback without having to add a costly phono stage to line-level preamps or digital-only systems. Just plug it in, put on a record and enjoy rich LP sound!
Styled to complement any interior, the Miracord 50 is available with a silver chassis and gloss-black plinth. A hinged, tinted dustcover is included.
FEATURES:
- Anti-resonant Chassis
- Precision Tonearm and Cartridge
- Built-in Phono Equalizer Amplifier
- Contemporary Finish
- Selectable Speeds: 33⅓ rpm, 45 rpm
SPECIFICATIONS:
| Turntable Section: | |
| Drive System: | Belt Drive |
| Motor: | DC Motor |
| Selectable Speeds: | 33-1/3 & 45 RPM |
| Motor Servo: | Speed Rotation and Servo System |
| Rotation Speed Variation: | ±1% |
| Wow and Flutter: | 0.10% |
| Signal-To-Noise Ratio: | -67db or Higher (A-Weighted) -60db or Higher (Unweighted) |
| Platter: | Aluminum Die-Cast |
| Platter Diameter: | 12" (300mm) |
| Tonearm Section: | |
| Type: | Aluminum Tube, Static-Balanced |
| Effective Arm Length: | 8" (223.6mm) |
| Stylus Pressure Range: | 0g - 4g |
| Cartridge Weight Range: | 3.5g - 6g |
| Effective Arm Mass: | 27.4g |
| Overhang: | 18.6mm |
| Offset Angle: | 25° |
| Anti-Skating: | Adjustment Supported |
| Main Bearing: | Stainless Steel |
| Cartridge Section: | |
| Type: | Audio-Technica AT91 Moving Magnet |
| Stylus Construction: | Bonded Diamond |
| Mount: | Half-Inch |
| Frequency Response: | 20Hz - 20,000Hz |
| Channel Separation: | >18db |
| Channel Balance: | 2.5db |
| Vertical Tracking: | Angle 20° |
| Stylus Pressure: | 2.0g ±0.5g |
| Cartridge Weight: | 5.0g ±0.5g |
| Stylus Pressure: | 2.0g ±0.5g |
| Headshell Weight: | 0g (including screws, nuts and wires) |
| Phono Equalizer Amplifier: | |
| Type: | Moving Magnet (MM) |
| Phono Output: | 2.5mV (1kHz, 3.54cm/sec) |
| Line Output: | 140mV (-17dbV) |
| Phono/Line: | Switchable |
| Supported Load Impedance: | 47k Ohms |
| General: | |
| Connector: | RCA Pin Jack (Including RCA Cable Accessories) |
| Voltage: | 100VAC - 240VAC @ 50Hz - 60Hz |
| Power Consumption: | 1.5W (<0.5W at Standby) |
| Dimensions: | H 16.05" x W 5.5" x D 14.2" (H 408mm x W 140mm x D 361mm) |
| Weight: | 12.1 lbs (5.5kg) |
