ELAC - IW-S10EQ-W - 10" - 400 Watt In-Wall Subwoofer (Single)

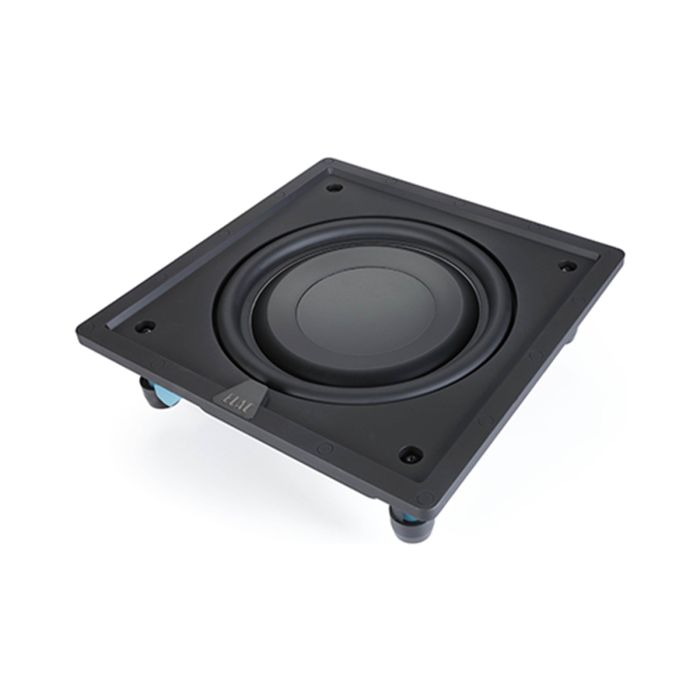

The ELAC IW-S10EQ-W is an Integrator Series in-wall subwoofer system designed to deliver deep bass without taking up floor space. Its 10" thin-profile woofer installs into the wall and pairs with the included 400W RMS BASH amplifier, making it a strong option for home theater rooms, media spaces, and custom installations where a traditional subwoofer cabinet is not ideal.
ELAC’s Cabinet Volume Correction technology helps the subwoofer adapt to the wall cavity where it is installed. The amplifier and ELAC In Wall Sub Control app analyze the installation environment and adjust DSP tuning to help maintain consistent bass performance, even when wall volume and placement vary from room to room.
Automatic Room EQ uses a smartphone microphone to calibrate the subwoofer to the listening space, while manual adjustment is also available through the app. With RCA inputs, Ethernet, 12V trigger, RS232, app control, and a compact in-wall design, the IW-S10EQ-W provides a clean, installation-friendly way to add controlled low-frequency performance to a custom audio system.
FEATURES:
- 10" in-wall subwoofer designed for discreet bass performance
- Includes matching 400W RMS rack-mount BASH amplifier
- Thin-profile woofer installs in-wall without a traditional back box
- Cabinet Volume Correction helps optimize performance in different wall volumes
- Automatic Room EQ uses a smartphone microphone for room calibration
- 12-band parametric equalizer supports automatic and manual adjustment
- ELAC In Wall Sub Control app supports iOS and Android setup
- Ethernet, 12V trigger, and RS232 connections support system integration
- RCA L/R and LFE inputs support flexible receiver and processor connections
SPECIFICATIONS:
| Product Type | 10" In-Wall Subwoofer and Amplifier |
| Series | Integrator Series |
| Model Number | IW-S10EQ-W |
| Woofer | 10" High-Excursion Doped Paper Cone |
| Passive Radiator | 10" High-Excursion Doped Paper Cone |
| Frequency Response | 28Hz - 150Hz |
| Crossover Frequency | 50Hz - 150Hz |
| Amplifier Type | BASH |
| Maximum Amplifier Power | 400W RMS |
| App Controlled | Yes, iOS and Android |
| DSP | Yes |
| Room Correction | Cabinet Volume Correction and Automatic Room EQ |
| Standby Power Consumption | 1W |
| Inputs | 2 x RCA, L/R and LFE |
| Data Connection | Ethernet, 12V Trigger, RS232 |
| Cabinet Finish | Black |
| Accessories Included | AC Power Cord, Template |
| Woofer Dimensions (W x H x D) | 12.2" x 12.2" x 4.23" (310mm x 310mm x 107mm) |
| Woofer Mounting Depth | 3.8" (97mm) |
| Total Net Weight | 32.1 lbs (14.6kg) |
| Amplifier Net Weight | 12.9 lbs (5.8kg) |
| Subwoofer Net Weight | 14.2 lbs (6.46kg) |
