ELAC - IC-VS6-B - 6.5" Passive In-Ceiling Dual Subwoofer (Single)

ELAC -IC-VS6-B 6.5" Passive In-Ceiling Speaker (Single)
The ELAC IC-VS6-B Vertex In-Ceiling Subwoofer is designed for custom installations where low-frequency reinforcement is needed without placing a traditional subwoofer in the room. Its in-ceiling design installs between standard ceiling joists and uses a port opening that can be trimmed out to better match modern room aesthetics.
Inside the enclosure, a 6.5" dual voice coil woofer delivers bass support from a compact form factor. The bandpass design vents through a flexible port tube, which helps simplify placement while remaining rigid enough to reduce port noise caused by wind turbulence.
The IC-VS6-B is sonically matched to ELAC IC-V31 speakers, creating a discreet ceiling speaker system that can visually complement small aperture lighting. It can also be used with other speaker systems that need added low-frequency support, making it a practical solution for distributed audio, media rooms, and design-conscious installations.
FEATURES:
- Passive in-ceiling subwoofer designed for discreet custom installation
- 6.5" dual voice coil woofer delivers low-frequency reinforcement
- Bandpass enclosure vents through a flexible port tube

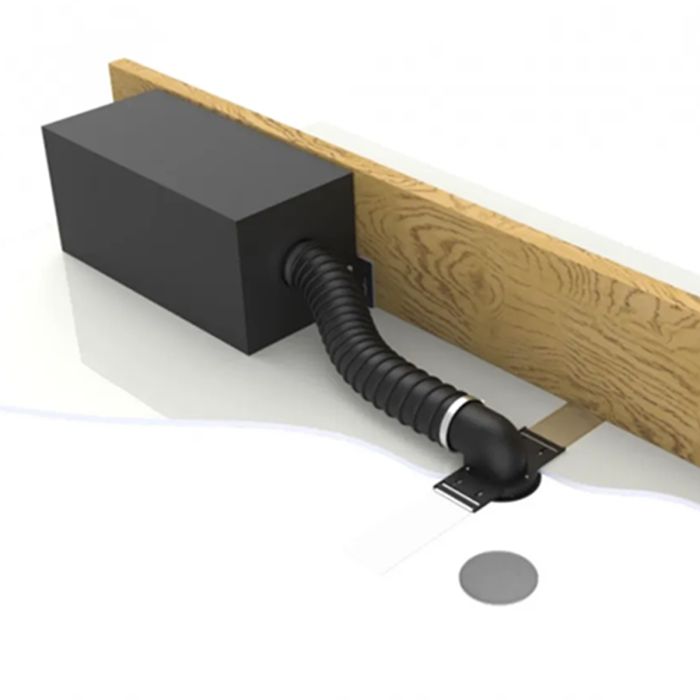

- Flexible port tube supports versatile installation between ceiling joists
- Designed to fit between standard ceiling joists
- Port coupling ring allows trim out to match room aesthetics
- Round or square grille options available for visual flexibility
- Sonically matched to ELAC IC-V31 speakers for balanced systems
- Can also complement other speakers needing added bass support
SPECIFICATIONS:
| Product Type | Passive In-Ceiling Subwoofer |
| Series | Vertex / Integrator Series |
| Model Number | IC-VS6-B |
| Woofer | 6.5" Dual Voice Coil Woofer |
| Enclosure Type | Bandpass In-Ceiling Enclosure with Flexible Port Tube |
| Frequency Response | 35Hz - 125Hz + 3dB |
| Sensitivity | 87dB @ 2.83V / 1m |
| Crossover | 125Hz @ 12dB per Octave |
| Impedance | 6 Ohms Nominal |
| Max Power Input | 150W |
| Flexible Port Tube Diameter | 3" (76.2mm) |
| Dimensions (H x W x D) | 9.0" x 19.4" x 9.0" (230mm x 495mm x 230mm) |
| Installation Type | In-Ceiling, Between Standard Ceiling Joists |
| Grille Options | Round or Square Grilles Available |
