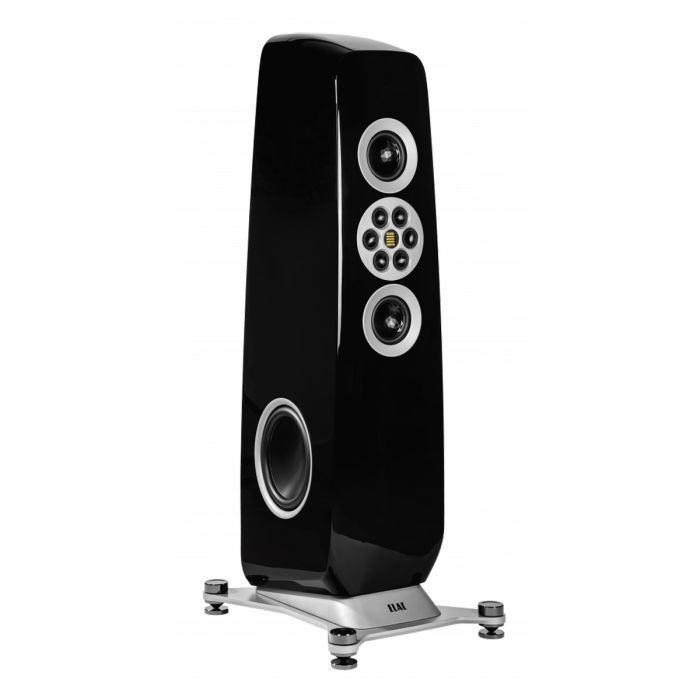

ELAC - M 807 - Concentro 2.0 Floorstanding Speakers (Single)
SPECIAL ORDER: This item is built-to-order. For availability and purchase information please send us a message. Or, call 877-370-1972. Thank you.

ELAC - M 807 - Concentro 2.0 Floorstanding Speakers (Single)
The ELAC Concentro M 807 stands as a flagship expression of modern loudspeaker design, combining advanced acoustic engineering with a sculptural cabinet that is as functional as it is visually striking. Developed as part of ELAC’s Concentro series evolution, it integrates refined materials, precision construction, and a carefully controlled enclosure geometry to reduce resonance and optimize dispersion. The result is a presentation that remains composed, expansive, and highly detailed, with a natural sense of space that adapts to real-world listening environments.
At the center of its performance is ELAC’s VXe technology, a six-driver circular midrange array surrounding the JET 6c tweeter in a concentric configuration. This design allows for adjustable directivity, giving users the ability to tailor how sound interacts with the room. With multiple selectable modes, the speaker can shift between focused imaging and a more diffuse, room-filling presentation, maintaining clarity while enhancing depth and spatial realism.
Supporting this system are dual 250mm aluminum sandwich woofers, positioned for impulse compensation and paired with a down-firing bass reflex design. This configuration delivers deep, controlled low-frequency performance while minimizing room interaction issues. Combined with a precision-engineered crossover and ELAC’s crystal membrane driver technology, the M 807 maintains tonal accuracy and dynamic control across the full frequency range, making it a true reference-level floorstanding speaker.
FEATURES:
- 4-way bass reflex floorstanding speaker design
- VXe six-driver circular midrange array system
- JET 6c tweeter with fast response and wide bandwidth
- Adjustable directivity with multiple tuning modes
- Dual 10" aluminum sandwich woofers
- Impulse-compensated woofer placement for controlled bass
- Down-firing bass reflex system for flexible placement
- Crystal membrane driver technology for reduced distortion
- Precision crossover with premium internal components
- Non-parallel cabinet surfaces reduce internal resonance
- Six-axis internal bracing for structural rigidity
- High-gloss finishes with aluminum accent detailing
- Designed for adaptable performance across room types
- Reference-level imaging, depth, and dynamic control
SPECIFICATIONS:
| Speaker Type | 4-Way, Bass Reflex |
| Woofer | 2 x 9.84" (250 mm), AS Cone |
| Low-Midrange | 2 x 4.53" (115 mm), AS-XR Cone |
| High-Midrange | 6 x 1.57" (40 mm), A-XR Cone |
| Tweeter | JET 6c |
| Crossover Frequency | 150 | 650 | 2650 Hz |
| Nominal Power Handling | 300 W |
| Peak Power Handling | 400 W |
| Frequency Range (EC 268-5) | 24 - 50000 Hz |
| Sensitivity | 88 dB / 2.83 V/m |
| Nominal Impedance | 4 ohms |
| Minimum Impedance | 3.1 ohms at 350 Hz |
| Recommended Amplifier Power | 80 - 600 W/Channel |
| Suitable Amplifier Impedance | 4-8 ohms |
| Finishes | Black High Gloss, White High Gloss; Deco Rings in Black or Gray |
| Accessories | Bi-Wiring Set, Polishing Cloth, Transport Straps |
| Dimensions (H x W x D) | 52.76" x 18.15" x 23.43" (1340 mm x 461 mm x 595 mm) |
| Weight | 136.69 lbs (62 kg) |
| Manufacturer's Warranty: | 3 Year |
