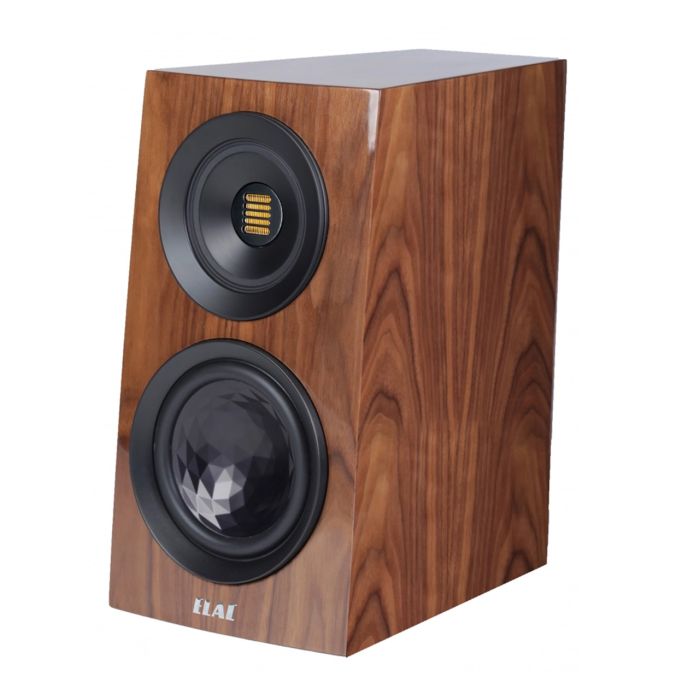

ELAC - CBS503.2 - Concentro 2.0 Bookshelf Speakers (Pair)

ELAC - CBS503.2 - Concentro 2.0 Bookshelf Speakers (Pair)
The ELAC Concentro S 503.2 brings the Concentro experience into a compact bookshelf design built for serious two-channel listening. Its carefully integrated acoustic architecture is designed to produce precise imaging, natural tonal balance, and a focused soundstage, allowing vocals and instruments to emerge with clarity and convincing scale. The smaller cabinet also makes the S 503.2 easier to integrate into rooms where a full-size floorstanding speaker may not be practical.
At the heart of the S 503.2 is ELAC’s JET 6 concentric driver, which combines the company’s folded-ribbon tweeter technology with an integrated midrange system. By aligning the acoustic centers and controlling dispersion, this configuration helps create a more coherent presentation with strong focus and detail. A 180mm AS-XR crystal membrane woofer handles low-frequency reproduction, using a rigid diaphragm structure designed to control resonance while maintaining speed and dynamic expression.
Adjustable Directivity Control gives you additional flexibility to tailor the speaker’s dispersion to your room and listening position, while the sculpted cabinet reflects the same architectural design language used throughout the Concentro S series. Handcrafted in Kiel, Germany, the Concentro 2.0 S 503.2 is carefully integrated acoustic architecture that creates a seamless presentation where vocals, instruments, and fine detail emerge with remarkable focus and natural scale.
FEATURES:
- Compact Concentro 2.0 bookshelf speaker engineered for precise imaging and natural tonal balance
- JET 6 concentric high-frequency driver integrates ELAC’s folded-ribbon tweeter with a dedicated midrange system
- 180mm AS-XR crystal membrane woofer delivers controlled, dynamic low-frequency performance
- Concentric driver architecture aligns acoustic centers for improved coherence and spatial focus
- Adjustable Directivity Control helps tailor dispersion to your room and listening position
- Crystal membrane geometry increases diaphragm stiffness while reducing unwanted resonance
- Designed for exceptional detail, speed, and transparency across the listening range
- Compact cabinet offers greater placement flexibility than larger Concentro floorstanding models
- Sculpted cabinet geometry balances acoustic performance with a distinctive architectural form
- Optional LS 100 stand provides a dedicated matching support solution
- Handcrafted in Kiel, Germany
SPECIFICATIONS:
| Height | 15.75" (400 mm) |
| Width | 8.86" (225 mm) |
| Depth | 14.65" (372 mm) |
| Type | 3-Way, Bass Reflex |
| Woofer | 1 x 7.09" (180 mm), AS-XR Cone |
| Midrange | 1 x 1.97" | 5.12" (50 | 130 mm), AS-XR AL Cone |
| Tweeter | JET 6 |
| Crossover Frequency | 400 | 2600 Hz |
| Nominal/Peak Power Handling | 120 W | 200 W |
| Minimum Impedance | 4.8 Ohms at 120 Hz |
| Peak Power Handling | 400 W |
| Sensitivity | 87 dB / 2.83 V / m |
| Suitable Amplifier Impedance | 4 - 8 Ohms |
| Nominal Impedance | 4 Ohms |
| Recommended Amplifier Power | 60 - 500 W / Channel |
| Finishes | High-Gloss Black Lacquer, High-Gloss White Lacquer, High-Gloss Walnut Veneer |
| Accessories | Bi-Wiring Jumper Set, 3 DCR (Directivity Control Rings) |
| Weight | 29.54 lbs (13.4 kg) |
| Warranty: | 3 Years |
