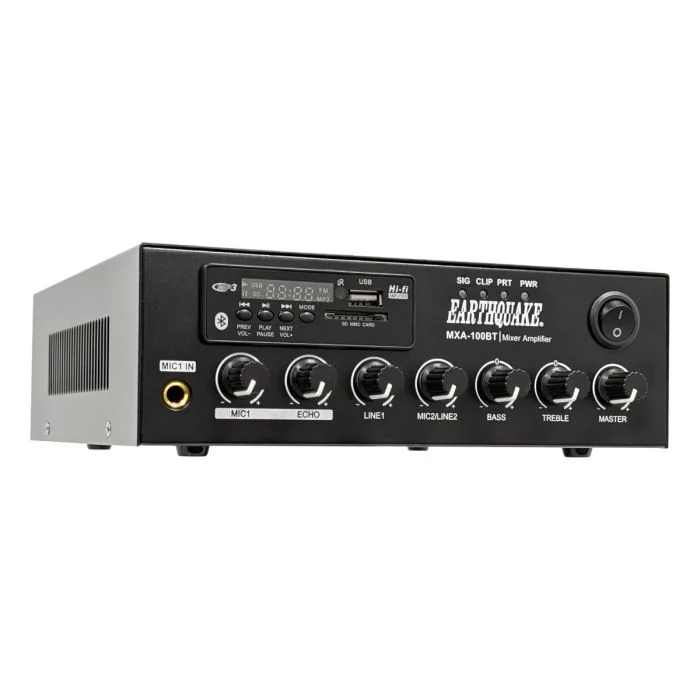

Earthquake - MXA-100BT - 60W Commercial Amplifier w/ Bluetooth
Earthquake - MXA-100BT - 60W Commercial Amplifier w/ Bluetooth
The Earthquake MXA-100BT Mixer Amplifier with Bluetooth delivers 60W RMS of power, making it ideal for various settings such as schools, supermarkets, banks, and hotels for background music and public address. This all-in-one device combines a media player, preamp, and mixer power amplifier in a single unit. It consolidates audio sources with multiple sources and line output. The VOX feature enhances functionality, while an FM tuner, USB, and SD-card slot on the front panel ensure easy accessibility. 100V/70V/4–8 Ohm speaker outputs allow for multiple connections, and protection mechanisms ensure safety. The MXA-100BT, featuring echo effects, is well-suited for diverse applications and supports both 110VAC and 12VDC–24VDC power supply systems, making it adaptable for mobile sound systems in vehicles or vessels.
The MXA-100BT is equipped with a built-in media player that supports Bluetooth v5.3, USB/SD MP3 playback, and an FM radio tuner, providing versatile audio source options. It offers 4 Ohms – 8 Ohms, 70V, and 100V speaker output options, allowing for flexible speaker configurations. The front panel includes a 1/4" microphone jack input, switchable balanced XLR input with +48V phantom power, RCA input, and RCA output. Front MIC, Echo, Line, and Master volume controls, as well as Bass and Treble tonal controls, provide comprehensive sound customization. The amplifier also features short, clip, overload, and thermal protection circuitry to ensure reliable operation.
With its compact size and robust feature set, the MXA-100BT is suitable for both stationary and mobile applications, including use in vehicles or vessels. The package includes an IR remote for convenient control, a 5 ft. external FM antenna, and a power cable. Its dual power supply support enhances its adaptability across various environments. The MXA-100BT is a versatile solution for commercial audio distribution, offering reliable performance for background music and public address systems.
FEATURES:
- 60W RMS output for versatile applications
- Built-in Bluetooth for wireless streaming
- Integrated FM tuner, USB, and SD card slot
- MIC inputs for flexibility
- Tel input for paging and public address
- MIC VOX function enhances voice priority
- 100V/70V/4 Ohms – 8 Ohms speaker outputs
- Echo effects for enhanced audio customization
- Supports 110VAC and 12VDC-24VDC power supply
- 1-Year Limited Manufacturer's Warranty
- 4-Year Limited Manufacturer's Labor Warranty
SPECIFICATIONS:
Power Output (RMS): | 60W This Rating not tested under the FTC Standard |
Power Output (MAX): | 200W This Rating not tested under the FTC Standard |
Frequency Response (±3dB): | 60Hz - 15kHz |
S/N Ratio (Line): | ≥85dB |
S/N Ratio (Mic): | ≥72dB |
THD: | <0.5% |
Bluetooth Version: | 5.3 |
Input Specifications (Mic): | 5mV - 8mV (600 Ohms) |
Input Specifications (Line): | 150mV - 470mV (10k Ohms) |
Inputs: | 1/4" (6.35mm) Mic 1 |
XLR (Mic 2, Mono) | |
RCA (Stereo) | |
USB-A | |
SD-Card | |
FM Tuner | |
Priority In | |
Outputs: | RCA (Stereo) |
Speaker Level (4 Ohms – 8 Ohms, 70V, 100V) | |
Dimensions: | H 3" x W 8.7" x D 9.4" (H 75mm x W 220mm x D 240mm) |
Weight: | 5.7 lbs (2.6kg) |
