Canton - Reference Alpha 1 - 4x8.6" 3-Way Floorstanding Speaker (Pair)

Canton - Reference Alpha 1 - 4 x 8.6" 3-Way Floorstanding Speaker (Pair)

A milestone in development

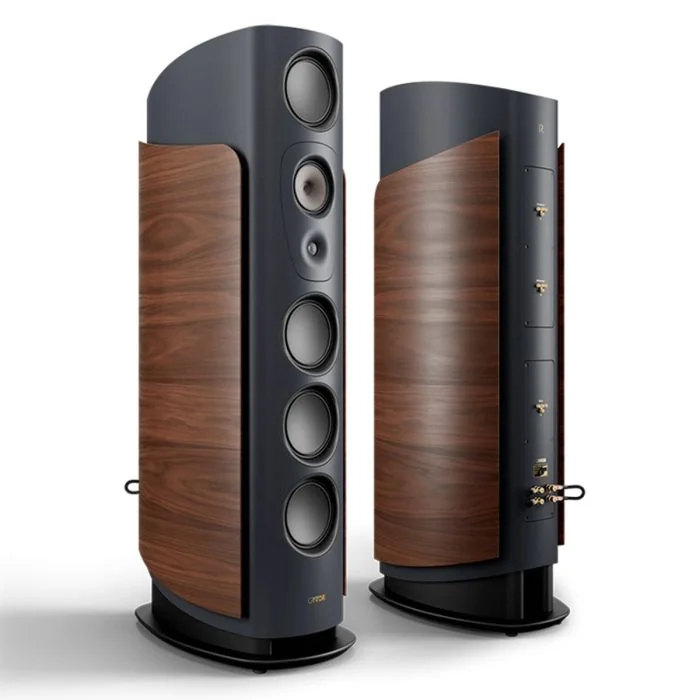

The Canton Reference Alpha 1 is the flagship of the Reference series, created to deliver uncompromising musical scale, precision, and dynamic authority. Its imposing 3-way cabinet houses six drive units, including four large woofers, a dedicated midrange driver, and an advanced dome tweeter. With bass extension reaching 18Hz, 500W nominal power handling, and a music power capacity of 950W, the Reference Alpha 1 is designed for expansive high-end systems where realistic volume, deep low-frequency reproduction, and precise spatial presentation are essential.

Sound quality at the highest level

The high-frequency system uses a rigid, lightweight Diamond-Like Carbon dome paired with an asymmetrical waveguide and optimized grille geometry. A diamond-coated Black Ceramic Tungsten midrange driver combines Canton’s Triple Curved Cone construction with a phase-optimized inverse dome for natural vocals, accurate instrumental timbre, and focused imaging. Four 8.62-inch ceramic-tungsten woofers use Wave Surround technology and a down-firing Bass Guide to produce controlled, evenly distributed bass with reduced airflow noise.

Sound quality starts with the enclosure

Every element of the cabinet and signal path is engineered to support the driver system. Curved multi-layer side panels, internal reinforcement, anti-parallel reflector chambers, and specialized damping reduce enclosure resonance and standing waves. Mundorf crossover components, CantoLink 600 internal wiring, WBT nextgen terminals, and high-end cable bridges help maintain signal integrity, while adjustable treble, midrange, and bass levels allow the speakers to be tailored to the listening room. Handcrafted lacquer and walnut finishes complete a loudspeaker designed to provide both a commanding visual presence and reference-level performance.

Harmony of design and wood craftsmanship

Curved, multi-layered side panels provide structural stability while minimizing resonance. Paired with carefully chosen materials, these design elements merge seamlessly into the overall aesthetic. Acoustic optimization of the panels reduces edge reflections, giving the speakers both a visually striking presence and a refined, balanced sound.

Elaborate internal reinforcement

To manage the significant internal forces generated by the drivers, the Reference Alpha features a reinforced cabinet design. Strategically placed damping elements and anti-parallel reflector units prevent standing waves and unwanted vibrations, ensuring consistent performance across all listening levels.

Diamond midrange system

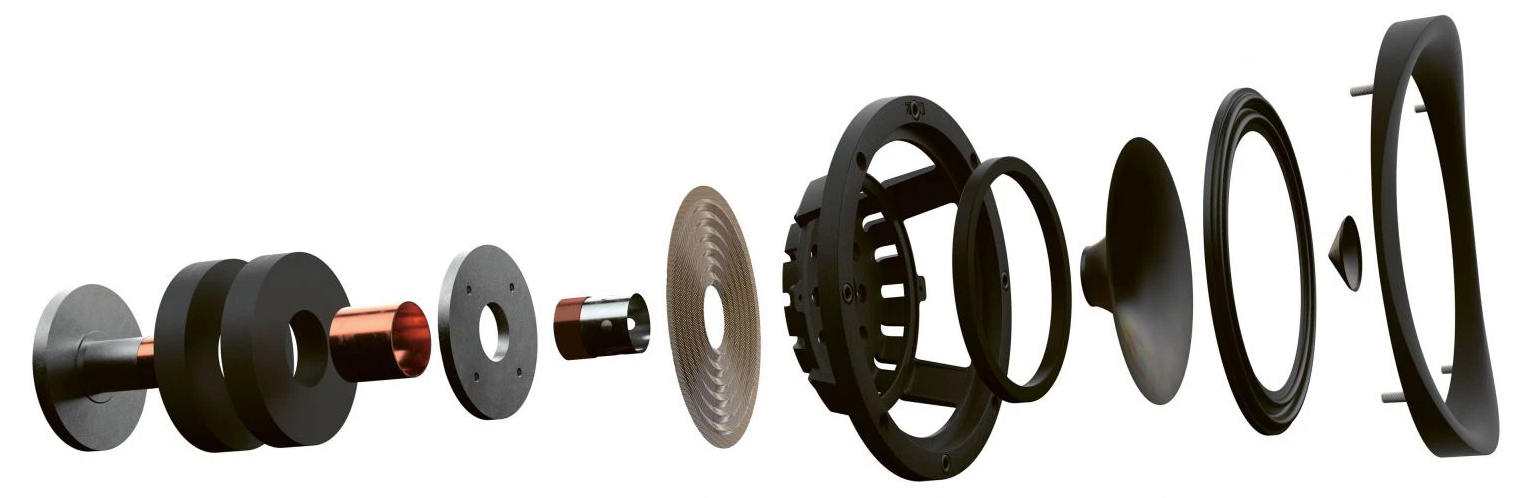

The midrange features an elaborate diamond-coated chassis for maximum stability and minimal coloration. Using advanced BCT cones—aluminum infused with ceramic and tungsten particles—the system delivers precise, natural reproduction of voices and instruments. The triple-curved cone design enhances rigidity, while the phase-optimized point-source inverse dome tweeter ensures exceptional spatial accuracy.

Diamond tweeter system

The DLC-coated dome tweeter guarantees rigidity and superior vibration control. Together with the asymmetrical waveguide and computer-optimized grille, it ensures wide, even dispersion, especially in the high-frequency range above 15 kHz. The result is crystal-clear treble where the subtlest musical details shine.

Optimized down to the last component

Every element of the Reference Alpha is engineered to work in harmony. From the chassis to the suspension and dust caps, each component contributes to a seamless balance between highs, mids, and lows. The system emphasizes clarity, dynamic range, and precise detail reproduction, creating a cohesive, immersive listening experience.
