Bryston - Bi-200 - 200W Analog Dual-Mono Integrated Amplifier
SKU
BRY-Bi-200-AMP
Please allow approximately 1-2 weeks for processing and shipping. For more information, please send us a message. Or, call 877-370-1972. Thank you.
Bryston - Bi-200 - 200W Analog Dual-Mono Integrated Amplifier is available to buy in increments of 1
No further discounts or coupons apply.
FREE delivery OVER $35 (USA ONLY)
30-day return

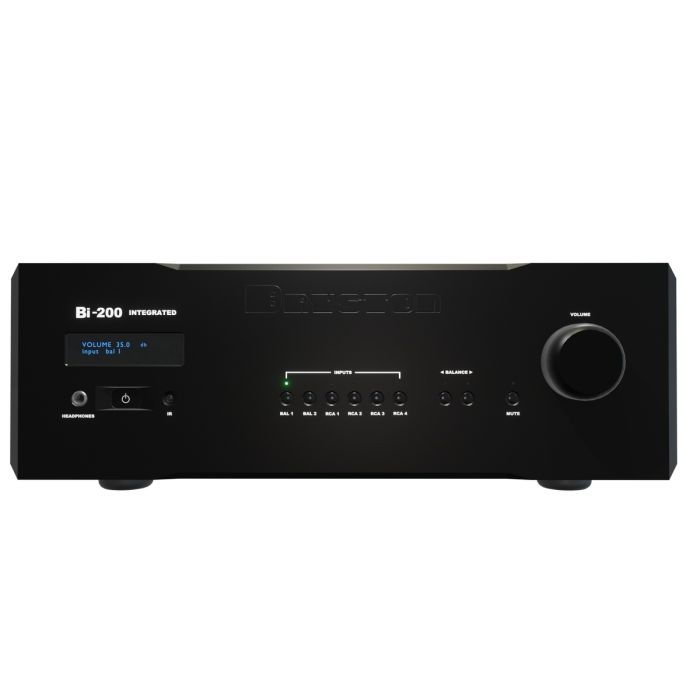

Bryston - Bi-200 - 200W Analog Dual-Mono Integrated Amplifier
The Bryston Bi-200 is a premium dual-mono integrated amplifier that combines technologies from the BP-19 analog preamplifier and 3B power amplifier in one chassis. It delivers 200 watts per channel into 8 Ohms and 300 watts per channel into 4 Ohms, providing the output and current capability needed to drive a broad selection of high-performance loudspeakers. Combining both sections also eliminates the additional space and interconnect cables required by separate preamplifier and power-amplifier components.
Its fully balanced discrete preamplifier architecture uses tightly matched components and a compact signal path to reduce noise, distortion and common-mode interference. Two pairs of balanced XLR inputs and four pairs of RCA inputs accommodate as many as six analog sources. Balanced and unbalanced preamplifier outputs can be configured for fixed or variable operation, while an independently buffered headphone output supports private listening and automatically mutes the speaker and preamplifier outputs when headphones are connected.
The Bi-200 is available with optional moving-magnet or moving-coil phono circuitry, including 20dB and 26dB moving-coil transformer choices. A white OLED display, channel-balance control, BR-4 remote compatibility and Ethernet, USB, RS-232 and trigger connections support convenient operation and system integration. Passive convection cooling eliminates fan noise, while the Soft-Start system manages startup current for reliable operation in demanding stereo installations.
FEATURES:
- Combines Bryston BP-19 preamplifier and 3B amplifier technologies
- Fully balanced discrete analog signal path from input to output
- Dual-mono amplifier architecture with independent channel power supplies
- Delivers 200W per channel into 8 Ohms
- Delivers 300W per channel into 4 Ohms
- Two pairs of balanced XLR analog inputs
- Four pairs of unbalanced RCA analog inputs
- Balanced XLR and unbalanced RCA preamplifier outputs
- Outputs are configurable for fixed or variable level operation
- Digitally controlled analog volume adjustment
- Channel balance adjustment in precise 1dB increments
- Independent buffered 1/4" headphone output
- Optional moving-magnet and moving-coil phono modules
- Optional moving-coil transformer with 20dB or 26dB gain
- White OLED display shows source, volume, and system information
- Fully passive convection cooling eliminates noisy fans
- Soft-Start microprocessor manages startup current demand
- Ethernet, USB, and RS-232 system control
- 12V trigger output controls compatible system components
- Compatible with the Bryston BR-4 infrared remote control
- Machined aluminum chassis and front dress panel
- Available with standard, rack-mount, and custom-color faceplates
- Designed and manufactured in Canada
SPECIFICATIONS:
| Product Type | Dual-Mono Stereo Integrated Amplifier |
|---|---|
| Preamplifier Architecture | Fully Balanced Discrete Analog Circuit |
| Amplifier Architecture | Dual Mono with Independent Channel Power Supplies |
| Output Power at 8 Ohms | 200W per Channel |
| Output Power at 4 Ohms | 300W per Channel |
| Balanced Inputs | 2 Pairs of Female XLR |
| Unbalanced Inputs | 4 Pairs of RCA |
| Balanced Output | 1 Pair of Male XLR; Fixed or Variable |
| Unbalanced Output | 1 Pair of RCA; Fixed or Variable |
| Speaker Outputs | Left and Right Multi-Way Binding Posts |
| Headphone Output | 1 x 1/4" TRS with Independent Buffer |
| Volume Control | Digitally Controlled Analog Volume |
| Balance Control | ±6dB in 1dB Increments |
| Frequency Response | 20Hz-20kHz, ±0.05dB |
| Preamplifier THD+N | 0.0006% or Less |
| Intermodulation Distortion | 0.0005% or Less |
| Amplifier THD+N | Measured from 20Hz-20kHz at 200W into 8 Ohms |
| Optional MM Phono Stage | 41dB Gain at 1kHz with RIAA Equalization |
| Optional MC Phono Stage | Moving-Coil Step-Up Transformer with 20dB or 26dB Gain |
| Display | White OLED |
| Control Connections | Ethernet, USB, RS-232, Infrared, and 12V Trigger Output |
| Remote Compatibility | Bryston BR-4 |
| Cooling | Passive Convection Cooling |
| Standby Power Consumption | Less Than 0.5W |
| Idle Power Consumption | 60W or Less |
| Faceplate Width | 17" or 19" (431mm.8 or 482.6mm) |
| Dimensions (W x H x D) | 17" or 19" x 4.6" x 13" (431.8mm or 482.6mm x 116.8mm x 330.2mm) |
| Weight | 37.0 lbs. (16.8kg) |
| Warranty | 10 Years |
