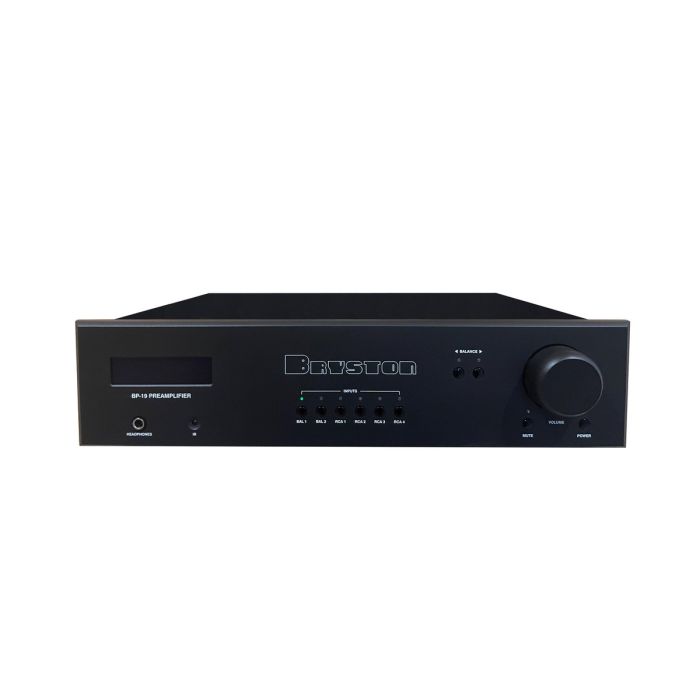

Bryston - BP-19 - Fully Balanced Analog Preamplifier
The Bryston BP-19 is a high-performance analog stereo preamplifier developed using design advancements created for the company’s award-winning BR-20. Its fully balanced signal path extends from input to output and uses tightly matched, hand-selected components within a compact circuit architecture. An oversized toroidal transformer and optimized discrete operational amplifier help the BP-19 reproduce music with low noise, minimal distortion, precise imaging, and wide dynamic expression.
Two pairs of balanced XLR inputs and four pairs of unbalanced RCA inputs accommodate a complete collection of analog source components. Variable and fixed outputs are provided in both balanced XLR and unbalanced RCA formats, allowing the BP-19 to feed a power amplifier, headphone amplifier, recorder, or additional audio zone. Vinyl listeners can select an optional version with Bryston’s BP-2 moving-magnet phono stage or a moving-coil transformer module offering 20dB or 30dB of additional gain.
The included infrared remote provides convenient control of source selection, volume, balance, mute, and other primary functions from the listening position. RS-232 and Ethernet connectivity support integration with compatible home-automation systems, while 12V trigger outputs can switch connected power amplifiers and other equipment. Available with 17-inch or 19-inch faceplates, rack-mount and custom-color options, the Canadian-built BP-19 is designed to serve as the long-term analog control center of a reference stereo system.
FEATURES:
- High-performance analog stereo preamplifier developed from Bryston BR-20 technology
- Fully balanced signal path extends from input through output
- Optimized discrete operational amplifier reduces noise and distortion
- Oversized toroidal transformer provides stable low-noise power
- Hand-selected components support precise channel matching and signal integrity
- Two pairs of balanced XLR analog inputs
- Four pairs of unbalanced RCA analog inputs
- Optional BP-2 moving-magnet phono stage supports vinyl playback
- Optional moving-coil transformer modules provide 20dB or 30dB gain
- Low 0.0006% THD+N supports transparent signal reproduction
- Front-panel controls provide direct source, volume, balance, and mute adjustment
- Included infrared remote controls inputs and primary preamplifier functions
- RS-232 and Ethernet connections support home-automation integration
- 12V trigger outputs control compatible power amplifiers and components
- Available with 17" or 19" faceplates
- Standard and custom faceplate finishes complement different system designs
- Meticulously handcrafted in Canada
- Covered by Bryston’s 10-year analog-product warranty
SPECIFICATIONS:
| Product Type | Fully Balanced Analog Stereo Preamplifier |
|---|---|
| Model | BP-19 |
| Circuit Design | Fully Balanced, Discrete Analog Signal Path |
| Power Supply | Oversized Toroidal Transformer |
| Balanced Inputs | 2 Pairs of Female XLR |
| Unbalanced Inputs | 4 Pairs of RCA |
| Balanced Outputs | 2 Pairs of Male XLR; 1 Variable and 1 Fixed |
| Unbalanced Outputs | 2 Pairs of RCA; 1 Variable and 1 Fixed |
| Optional MM Phono Stage | Bryston BP-2 Moving-Magnet RIAA Module |
| Optional MC Phono Stage | Moving-Coil Transformer Module with 20dB or 30dB Gain |
| Frequency Response | 20Hz-20kHz, ±0.05dB |
| THD+N | Less Than 0.0006%, 20Hz-20kHz |
| Intermodulation Distortion | 0.0003% or Less |
| Signal-to-Noise Ratio | Balanced: -110dBr; Unbalanced: -110dBr |
| Control | Front Panel, Infrared Remote, RS-232, and Ethernet/IP |
| Trigger Outputs | 12V DC |
| Standby Power Consumption | 0.5W |
| Idle Power Consumption | 12W |
| Operating Power Consumption | 12W |
| Faceplate Width | 17" or 19" (431.8mm or 482.6mm) |
| Dimensions (W x H x D) | 17" or 19" x 4.6" x 13" (431.8mm or 482.6mm x 116.8 x 330.2mm) |
| Weight | 12.0 lbs (5.5kg) |
| Shipping Weight | 17.0 lbs (7.7kg) |
| Warranty | 10 Years |
