Bryston - BDA-3.14 - DAC Streamer and Digital Preamplifier
SKU
BRY-BDA-3-14-DAC
Please allow approximately 1-2 weeks for processing and shipping. For more information, please send us a message. Or, call 877-370-1972. Thank you.
Bryston - BDA-3.14 - DAC Streamer and Digital Preamplifier is available to buy in increments of 1
FREE delivery OVER $35 (USA ONLY)
30-day return

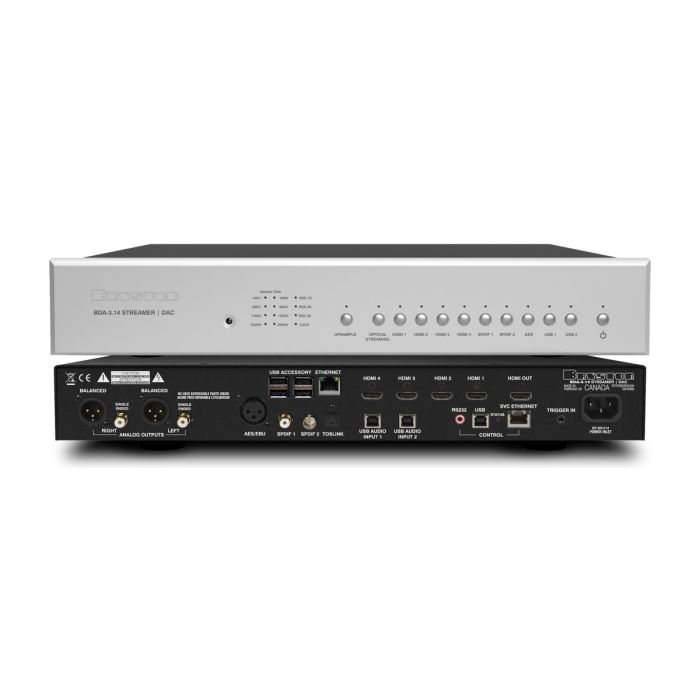

Bryston - BDA-3.14 - DAC Streamer and Digital Preamplifier
The Bryston BDA-3.14 combines a high-resolution digital-to-analog converter, network music streamer, and digital preamplifier within one compact component. Bryston integrates its established BDP streaming platform with the conversion architecture of the BDA-3, connecting the two sections internally through I²S for direct digital signal transfer. This unified design allows the BDA-3.14 to serve as the primary digital source and control center for a system built around a power amplifier, integrated amplifier, or active loudspeakers.
The internal streamer supports music playback through 24-bit/192kHz and provides access to TIDAL, Qobuz, Roon, Internet radio, connected USB drives, and network-attached storage. External digital sources can connect through two USB inputs, AES/EBU, RCA and BNC coaxial inputs, or optical input. The conversion stage supports PCM through 32-bit/384kHz and DSD through DSD256, while selectable upsampling is available for compatible inputs.
Separate analog and digital power supplies help isolate sensitive audio circuitry, while Bryston’s fully discrete Class A balanced output stage provides both XLR and RCA connections. Variable output control allows the BDA-3.14 to operate directly with a power amplifier, and system integration options include infrared, RS-232, IP, and 12V trigger control. An aluminum chassis, machined faceplate, multiple finish options, and Canadian manufacturing complete a digital component designed for high-performance music systems.
FEATURES:
- High-resolution DAC, network music streamer, and digital preamplifier
- Combines Bryston BDP streaming and BDA digital-conversion technologies
- Internal I²S connection links the streamer directly to the DAC
- Built-in streamer supports playback up to 24-bit/192kHz
- Supports TIDAL, Qobuz, Roon, Internet radio, and additional services
- Plays local music from connected USB drives and network-attached storage
- Web-based interface provides control from phones, tablets, and computers
- PCM decoding supports resolutions up to 32-bit/384kHz
- Native DSD playback supports resolutions up to DSD256
- User-selectable upsampling is available for compatible digital inputs
- Dual asynchronous USB inputs accommodate compatible digital sources
- AES/EBU, RCA coaxial, BNC coaxial, and optical digital inputs
- Separate power supplies serve the analog and digital circuitry
- Fully discrete Class A balanced analog output stage
- Balanced XLR and unbalanced RCA analog audio outputs
- Variable output level enables direct connection to a power amplifier
- Machined and anodized aluminum front panel
- Available with multiple faceplate finishes and widths
- Designed and manufactured in Canada
SPECIFICATIONS:
| Product Type | High-Resolution DAC, Network Music Streamer, and Digital Preamplifier |
|---|---|
| Model | BDA-3.14 |
| Internal Streaming Connection | I²S |
| Maximum Streaming Resolution | 24-Bit/192kHz |
| Maximum PCM Resolution | 32-Bit/384kHz |
| Maximum DSD Resolution | DSD256 |
| Upsampling | User Selectable for Compatible Inputs |
| Digital Audio Inputs | 2 x USB, AES/EBU, RCA Coaxial, BNC Coaxial, and Optical |
| Local Music Sources | USB Storage and Network-Attached Storage |
| Streaming Services | TIDAL, Qobuz, Roon, Internet Radio, and More |
| Analog Audio Outputs | Balanced XLR and Unbalanced RCA |
| Analog Output Stage | Fully Discrete Class A Balanced |
| XLR Output Level | 4V |
| RCA Output Level | 2V |
| Frequency Response | 20Hz-20kHz, ±0.1dB |
| THD+N | Less Than 0.002%, 20Hz-20kHz |
| RCA Noise | -134dB |
| XLR Noise | -140dB |
| Power-Supply Design | Separate Analog and Digital Power Supplies |
| Control | Web Interface, Infrared, RS-232, IP, and 12V Trigger |
| Faceplate Width | 17" or 19" |
| Dimensions (W x H x D) | 23.0" x 9.0" x 20.0" (584.2mm x 228.6mm x 508mm) |
| Weight | 8.5 lbs (4kg) |
| Shipping Weight | 13.0 lbs (5.9kg) |
| Warranty | 5 Years |
