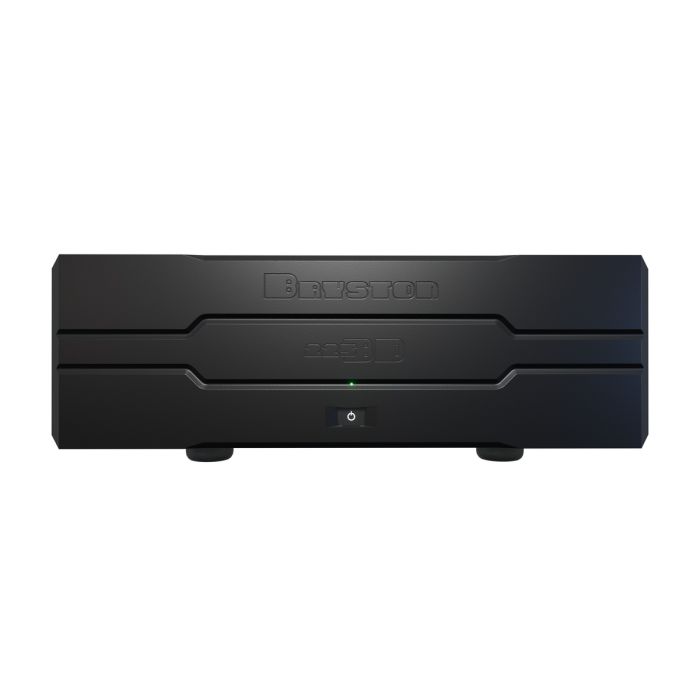

Bryston - BD-225 - 2.0 - Class D Power Amplifier
The Bryston BD-225 2.0 is a high-efficiency Class D power amplifier designed to combine substantial output capability with lower heat generation and flexible system configuration. Each amplifier module delivers 225 watts RMS into 8 Ohms and 450 watts RMS into 4 Ohms, while the common chassis architecture can accommodate from one to six independent channels. This makes the BD-225 2.0 suitable for traditional two-channel systems as well as multichannel, active loudspeaker, and custom-install applications.
Unlike many Class D amplifiers that rely on switching power supplies, Bryston pairs its proprietary Class D modules with a substantial linear power supply, massive toroidal transformer, and 108,000µF of storage capacitance. Bryston developed this approach to provide the instantaneous current reserves required for demanding musical and cinematic transients without the dynamic compression that can occur when an amplifier exhausts its available power supply headroom. The BD-225 can provide up to 1,250 watts of continuous RMS output across its installed channels and as much as 3,750 watts for brief 100ms dynamic peaks.
System connectivity includes balanced XLR and single-ended RCA inputs, a 12V trigger for integration with automated systems, and a 29dB voltage gain with 1.5V input sensitivity. Its efficient Class D topology reduces heat dissipation while maintaining high power-handling capability, and multiple consumer and professional rack-mount faceplates allow the chassis to fit both audiophile and installation-oriented systems. The BD-225 2.0 is manufactured in Canada as part of Bryston’s current Class D amplifier family.
FEATURES:
- High-efficiency Class D power amplifier with Pulse Width Modulation technology
- Delivers 225W RMS per channel into 8 Ohms
- Delivers 450W RMS per channel into 4 Ohms
- Provides up to 1,250W continuous RMS power across all installed channels
- Provides up to 3,750W of dynamic power for 100ms across all installed channels
- Massive linear power supply helps preserve dynamic headroom
- Large toroidal transformer provides substantial instantaneous power reserves
- 108,000µF of storage capacitance supports demanding musical transients
- High-efficiency architecture reduces heat dissipation compared with conventional amplifier designs
- Proprietary Bryston Class D amplifier modules provide high-output capability with reduced power loss
- Balanced XLR and single-ended RCA analog inputs
- 29dB voltage gain
- 1.5V input sensitivity
- 103dB signal-to-noise ratio at full power
- Frequency response extends from 1Hz to 45kHz at -3dB into 6 Ohms
- 12V trigger input supports automated system power control
- Available with consumer or professional rack-mount faceplates
- Available with or without front-panel handles
- Common chassis supports configurations from one to six independent Class D amplifier modules
- Made in Canada
SPECIFICATIONS:
| Amplifier Type: | Class D Power Amplifier |
| Continuous RMS Power per Channel into 8 Ohms: | 225W |
| Continuous RMS Power per Channel into 4 Ohms: | 450W |
| Continuous RMS Power Available to All Channels: | 1,250W |
| Dynamic Power Available to All Channels: | 3,750W (100ms) |
| Frequency Response: | 1Hz - 45kHz (-3dB, 6 Ohms) |
| Signal-to-Noise Ratio: | 103dB at Full Power |
| Input Sensitivity: | 1.5V |
| Voltage Gain: | 29dB |
| Storage Capacitance: | 108,000µF |
| Balanced Input: | XLR |
| Single-Ended Input: | RCA |
| 12V Trigger: | Yes |
| Power Supply Type: | Linear Power Supply with Toroidal Transformer |
| AC Input Voltage: | 115V or 230V |
| Available Channel Configurations: | 1 - 6 Independent Class D Modules |
| Faceplate Options: | Consumer without Handles, Consumer with Handles, PRO Rackmount, PRO Rackmount without Handles |
| Country of Manufacture: | Canada |
| Dimensions (W x H x D): | 17.7" x 5.2" x 16.7" (450mm x 133mm x 425mm) |
| Weight: | 53 lbs (24kg) |
