Bryston - 14B³ - Cubed Dual-Mono Power Amplifier
SKU
BRY-14B-CUBED-AMP
Please allow approximately 1-2 weeks for processing and shipping. For more information, please send us a message. Or, call 877-370-1972. Thank you.
Bryston - 14B³ - Cubed Dual-Mono Power Amplifier is available to buy in increments of 1
No further discounts or coupons apply.
FREE delivery OVER $35 (USA ONLY)
30-day return

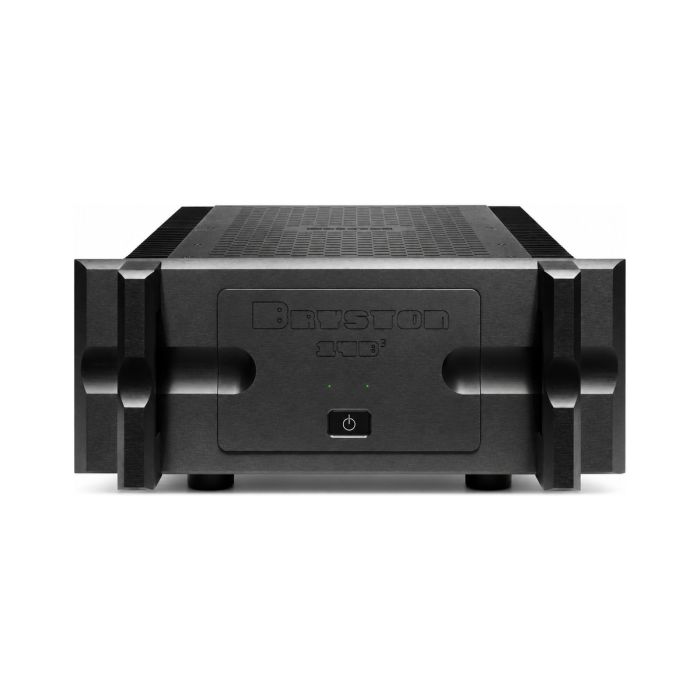

Bryston - 14B³ - Cubed Dual-Mono Power Amplifier
The Bryston 14B³ Cubed is a reference-class dual-mono power amplifier designed to deliver the output capability of two powerful monoblocks from a single chassis. Each channel incorporates its own independent power supply and transformer, allowing the amplifier to deliver 600 watts per channel into 8 Ohms and up to 900 watts per channel into 4 Ohms. This high-current architecture gives the 14B³ the reserves needed to control demanding loudspeakers while preserving speed, dynamics, and low-level detail.
Bryston's Cubed-series design incorporates the company's patented Salomie input circuit, along with switchable 23dB and 29dB gain for compatibility with a wide range of preamplifiers. Balanced XLR and TRS inputs provide strong rejection of externally induced noise, while RCA connections accommodate conventional single-ended systems. The amplifier achieves less than 0.005% THD+N at its full 600-watt rated output into 8 Ohms, with bandwidth extending from below 1Hz to above 100kHz and a damping factor greater than 300.
The 14B³ is also engineered for dependable long-term use. Bryston eliminates cooling fans in favor of large passive heat sinks, while thermal protection circuitry monitors each amplifier channel and SoftStart manages the substantial inrush current produced during startup. A 5V to 12V trigger system allows integration with automated audio systems, and consumer as well as professional rack-mount configurations are available. With its heavy-duty machined aluminum construction, substantial 91-pound chassis, and Canadian manufacturing, the 14B³ is built for high-output stereo systems where control, reliability, and power reserve are priorities.
FEATURES:
- Dual-mono stereo power amplifier with two fully independent amplifier channels
- Delivers 600W per channel into 8 Ohms and up to 900W per channel into 4 Ohms
- Each channel uses its own independent power supply and transformer
- Patented Bryston Salomie input circuit helps reduce noise and distortion
- Switchable 23dB and 29dB gain provides flexible preamplifier matching
- Balanced XLR and TRS inputs support low-noise professional and audiophile systems
- Single-ended RCA inputs provide compatibility with conventional preamplifiers
- SoftStart circuitry manages amplifier inrush current during startup
- 5V to 12V AC/DC trigger input supports automated system power control
- Trigger pass-through allows control voltage to be routed to additional equipment
- Fully passive convection cooling eliminates fan noise during operation
- Thermal protection circuitry safeguards each amplifier channel from overheating
- Front-panel status LEDs indicate normal operation, clipping, mute, and thermal protection
- Wide frequency response extends from below 1Hz to above 100kHz at -3dB
- THD+N measures less than 0.005% from 20Hz to 20kHz at full rated power
- High damping factor greater than 300 at 20Hz into 8 Ohms
- Machined aluminum enclosure provides rigid construction and effective heat dissipation
- Available with 17" or 19" consumer faceplates and a 19" rack-mount PRO version
- PRO version includes rear-panel channel level controls adjustable from 0dB to -14dB
- Made in Canada
SPECIFICATIONS:
SPECIFICATIONS:
| Amplifier | |
| Amplifier Type: | Dual-Mono Stereo Power Amplifier |
| Power Output per Channel: | 600W into 8 Ohms |
| Power Output per Channel at 4 Ohms: | Up to 900W |
| Gain: | Switchable 23dB / 29dB |
| Gain, High: | 29dB (28.28 V/V) |
| Gain, Low: | 23dB (14.14 V/V) |
| Input Sensitivity, High Gain: | 1.0V for 100W / 2.5V for 600W into 8 Ohms |
| Input Sensitivity, Low Gain: | 2.0V for 100W / 4.9V for 600W into 8 Ohms |
| Input Impedance, Single-Ended: | Approximately 7.5k Ohms |
| Input Impedance, Balanced: | Approximately 5k Ohms per Leg |
| IMD: | <0.005% (60Hz + 7kHz, 4:1) |
| THD+N: | <0.005% (20Hz - 20kHz at 600W into 8 Ohms) |
| Noise, Single-Ended 29dB Gain: | <-115dB |
| Noise, Single-Ended 23dB Gain: | <-119dB |
| Noise, Balanced 29dB Gain: | <-116dB |
| Noise, Balanced 23dB Gain: | <-120dB |
| Slew Rate: | >60V/µs |
| Frequency Response (-3dB): | <1Hz to >100kHz |
| Damping Factor: | >300 at 20Hz into 8 Ohms |
| Connections & Control | |
| Balanced Inputs: | XLR and 1/4" TRS |
| Single-Ended Inputs: | RCA |
| Speaker Outputs: | Binding Posts Supporting Banana Plugs, Spade Lugs, and Bare Wire |
| Remote Trigger Input: | 5V - 12V AC or DC |
| Remote Trigger Pass-Through: | Yes |
| PRO Channel Level Adjustment: | 0dB to -14dB |
| Power Consumption | |
| Standby: | <0.5W |
| Idle: | ≤170W |
| At 600W into 8 Ohms: | 2200W |
| At 75W into 8 Ohms: | 875W |
| Heat Load | |
| Idle: | ≤580 BTU/Hour |
| At 600W into 8 Ohms: | 7500 BTU/Hour |
| At 75W into 8 Ohms: | 2985 BTU/Hour |
| General | |
| Cooling: | Passive Convection Cooling |
| Weight: | 91 lbs (41.3kg) |
| 17" C-Series Dimensions (W x H x D): | 17" x 8.1" x 16.8" |
| 19" C-Series Dimensions with Handles (W x H x D): | 19" x 8.1" x 18.4" |
| 19" PRO Mounting Depth: | 16.1" |
| 19" PRO Total Depth: | 18.1" |
| Faceplate Options: | 17" or 19" Consumer / 19" Rack-Mount PRO |
| Finish Options: | Silver or Black; PRO Version Black |
| Country of Manufacture: | Canada |
| Warranty: | 10 Years |
