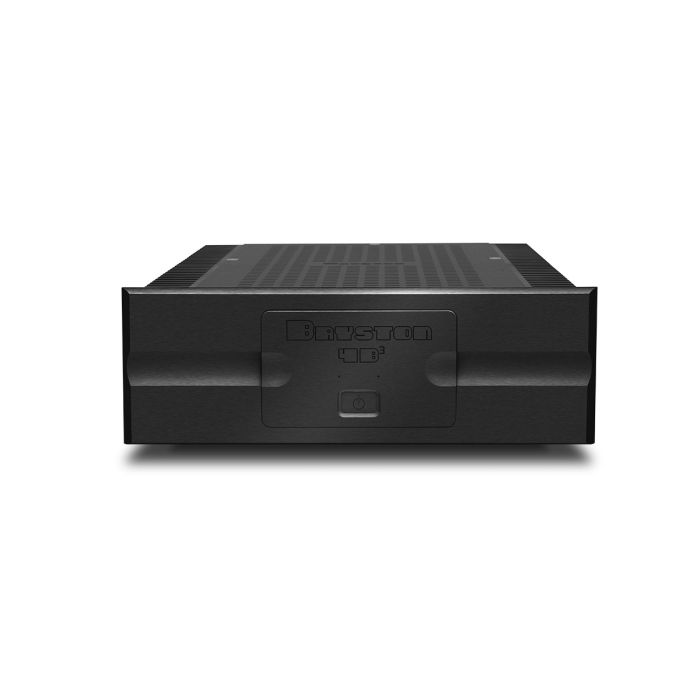

Bryston - 4B Cubed - Dual-Mono Stereo Power Amplifier
SKU
BRY-4B-CUBED-AMP
Please allow approximately 1-2 weeks for processing and shipping. For more information, please send us a message. Or, call 877-370-1972. Thank you.
Bryston - 4B Cubed - Dual-Mono Stereo Power Amplifier is available to buy in increments of 1
No further discounts or coupons apply.
FREE delivery OVER $35 (USA ONLY)
30-day return
Bryston - 4B Cubed - Dual-Mono Stereo Power Amplifier
The Bryston 4B Cubed is a high-current dual-mono stereo power amplifier developed to deliver substantial output, precise loudspeaker control, and transparent musical reproduction. As the sixth generation of Bryston’s long-running 4B platform, it provides 300 watts per channel into 8 Ohms and up to 500 watts per channel into 4 Ohms. Its output capability makes it suitable for a broad range of demanding floorstanding, bookshelf, and custom-installed loudspeakers.
Each channel operates with its own independent power supply and transformer, helping preserve stereo separation while reducing interaction between the left and right audio channels. Bryston’s patented Salomie input circuit is designed to lower noise and distortion ahead of the amplification stage, while selectable 23dB and 29dB gain settings simplify matching with different preamplifiers and source components. Balanced XLR and unbalanced RCA inputs provide flexible integration into both professional and residential audio systems.
The 4B Cubed uses passive convection cooling, eliminating the mechanical noise and maintenance associated with cooling fans. A microprocessor-controlled SoftStart sequence manages startup current, while standby consumption remains below 500mW and a DC trigger connection supports automated power control. Its machined aluminum enclosure is available with silver or black faceplates, and the optional Pro configuration adds rack mounting and independent rear-panel channel trim controls.
FEATURES:
- Dual-mono stereo power amplifier for high-performance audio systems
- Independent power supplies and transformers serve each audio channel
- Patented Salomie input circuit reduces noise and distortion
- Balanced XLR and unbalanced RCA audio inputs
- Selectable 23dB and 29dB gain settings
- Low-noise circuitry supports detailed and transparent reproduction
- Fully convection-cooled design eliminates noisy cooling fans
- Microprocessor-controlled SoftStart reduces startup current demand
- DC trigger connection supports automated system power control
- Machined and anodized aluminum enclosure provides strength and shielding
- Available with silver or black aluminum faceplates
- Available with 17" or 19" front-panel configurations
- 19" version includes front-mounted handles
- Optional Pro version includes rack mounting and channel trim controls
- Designed, engineered, and manufactured in Canada
SPECIFICATIONS:
| Product Type | Dual-Mono Stereo Power Amplifier |
|---|---|
| Amplifier Series | Cubed Series |
| Number of Channels | 2 |
| Circuit Configuration | Dual Mono with Independent Power Supplies and Transformers |
| Input Circuit | Patented Bryston Salomie Circuit |
| Output Power at 8 Ohms | 300W per Channel |
| Output Power at 4 Ohms | Up to 500W per Channel |
| Audio Inputs | Balanced XLR and Unbalanced RCA |
| Gain Settings | 23dB or 29dB |
| Frequency Response | Less Than 1Hz-100kHz, -3dB |
| THD+N | Less Than 0.005%, 20Hz-20kHz at Rated Power into 8 Ohms |
| RCA Noise | -112dB |
| XLR Noise | -117dB |
| Unbalanced Input Impedance | 7.5k Ohms |
| Balanced Input Impedance | 30k Ohms Positive; 6k Ohms Negative |
| Cooling | Passive Convection Cooling |
| Startup System | Microprocessor-Controlled SoftStart |
| Standby Power Consumption | Less Than 0.5W |
| Trigger Control | DC Trigger Input |
| Chassis Material | Machined and Anodized Aluminum |
| Faceplate Width | 17" or 19" |
| Dimensions (W x H x D) | 17" or 19" x 6.3" x 15.5" (431.8 or 482.6mm x 160mm x 393.7mm) |
| Dimensions with Front Handles (W x H x D) | 19.0" x 6.3" x 17.7" (449.5mm x 160mm x 450.9mm) |
| Weight | 42.0 lbs. (19kg) |
| Shipping Weight | 47.0 lbs. (21.3kg) |
| Warranty | 10 Years |
